Product Details:
|
| Product Name: | M50 Dth Bits | Color: | As Your Request |
|---|---|---|---|
| Air Pressure: | 10-15 Bar | Applications: | Water Well Drilling, Mining, Etc |
| Face Shape: | Flat, Convex, Concave | Diameter: | 5 1/8" 5 1/2" 6" 6 1/4" |
| Type: | Without Foot Valve | Keyword: | M50 Bit |
| High Light: | dth button bits,dth hammer bits |
||

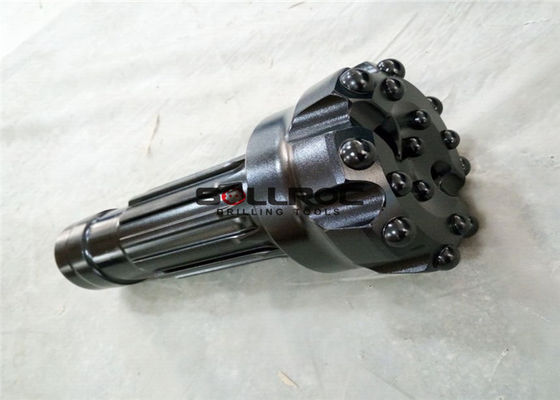

5" Atlas Copco Down The Hole Mission50 M50 DTH Button Drill Bits For Waterwell Drilling
Product specifications: Mission50 dth bits
| For 5" hammer DTH bits shank |
Bit Dia. | No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kg) |
Part No. | |
| mm | inch | ||||||
| DHD350R/COP54 | 133 | 5 1/4" | 2 | 7×φ16 | 6×φ14 | 15.0 | DHD350-133 |
| 140 | 5 1/2" | 2 | 7×φ18 | 7×φ14 | 16.0 | DHD350-140 | |
| 146 | 5 3/4" | 2 | 8×φ18 | 7×φ14 | 17.0 | DHD350-146 | |
| 152 | 6" | 2 | 8×φ18 | 8×φ14 | 17.5 | DHD350-152 | |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 18.5 | DHD350-165 | |
| SD5 | 133 | 5 1/4" | 2 | 7×φ16 | 6×φ14 | 15.5 | SD5-130 |
| 140 | 5 1/2" | 2 | 7×φ18 | 7×φ14 | 16.0 | SD5-140 | |
| 146 | 5 3/4" | 2 | 8×φ18 | 7×φ14 | 16.5 | SD5-146 | |
| 152 | 6" | 2 | 8×φ18 | 8×φ14 | 17.0 | SD5-152 | |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 19.0 | SD5-165 | |
| QL50 | 133 | 5 1/4" | 2 | 7×φ16 | 6×φ14 | 15.5 | QL50-130 |
| 140 | 5 1/2" | 2 | 7×φ18 | 7×φ14 | 16.0 | QL50-140 | |
| 146 | 5 3/4" | 2 | 8×φ18 | 7×φ14 | 16.5 | QL50-146 | |
| 152 | 6" | 2 | 8×φ18 | 8×φ14 | 17.0 | QL50-152 | |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 19.0 | QL50-165 | |
| Mission50 | 133 | 5 1/4" | 2 | 7×φ16 | 6×φ14 | 12.5 | M50-130 |
| 140 | 5 1/2" | 2 | 7×φ18 | 7×φ14 | 13.5 | M50-140 | |
| 146 | 5 3/4" | 2 | 8×φ18 | 7×φ14 | 14.0 | M50-146 | |
| 152 | 6" | 2 | 8×φ18 | 8×φ14 | 14.4 | M50-152 | |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 15.0 | M50-165 | |
| Hammers |
Bit Shank
|
Connection Thread | Suitable bit | Working pressure |
| 2" | BR2/HD25 | RD50 box | 70-90mm | 7-17.5 bar |
| 3" | DHD3.5/COP32/COP34/QL30/M30/
BR3/BR33/XL3/Mach303
|
API 2 3/8" Reg | 90-110mm | 10-15 bar |
| 4" |
DHD340/COP44/QL40/SD4/M40/
Mach44/TD40(COP44 gold)
|
API 2 3/8" Reg | 110-135mm | 10-25 bar |
| 5" | DHD350/COP54/QL50/SD5/M50 | API 2 3/8" Reg
API 3 1/2" Reg
|
135-155mm | 10-25 bar |
| 6" |
DHD360/COP64/QL60/SD6/
M60/TD60 (COP64 gold)
|
API 3 1/2" Reg | 155-190mm | 10-25 bar |
| 8" | DHD380/COP84/QL80/SD8/M80 | API 4 1/2“ Reg | 195-254mm | 10-25 bar |
| 10" | SD10/NUMA100 | API 6 5/8" Reg | 254-311mm | 10-25 bar |
|
12"
|
DHD1120/NUMA120/NUMA125 |
API 6 5/8" Reg
|
305-445mm |
10-25 bar
|
We can also provide related products RC hammers, RC bits, DTH button bits, ODEX, symmetric overburden systems, slide block drilling systems, etc and DTH drilling pipes for various thread API REG, API IF, BECO, etc
Product photos
Available series of DTH hammer:
high pressure DTH hammers
SD series hammer: SD 5, SD 6, SD 8, SD 12.
QL series hammer: QL 30, QL 40, QL 50, QL 60, QL 80.
DHD series hammers: DHD 3.5, DHD 340. DHD 350, DHD 360, DHD380.
Mission series hammers: M30, M40, M50, M60, M80.
Cop series hammers: Cop 32/34, Cop 42/44, Cop 54/64.
NUMA series hammers: Numa100, Numa120, Numa125
Down-the-hole rock tools (drilling tools) are rock drilling equipment which takes compressed air as power source to partially transfer impact power into drilling holes. An air distributing device in a top hammer controls a piston to move back and forth. An impact device arranged in the front of the top hammer transfers the impact powder to a down-the-hole bit to crush rocks.
• Our product range covers the most diverse applications in mining, natural resources exploration, water wells, quarries and civil works.
• Our products go from 3 to 25 inches drilling diameter.
A. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.
B. Smooth performance and long service lifeof HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
C. Low problem rate and easy to maintenancedue to simple, reliable and easy assemble and disassemble inner structure of hammer.
d. Easy to depart bit from hammer due to multi- Head thread connecting chuck and cylinder of hammer.
e. Interchangeable with DTH bit and drill pipe.
