Product Details:
|
| Product Name: | Cop64 Dth Drill Bits | Color: | Black Or Optional |
|---|---|---|---|
| Air Pressure: | 10-25 Bar | Applications: | Water Well Drilling, Mining, Rock Drilling |
| Face Shape: | Flat, Convex, Concave | Diameter: | 156mm,165mm,178mm,191mm,203mm |
| Connection Thread: | API 2 3/8" Reg | Size: | 6",6 1/2",7",7 1/2",8" |
| High Light: | dth hammer bits,atlas copco dth bits |
||

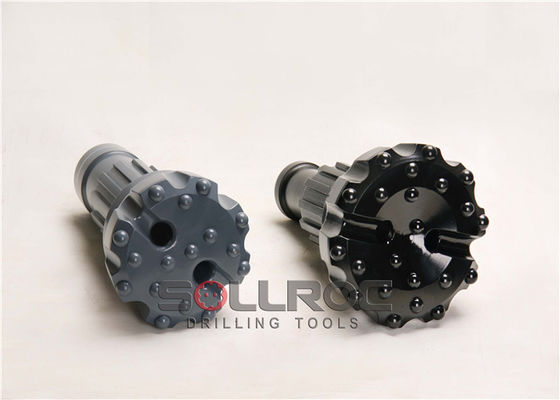

7" DTH Hammer Bits 178mm Cop64 DTH Bit Rock Drill Bits for Waterwell Drilling
Different face style makes DTH bits suitable for various rock conditions.
Flat face: This is an universal design, especially for hard and abrasive rock formation. So typically, flat face with hemi-spherical buttons design is the most popular choice.
Convex face: A classic design for soft to medium hard rock formation which is not so abrasive. This design have very excellent penetration rate but poor in hole deviation if rocks are hard.
Concave face: Medium hard to hard rock formations which is less abrasive and fractured. Especially for deep hole drilling, excellent control over hole deviation.
DGR face: A special design for hard or very hard rock conditions, double gauge row buttons provide very excellent ware-resistance and very longer life time. It is usually used for some bigger diameter DTH bits.
Besides, we are manufacturing the DTH bits with various shanks so they can be compatible with different DTH hammers.
Product specifications: Cop64 DTH bits
|
Bit Dia.(mm) |
Qty.× Button Dia.(mm) |
Qty.Air Holes |
Weight (kg) |
|
|
Outer |
Front |
|||
| 152 | 8×16 | 4×16+4×14 | 2 | 23.2 |
| 165 | 8×18 | 4×18+5×16 | 2 | 24.0 |
| 172 | 8×18 | 4×18+4×16 | 2 | 25.1 |
| 178 | 9×18 | 5×18+5×16 | 3 | 26.0 |
| 185 | 8×19 | 5×19+5×16 | 2 | 26.5 |
| 190 | 10×18 | 5×16+5×16 | 2 | 29.2 |
| 195 | 10×18 | 5×18+5×16 | 2 | 29.9 |
| 204 | 10×18 | 6×18+7×16 | 2 | 32.4 |
| Bit size | Shank type | Recommended DTH bits diameter |
| 3.5”/3” DTH hammer bits | COP34, DHD3.5, MISSION30, BR3 shank | 90mm~ 105mm |
| 4” DTH hammer bits | DHD340, QL40, MISSION40, SD4 shank | 110mm~ 130mm |
| 5” DTH hammer bits | DHD350, QL50, MISSION50, SD5 shank | 134mm~ 152mm |
| 6” DTH hammer bits | DHD360, QL60, MISSION60, SD6 shank | 152mm~ 203mm |
| 8” DTH hammer bits | DHD380, QL80, MISSION80, SD8 shank | 203mm~ 305mm |
| 12” DTH hammer bits | DHD112, SD12 and QL120 shank. | Available upon to customers’ request |
