FOCUS IN MANUFACTURING OF HIGH QUALITY DTH AND RC DRILLING TOOLS.
| Place of Origin: | China |
|---|---|
| Brand Name: | SOLLROC |
| Certification: | SGS |
| Model Number: | QL60 shank |
| Minimum Order Quantity: | 1 pc |
| Packaging Details: | Cartons + ply wood case (no plastic) |
| Delivery Time: | 3-4 weeks |
| Payment Terms: | , L/C, T/T, MoneyGram, D/P |
| Supply Ability: | 2500 set per month |
| Material: | High Quality Imported Steel | Advantage: | Fast Speed And Durble |
|---|---|---|---|
| Air Pressure: | 15-35 Bar | Size: | Six Inch |
| Bits Dia. Fitted: | 155mm- 203mm | Air Consuption: | 350-1006CFM |
| Applications: | Mining, Water Well Drilling, Blasting Drilling, Civil Engineering | Color: | Blank Or Optional |
| High Light: | numa dth hammers,water well drilling hammer |
||
Water Well Drilling Down The Hole Hammer 6 Inch Shank QL60
Features:
Valveless air distribution. More reliable.
Simple design of the piston. Long life.
More efficient energy transfer, fact drilling speed, lower air consumption and lower oil consumption.
Fewer internal parts, simple structure, long life, less failure and easier to maintain because all the parts are heat treated.
Easy to disassemble because the top sub, the drive chuck and the external cylinder are connected by multi-step thread.
Products specifications:
| Shank | QL60 |
| Length (less bit) | 1212mm |
| Outer diameter | 146-148mm |
| Top sub thread | API 3 1/2" REG pin |
| Weight (less bit) | 95kg |
| Hole range | 155mm-203mm |
| Working pressure | 10-35bar |
| Impact rate at 1.7 Mpa | 23Hz |
| Recommended rotation speed | 20-30 r/min |
| Air consumption at 7-14 bar | 350-1006 CFM |
DTH bits 155-203mm for above hammers can be available.
About us:
Sollroc developed a full range of products :DTH hammers and bits, RC hammers and bits RE, PR. MX series, ODEX system, Symmetrix system, DTH drill rods and top hammer drilling tools, etc.

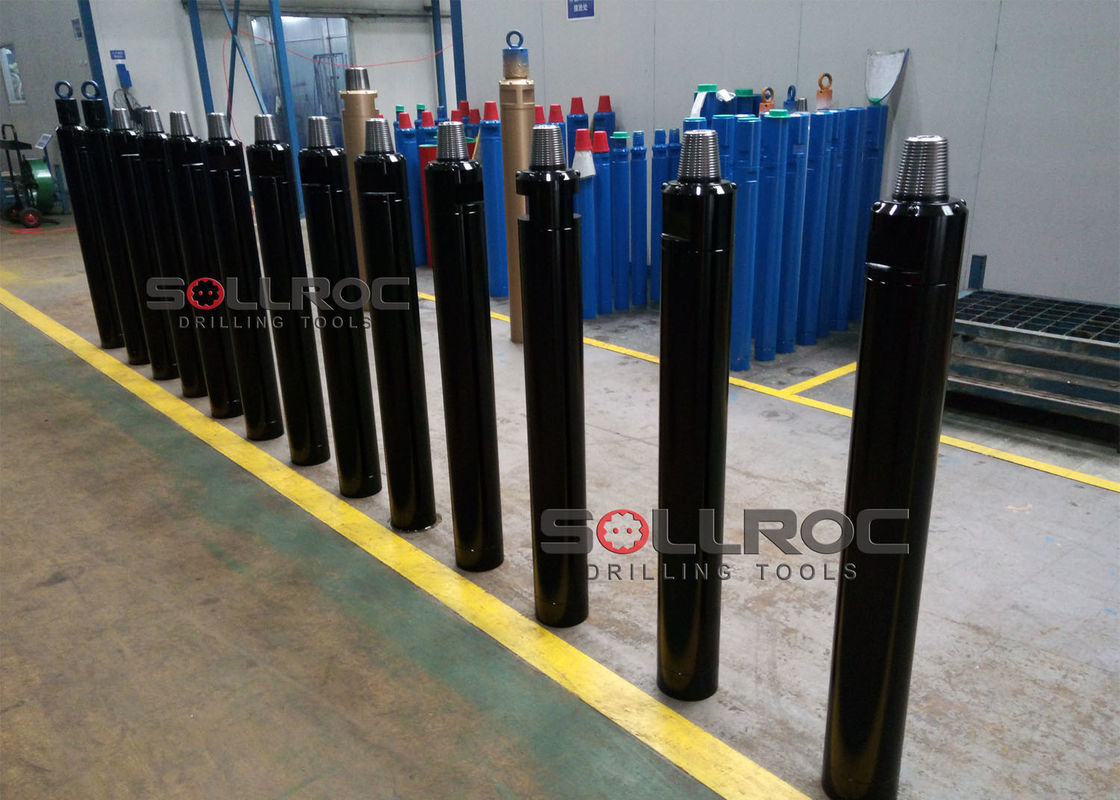

Products photoes
