Hard Formation Rc Bits Hole Drilling Tool Remet Or Metzke Connection

Hard Formation Rc Bits Hole Drilling Tool Remet Or Metzke Connection
Hard Formation Rc Bits Hole Drilling Tool Remet Or Metzke Connection Hard Formation Rc Bits Hole Drilling Tool Remet Or Metzke Connection

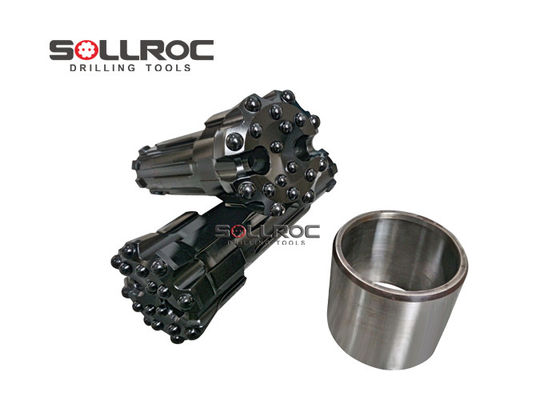

Large Image :  Hard Formation Rc Bits Hole Drilling Tool Remet Or Metzke Connection

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: RC4-E542/543-E531-E547-P40/P54
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 3-4 weeks
Supply Ability: 2000 sets per month
Contact Now

Hard Formation Rc Bits Hole Drilling Tool Remet Or Metzke Connection

Description
Color: Default Black, Others Is Optional Face Shape: Drop Center, Concave,flat, Convex
Bit Diameter: 5 3/8" 5 1/2" 5 5/8" 5 3/4" Material: Imported Steel And Quality Carbide
Applications: Exploration And Grade Control Quality: Quality Guarantee And After-sale Service
High Light:

reverse circulation drill bits

,

reverse circulation hammers



Hard Formation Reverse Circulation RC Drill Bit Remet or Metzke connection



RC bits specifications:
RC bits Model RC3-E531 for shank RE531

Diameter

No. x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
86 3 3/8 6 x 12mm 5 x 12mm 35 2 84 6.0 RC3-E531-86
89 3 1/2 8 x 12mm 5 x 12mm 35 2 87 6.1 RC3-E531-89
95 3 3/4 8 x 12mm 6 x 12mm 35 2 93 6.3 RC3-E531-95
102 4 8 x 12mm 6 x 12mm 35 2 100 6.5 RC3-E531-102


RC bits Model RC3.5-Y for shank RC3.5Y

Diameter

No. x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
92 3 5/8 6 x 14mm 6 x 12mm 35 2 90 6.1 RC3.5Y-92
95 3 3/4 6 x 14mm 6 x 12mm 35 2 93 6.3 RC3.5Y-95


RC bits Model RC4-E004 for shank RE004

Diameter

No x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
114 4 1/2 8 x 14mm 8 x 13mm 35 2 112 11.8 RC4-E004-114
118 4 5/8 8 x 14mm 8 x 13mm 35 2 116 12.0 RC4-E004-118
121 4 3/4 8 x 14mm 8 x 13mm 35 2 119 12.4 RC4-E004-121
127 5 8 x 14mm 8 x 13mm 35 2 125 12.8 RC4-E004-127


RC bits Model RC4.5-E542 for shank RE542

Diameter

No x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
121 4 3/4 8 x 14mm 8 x 13mm 35 2 119 10.7 RC4.5-E542-121
124 4 7/8 8 x 14mm 8 x 13mm 35 2 122 10.9 RC4.5-E542-124
127 5 8 x 14mm 8 x 14mm 35 2 125 11.2 RC4.5-E542-127
130 5 1/8 8 x 16mm 8 x 14mm 35 2 128 11.5 RC4.5-E542-130


RC bits Model RC4.5-E543 for shank RE543

Diameter

No x Button diameter

mm

 Button angle Flushing holes Shroud Dia mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
124 4 7/8 8 x 14mm 8 x 13mm 35 2 122 11.0 RC4.5-E543-124
127 5 8 x 14mm 8 x 14mm 35 2 125 11.2 RC4.5-E543-127
130 5 1/8 8 x 16mm 8 x 14mm 35 2 128 11.4 RC4.5-E543-130
133 5 1/4 8 x 16mm 9 x 14mm 35 2 131 11.7 RC4.5-E543-133


RC bits Model RC5-E545 for shank RE545

Diameter

No x Button diameter

mm

 Button angle Flushing holes Shroud Dia mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
124 4 7/8 8 x 14mm 8 x 13mm 35 2 122 11.0 RC5-E545-124
127 5 8 x 14mm 8 x 14mm 35 2 125 11.2 RC5-E545-127
133 5 1/4 8 x 16mm 9 x 14mm 35 2 131 11.7 RC5-E545-133
136 5 3/8 8 x 16mm 6x16+3x14 35 2 134 12.0 RC5-E545-136


RC bits Model RC5-P40 for shank PR40

Diameter

No x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No
mm inch Gauge Button Front Button
124 4 7/8 8 x 14mm 8 x 13mm 35 2 122 14.5 RC5-P40-124
127 5 8 x 14mm 8 x 14mm 35 2 125 14.7 RC5-P40-127
130 5 1/8 8 x 16mm 8 x 14mm 35 2 128 14.9 RC5-P40-130
133 5 1/4 8 x 16mm 6x14+3x14 35 2 131 15.0 RC5-P40-133
138 5 7/16 8 x 16mm 6x16+3x14 35 2 136 15.8 RC5-P40-138
140 5 1/2 8 x 16mm 6x16+3x14 35 2 138 16.0 RC5-P40-140


RC bits Model RC5.5-P52/P52R for shank PR52/PR52R

Diameter

No x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
133 5 1/4 8 x 16mm 6x14+3x14 35 2 131 16.9 RC5.5-P52-133
136 5 3/8 8 x 16mm 6x16+3x14 35 2 134 17.1 RC5.5-P52-136
140 5 1/2 8 x 16mm 6x16+3x14 35 2 138 17.2 RC5.5-P52-140
143 5 5/8 8 x 16mm 6x16+3x14 35 2 141 17.3 RC5.5-P52-143


RC bits Model RC5.5-E547 for shank RE547

Diameter

No x Button diameter

mm

 Button angle Flushing holes Shroud Dia mm

Weight

(kg)

 Part No
mm inch Gauge Button Front Button
136 5 3/8 8 x 16mm 6x16+3x14 35 2 134 14.2 RC5.5-E547-136
140 5 1/2 8 x 16mm 6x16+3x14 35 2 138 14.5 RC5.5-E547-140
143 5 5/8 8 x 16mm 6x16+3x14 35 2 141 14.7 RC5.5-E547-143
146 5 3/4 8 x 16mm 6x16+3x14 35 2 144 15.0 RC5.5-E547-146


RC bits Model RC5.5-P54/P54R for shank PR54/PR54R

Diameter

No x Button diameter

mm

 Button angle Flushing holes Shroud Dia mm

Weight

(kg)

 Part No
mm inch Gauge Buttons Front Buttons
136 5 3/8 8 x 16mm 6x16+3x14 35 2 134 19.0 RC5.5-P54-136
140 5 1/2 8 x 16mm 6x16+3x14 35 2 138 19.3 RC5.5-P54-140
143 5 5/8 8 x 16mm 6x16+3x14 35 2 141 19.5 RC5.5-P54-143
146 5 3/4 8 x 16mm 6x16+3x14 35 2 144 19.6 RC5.5-P54-146





 Quality warranty:

Our products are made of high quality steel and all spares parts are inspected strictly before shipping. We have quickly responses for your complaint and suggestion.


Package:
Using ply-wooden cases and pallet for package to protect the products and avoid the damagement during transportation. Also we can customize package according to your special requests.



Production time:

Generally need 15-25 days





Hard Formation Rc Bits Hole Drilling Tool Remet Or Metzke Connection 0



For more information please contact:

Changsha Sollroc Engineering Equipments Co., Ltd

Tel: 86-731-85551632 Fax: 86-731-85551635

Emai: info@sollroc.com

Skype: jessicaling1982

Skype: yongzhedrill

Website: www.sollroc.com
