Product Details:
|
| Material: | Alloy Steel | Shank: | SD5 |
|---|---|---|---|
| Diameter: | 130mm-156mm | Weight: | 15kg-17kg |
| MOQ: | 1 Piece | Package: | Carton+plywood Case |
| Production Time: | 20-25 Working Days | Color: | Black Or As Request |
| Highlight: | dth hammer bits,atlas copco dth bits |
||
Product description
Sollroc manufactures the high cost performance and most efficient Down-the-Hole (DTH) hammers and bits for the mining, construction and water well industries. Drill and blast engineers and water well contractors trust Sollroc’s DTH equipment because of the precision engineering and high standards of drilling efficiency built into each of our hammers and bits.
5 inch DTH bits parameters
| Bit diameter |
Flushing holes No.*Button Dia. mm |
No.*Button Dia. mm |
Weight (kg) |
Part No. |
||
| mm | inch | Gauge Buttons | Front Buttons | |||
| 130 | 5 1/8” | 2*Ф20 | 7*Ф16 | 7*Ф14 | 15 | HD555-130 |
| 135 | 5 1/4” | 2*Ф20 | 7*Ф18 | 7*Ф14 | 15.5 | HD55-135 |
| 140 | 5 1/2” | 2*Ф20 | 8*Ф16 | 8*Ф14 | 16 | HD55-140 |
| 146 | 5 3/4” | 2*Ф20 | 8*Ф18 | 8*Ф15 | 16.5 | HD55-146 |
| 150 | 5 7/8” | 2*Ф20 | 8*Ф18 | 8*Ф15 | 16.7 | HD55-150 |
| 152 | 6” | 2*Ф20 | 8*Ф18 | 8*Ф15 | 16.8 | HD55-152 |
| 156 | 6 7/8” | 2*Ф20 | 8*Ф18 | 8*Ф16 | 17 | HD55-156 |
Product features
Strict quality controlling
Selected high quality special steels and carbide
Produced by CNC machines
Simple and reasonable design, Low problem rate
Low air consumption, smooth drilling, Maximum impact power, High penetration rate
| Hammer inch | Bits diameter | Shank | |
| Metric | Inch | ||
| 1" | 64mm-70mm | 2 1/2"-2 3/4" | BR1 |
| 2" | 70mm-95mm | 2 3/4"-3 3/4" | MACH20/BR2 |
| 3" | 90mm-102mm | 3 1/2"-4" | COP32/COP34/MACH303 M30/DHD3.5/BR3 |
| 4" | 105mm-152mm | 4 1/8"-6" | COP44/DHD340/MACH44 SD4/M40/QL40 |
| 5" | 133mm-165mm | 5 1/4"-6 1/2" | COP54/DHD350R/MACH50 SD5/M50/QL50/BR5 |
| 6" | 152mm-254mm | 4 1/8"-10" | COP64/DHD360/SD6 M60/QL60/Bulroc BR6 |
| 8" | 203mm-330mm | 8"-13" | COP84/DHD380/SD8 QL80/M80 |
| 10" | 254mm-380mm | 10"-15" | SD10 NUMA100 |
| 12" | 305mm-508mm | 12"-20" | DHD1120/SD12 NUMA120/NUMA125 |
Product application and advantages
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering. it has the advantage of high flatness, smooth hole wall, high rigid of drill rod and hammer, independent of high axial thrust, no limit of drilling depth, low cost of devices and easiness to maintain. At the drilling hole of dia.105mm-dia.254mm, a plenty of the DTH drilling tools are used.

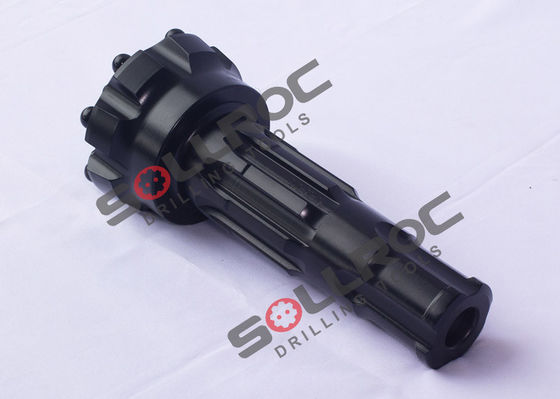

Detailed picture
Package and shipping
Package: carton+plywood case
Shipping: By sea, by air, by express, as your request.
Company information
Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.
