|Top Sub Thread:||API2 3/8"REG||Weight(less Bit):||39kg|
|Hole Range:||110mm-135mm||Name:||Down The Hole Hammer Drilling|
water well drilling hammer,
atlas copco hammer

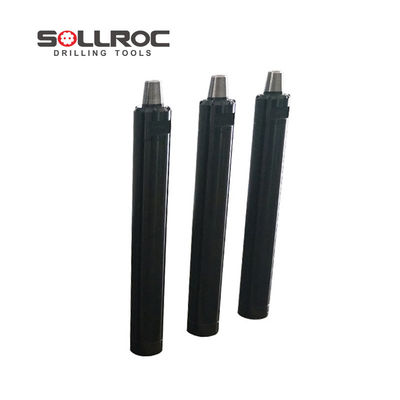

High Pressure DTH Air Drill QL40 is very popular in international mining drilling and rock excavation field.
DTH drilling tool is a kind of drilling system which uses compressed air as motivation, makes drilling impact motivation parts down the hole, to control the piston reciprocating motion by the distribution device in the hammer, and then impacts the DTH bit in the front of the hammer to transit the impacting power to the bit. The DTH bit in the front of the hammer breaks the rock to drill hole.
|Top sub thread||API 2 3/8”REG|
|Working pressure||1.0-2. 5Mpa|
|Impact rate at 1.4Mpa||27Hz|
|Recommended rotation speed||25-40r/min|
|Air consumption 1.0Mpa||6m³/min|
|Air consumption 1.8Mpa||10m³/min|
|Air consumption 2.4Mpa||15m³/min|
1. DTH hammer with backward-impact-damping design.
2. Capable to withstand solids content in drilling fluids.
3. Valveless air distribution. More reliable.
4. Simple design of the piston. Long life.
Sollroc offers a wide range of high performing drilling equipment designed for percussive drilling. In fact, we offer the most productive DTH hammers in the world. DTH drilling as a method is growing in popularity in both foundation works and in well and geothermal drilling. As the global redevelopment of urban areas continues, this trend comes with a challenge - accessing and drilling in populated areas without damaging the existing structures around the work site. It is obvious that our customers in geotechnical operations have very different demands on the equipment than those working with high production drilling in, for example, quarrying. The demand for application-tailored solutions is increasing.
Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.
