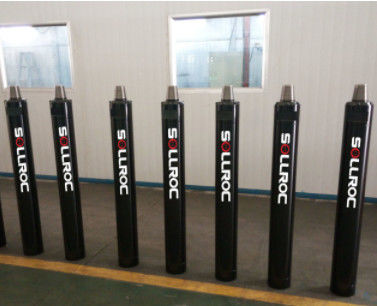

DHD340 Down The Hole Hammer , Borewell Hammer High Air Pressure Shank

DHD340 Down The Hole Hammer , Borewell Hammer High Air Pressure Shank
DHD340 Down The Hole Hammer , Borewell Hammer High Air Pressure Shank DHD340 Down The Hole Hammer , Borewell Hammer High Air Pressure Shank

Large Image :  DHD340 Down The Hole Hammer , Borewell Hammer High Air Pressure Shank

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: DHD340
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: 600
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 22-28 working days
Payment Terms: T/T,
Supply Ability: 10000pcs/month

DHD340 Down The Hole Hammer , Borewell Hammer High Air Pressure Shank

Description
Material: Special Steel Shank: DHD340
Length: 1030mm External Diameter: 99mm
Top Sub Thread: API2 3/8"REG Weight(less Bit): 39kg
Hole Range: 110mm-135mm Color: Black Or Your Required
Quality: Best Name: Dth Hammer
Application: Ore Mining,Crushing,underground Mining Teeth,Ground Engineering
High Light:

water well drilling hammer

,

atlas copco hammer





Product description




Product introduction:

A down-the-hole drill, usually called DTH is mainly a pneumatic powered rock or ground drill, in which the percussive hammer is located directly behind the drill bit, so the percussion mechanism follows the bit down into the drill hole. The drill pipes transmit the necessary feed force and rotation to the DTH hammer and bit, as well as compressed air for the DTH hammer. Air flushes cuttings up from the bottom of the hole. Drill pipes are added to the top of the drill string as the hole gets deeper. The piston directly strikes the impact surface of the bit, while the hammer casing gives guidance to the drill bit. The fast hammer impact breaks hard rock into small particles, which are blown up by the air exhaust from the DTH hammer.


DHD340 DTH hammer overview
shank DHD340
Length(less bit) 1030mm
External diameter 99mm
Top sub thread API 2 3/8”REG
Weight(less bit) 39kg
Hole range 110mm-135mm
Working pressure 1.0-2. 5Mpa
Impact rate at 1.4Mpa 27Hz
Recommended rotation speed 25-40r/min
Air consumption 1.0Mpa 6m³/min
Air consumption 1.8Mpa 10m³/min
Air consumption 2.4Mpa 15m³/min


















Product features

1.Precision machining using high quality materials ensures little breakdown and stable performance for a long time.

2.The adjustment of the plug in the hammer allows the air consumption to be controlled and the slime discharges smoothly done by maintaining the speed of air discharge in the hammer.

3.It has a built-in anti-return valve that can be used underwater.



Application

The principal drilling methods used in mines today are mechanical ones in which a drill drives cutting tools into rock by means of static or dynamic force. Percussion rock drills are the most commonly used equipment for drilling in small-scale surface or underground mining situations, whereas rotary crushing drills or down the hole drills (DTHs) are generally employed for mining in large-scale surface mines.


Structure picture
DHD340 Down The Hole Hammer , Borewell Hammer High Air Pressure Shank 0

Company information

Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.



Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.
