Product Details:
|
Material: | Special Steel | Shank: | QL60 |
---|---|---|---|
Length: | 1212mm | External Diameter: | 148mm |
Top Sub Thread: | API3 1/2"REG | Weight(less Bit): | 95kg |
Hole Range: | 155mm-190mm | Color: | Black Or Your Required |
Quality: | Best | Name: | Dth Hammer |
Application: | Ore Mining,Crushing,underground Mining Teeth,Ground Engineering | ||
Highlight: | numa dth hammers,atlas copco hammer |
Product description
Product introduction:

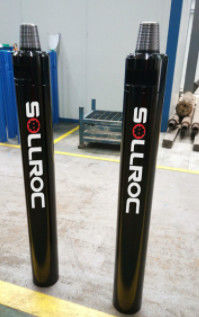

Sollroc manufactures the finest and most efficient Down-the-Hole (DTH) hammers and bits for the quarrying,mining, construction and water well industries. Drill and blast engineers and water well contractors trust Sollroc’s DTH equipment because of the precision engineering and high standards of drilling efficiency built into each of our hammers and bits.
shank | QL60 |
Length(less bit) | 1212mm |
External diameter | 148mm |
Top sub thread | API 3 1/2”REG |
Weight(less bit) | 95kg |
Hole range | 155mm-190mm |
Working pressure | 1.0-2. 5Mpa |
Impact rate at 1.4Mpa | 23Hz |
Recommended rotation speed | 20-30r/min |
Air consumption 1.0Mpa | 10m³/min |
Air consumption 1.8Mpa | 20m³/min |
Air consumption 2.4Mpa | 28.5m³/min |
Product features
1.Durable
The alloy steel is very strong and has long service life.
2.easy operation
Strong torque, head design rich for different geological needs.
3.Well made
Standard of work size. Reduce wear and tear to screws and extend service life.
4.Complete specifications
Different sizes and sizes. Meet the needs of different airlines.
Application
The principal drilling methods used in mines today are mechanical ones in which a drill drives cutting tools into rock by means of static or dynamic force. Percussion rock drills are the most commonly used equipment for drilling in small-scale surface or underground mining situations, whereas rotary crushing drills or down the hole drills (DTHs) are generally employed for mining in large-scale surface mines.
Sollroc , with more 10 years of experience ,is one of the professional manufacturer and supplier of high performance rock drilling tools like: DTH hammers and bits, RC hammers and bits, DTH drill rods and top hammer drilling tools. Our tools are widely used in different drilling applications including mining, quarrying, water well drilling, geotechnical industries and etc.
Sollroc is specialized in designing, manufacturing and developing equipments and accessories for standard models as well as the special needs of clients and provides them with the best suggestions and solutions. We practice strict and stringent quality control during manufacturing and adhered to recognized and approved quality control systems. Each of our products follows the quality requirements and procedures to ensure finished products are durable and superior up to standard.
