Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | Cop32 DTH Bit | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | Cop32 | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Size: | 3 15/16'' |
| Bit Diameter: | 100mm | Rock Hardness: | Granite, Limestone, Quartz, Etc |
| Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| High Light: | 3 15/16'' DTH Drill Bits,100mm DTH Drill Bits,Convex Face dth hammer bits |
||

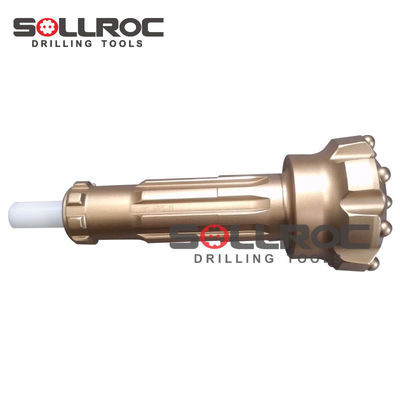

Cop32 100mm 3 15/16'' DTH Drill Bit With Convex Face For Water Well Drilling
Product description
Sollroc can manufacture Down-the-hole impact drills DTH drills with a diameter from 85mm to 1000mm. The spline type of the drill bit can be matched with our company hammer and other well-known brands (Such as DHD, COP, SD, QL, MACH, M series, BR, N series) Matching use.
Cop32 100mm 3 15/16'' DTH Drill Bit overview
| Bit Diameter | 100mm 3 15/16'' |
| No.* Button Dia. mm | Gauge Buttons 6*14mm |
| Front Buttons 5*13mm | |
| Weight (kg) | 4.6 |
Cop32 series DTH bit overview
| Diameter | Button Configure Dia*qty. | Bit design |
Weight (kg) |
||
| Metric | Inch | Guage button | Front button | ||
| 90mm | 3 1/2'' | 14mm*6 | 12mm*2+13mm*2 | Convex face | 4.3 |
| 90mm | 3 1/2'' | 14mm*6 | 12mm*4 | Flat face | 4.3 |
| 95mm | 3 3/4'' | 14mm*6 | 13mm*4 | Convex face | 4.4 |
| 100mm | 3 15/16'' | 14mm*6 | 13mm*2+13mm*3 | Convex face | 4.6 |
| 105mm | 4 1/8'' | 14mm*6 | 13mm*2+13mm*3 | Convex face | 4.8 |
| 105mm | 4 1/8'' | 13mm*8 | 12mm*6 | Flat face | 4.8 |
Product Advantages
1. 1. The overall structural design is concise to minimize the probability of failure
Face shape Features
Concave Face
1. Capable of drilling straighter holes in medium to hard rock which is broken or less consolidated
2. Offers high penetration rate in the above stated rock conditions
3. Has excellent air flushing characteristics
4. Predominant face style for majority of drilling conditions
Flat Face
1. Have a superior performance in hard, abrasive and broken rock conditions
2. They however have a slower penetration rate in comparison to a concave face bit
Convex Face
1. This face has been designed to offer high penetration rate in soft rock such as shale, limestone etc
2. They are recognized for having excellent capability for drilling into moderately consolidated rock conditions

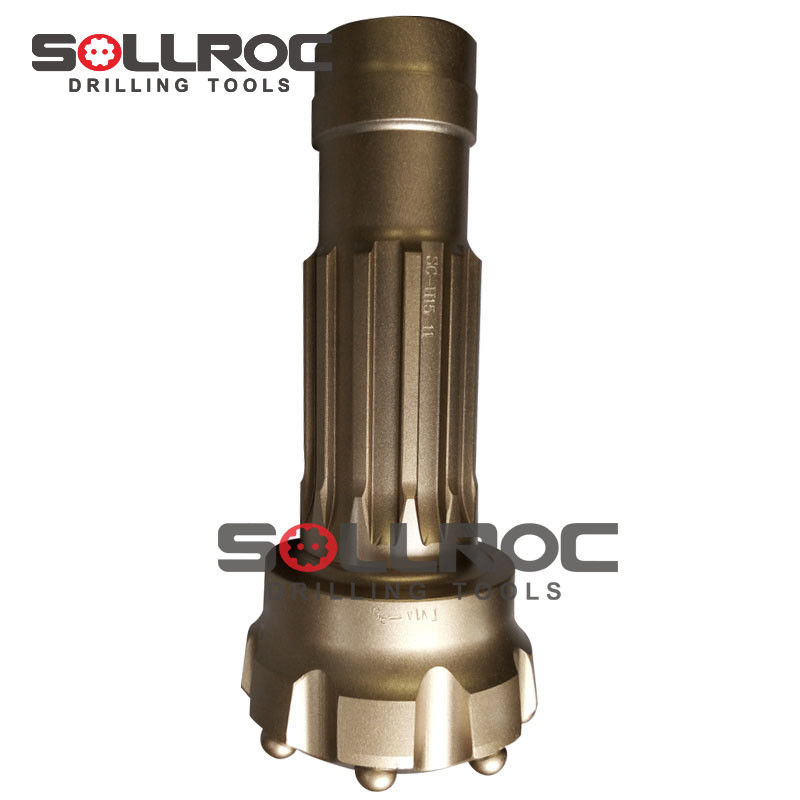

Structure picture
Product application
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
Company informaiton
At sollroc, customer satisfaction is our top priority. Our sales team takes a proactive approach in meeting customers’ needs. We take the time to get to know you and learn about your operations so we can better assist you. We strive to meet customers’ needs by supplying the tools and equipment you need when you need them, providing product support, and following through with excellent customer service every step of the way.
