Product Details:
|
Color: | Black Or You Wanted | Material: | High Carbon Steel |
---|---|---|---|
Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Hole Drilling In Mines,Hydrology,exploration And Gravel Stratum |
Formation: | Complicated Gravel Formation | Quality: | Best |
Diameter: | 5 1/8'' | Shrould: | 130mm |
High Light: | 130mm 5 1/8'' RC Bits,Shank SRC542 RC Bits,Shank SRC543 RC Drill Bit |

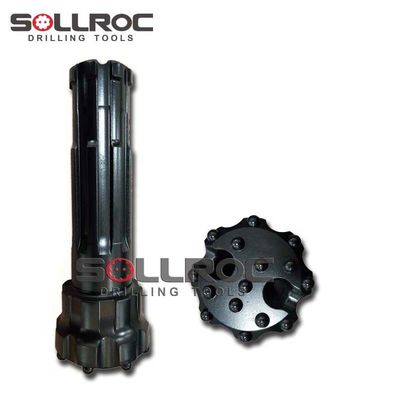

130mm 5 1/8'' Reverse Circulation RC Drill Bit With Shank SRC542 SRC543 SRC545 SRC040
Product Introduce:
RC drilling today produces samples of high quality and reliability. Dual-pipe RC drilling utilizes double drill rods where air is passed down the hole through the outside annulus and into the hammer. Drill cuttings are cleared from the bit by the air and travel up through the centre tube of the drill rods remaining free from contamination.
Specification:
SOLLROC RC BIT130MM WITH OTHER SHANK
Diameter |
Shank |
Buttons * button diameter |
Shroud diameter (mm) |
weight (kg) |
||
mm |
inch |
Gauge |
Centre |
|||
130 | 5 1/8 | SRC542 | 8*14mm | 9*14mm | 128 | 11.5 |
SRC543 |
8*14mm |
9*14mm |
128 |
11.5 |
||
SRC545 |
8*14mm |
9*14mm |
128 |
11.5 |
||
SRC40 | 8*14mm | 9*14mm | 128 | 14.9 |
Adavantages:
1.The samples extracted by RC drilling are reliable and free of contaminants,
2.The method is timely and cost-efficient,
3.It is well-suited for difficult terrains,
4.It has high penetration rates
5.It has minimal environmental impact
6.Drills faster through soft formations with less blockages
7.Drills straighter through consolidated and unconsolidated
Basics of Reverse Circulation Drilling:
(1) RC drilling uses rods with inner and outer tubes, the drill cuttings are returned to surface inside the rods. The drilling mechanism is a pneumatic reciprocating piston known as a hammer driving a tungsten-steel drill bit.
(2) RC drilling utilizes much larger rigs and machinery and depths of up to 500 meters are routinely achieved. RC drilling ideally produces dry rock chips, as large air compressors dry the rock out ahead of the advancing drill bit.
(3) RC drilling is slower and costlier but achieves better penetration than RAB or air core drilling; it is cheaper than diamond coring and is thus preferred for most mineral exploration work.
(4) Reverse circulation is achieved by blowing air down the annulus of the rod, the differential pressure creating air lift of the water and cuttings up the inner tube which is inside each rod. It reaches the deflector box at the top of the drill string then moves through a sample hose which is attached to the top of the cyclone.
The drill cuttings travel around the inside of the cyclone until they fall through an opening at the bottom and are collected in a sample bag. For any drill hole there will be a large number of sample bags, each one marked to record the location and drilling depth that the sample was obtained.
The collected series of sample bag cuttings are later taken for analysis to determine the mineral composition of the drill hole. The analysis results of each individual bag represents the mineral composition at a particular sample point in the drill hole. Geologists can then survey the drilled ground analysis and make decisions about the value of the overall mineral deposit.

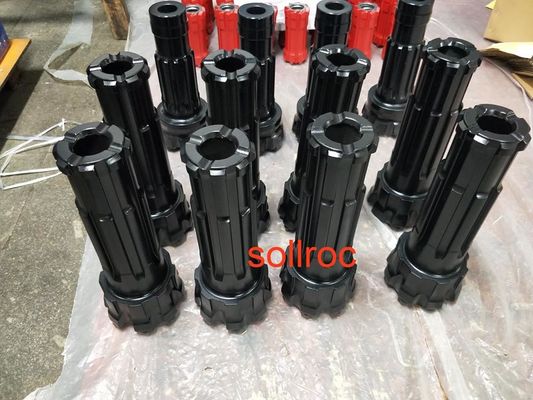

Photo:
About us:
SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
Delivery Way:
By Air, By express or By Sea
Package :
Ply-wooden cases + pallet
