High Penetration Rates SRC052 RC Rock Drill Bits For Grade Control

High Penetration Rates SRC052 RC Rock Drill Bits For Grade Control
High Penetration Rates SRC052 RC Rock Drill Bits For Grade Control
High Penetration Rates SRC052 RC Rock Drill Bits For Grade Control High Penetration Rates SRC052 RC Rock Drill Bits For Grade Control High Penetration Rates SRC052 RC Rock Drill Bits For Grade Control

Large Image :  High Penetration Rates SRC052 RC Rock Drill Bits For Grade Control

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: RC bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month

High Penetration Rates SRC052 RC Rock Drill Bits For Grade Control

Description
Color: Black Or You Wanted Material: High Carbon Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Hole Drilling In Mines,Hydrology,exploration And Gravel Stratum
Formation: Complicated Gravel Formation Quality: Best
Diameter: 133mm-152mm
High Light:

SRC052 RC Rock Drill Bits

,

Diameter 152mm Rock Drill Bits

,

High Penetration Rates RC Drill Bit

High Penetration Rates SRC052  RC Rock Drill Bit For Grade Control





Product Introduce:

RC, or reverse circulation, drilling is a tried and true drilling method in certain circumstances. Drillers usually use it on large-diameter holes because it is faster and easier to clean the hole. The fluid and cuttings flow up the drill pipe and down the annulus. In softer formations, this causes less washout and makes sampling faster and more accurate because cuttings are not contaminated by sloughing formation off the hole walls. They also come up the drill pipe very fast, giving an accurate formation log.



Specification:

SRC052 series drill bit specification

Drill bit shank

Bit diameter

(mm)

Guage Front Center Recommend shroud weight (kg)
buttons buttons buttons
SRC052 133 8×φ16 6×φ14 3×φ14 131 16.8
135 8×φ16 6×φ16 3×φ14 133 17
137 8×φ16 6×φ16 3×φ14 135 17.1
140 8×φ16 6×φ16 3×φ14 138 17.2
143 8×φ16 6×φ16 3×φ14 141 17.3
146 8×φ16 6×φ16 3×φ14 144 17.6
152 8×φ16 6×φ16 4×φ14 150 17.8



SRC052 Hammer specification


Shank

Length Weight External diameter Bit hole range Connect thread Working pressure Impact rate at 2.4Mpa Recommend rotation speed

SRC052

1227mm 68.5kgs 121mm 133-152mm

4''/4.5" Remet
/Metzke

1.5-3.5Mpa 35Hz 25-40rpm



Adavantages:

1.High penetration rates
2.Samples are high quality and reliable
3.Modest environmental impact
4.Timely and cost-effective
5.Well-suited to harsh environments





Basics of Reverse Circulation Drilling:
(1) RC drilling uses rods with inner and outer tubes, the drill cuttings are returned to surface inside the rods. The drilling mechanism is a pneumatic reciprocating piston known as a hammer driving a tungsten-steel drill bit.
(2) RC drilling utilizes much larger rigs and machinery and depths of up to 500 meters are routinely achieved. RC drilling ideally produces dry rock chips, as large air compressors dry the rock out ahead of the advancing drill bit.
(3) RC drilling is slower and costlier but achieves better penetration than RAB or air core drilling; it is cheaper than diamond coring and is thus preferred for most mineral exploration work.
(4) Reverse circulation is achieved by blowing air down the annulus of the rod, the differential pressure creating air lift of the water and cuttings up the inner tube which is inside each rod. It reaches the deflector box at the top of the drill string then moves through a sample hose which is attached to the top of the cyclone.
The drill cuttings travel around the inside of the cyclone until they fall through an opening at the bottom and are collected in a sample bag. For any drill hole there will be a large number of sample bags, each one marked to record the location and drilling depth that the sample was obtained.
The collected series of sample bag cuttings are later taken for analysis to determine the mineral composition of the drill hole. The analysis results of each individual bag represents the mineral composition at a particular sample point in the drill hole. Geologists can then survey the drilled ground analysis and make decisions about the value of the overall mineral deposit.



Photo:

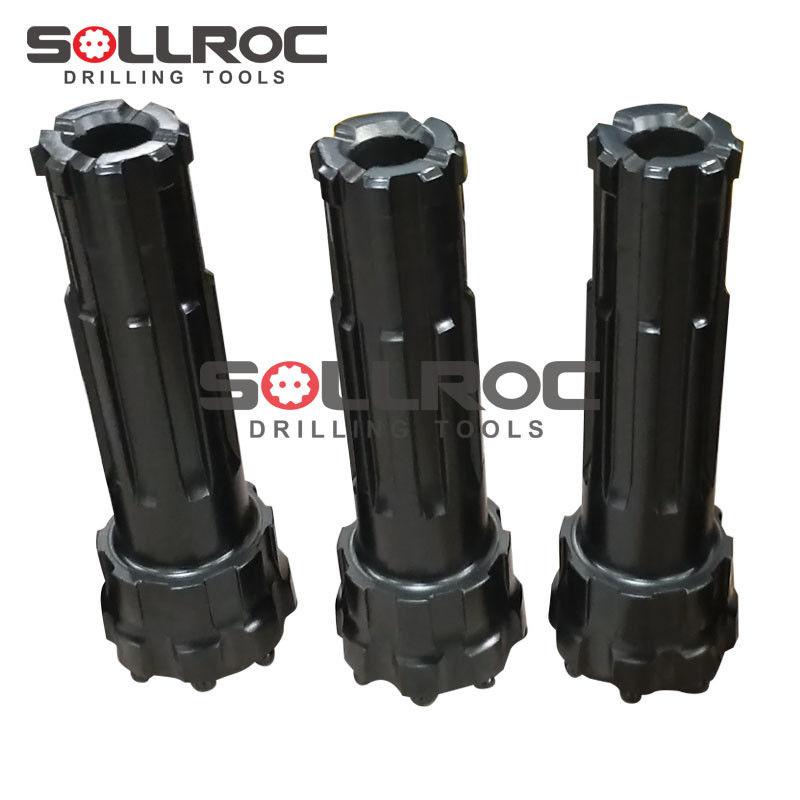

High Penetration Rates SRC052 RC Rock Drill Bits For Grade Control 0

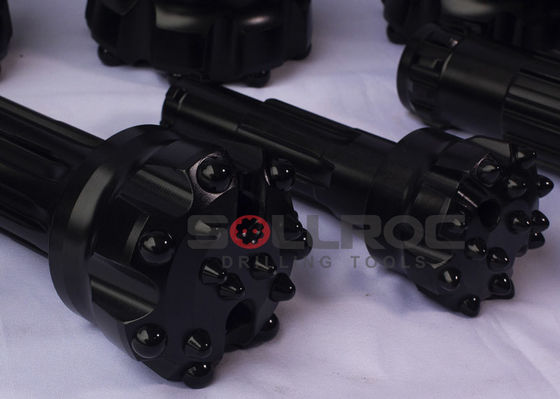

High Penetration Rates SRC052 RC Rock Drill Bits For Grade Control 1



About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.



Delivery Way:

By Air, By express or By Sea



Package :

Ply-wooden cases + pallet
