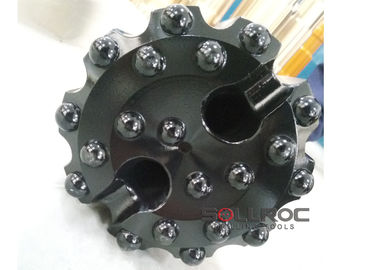

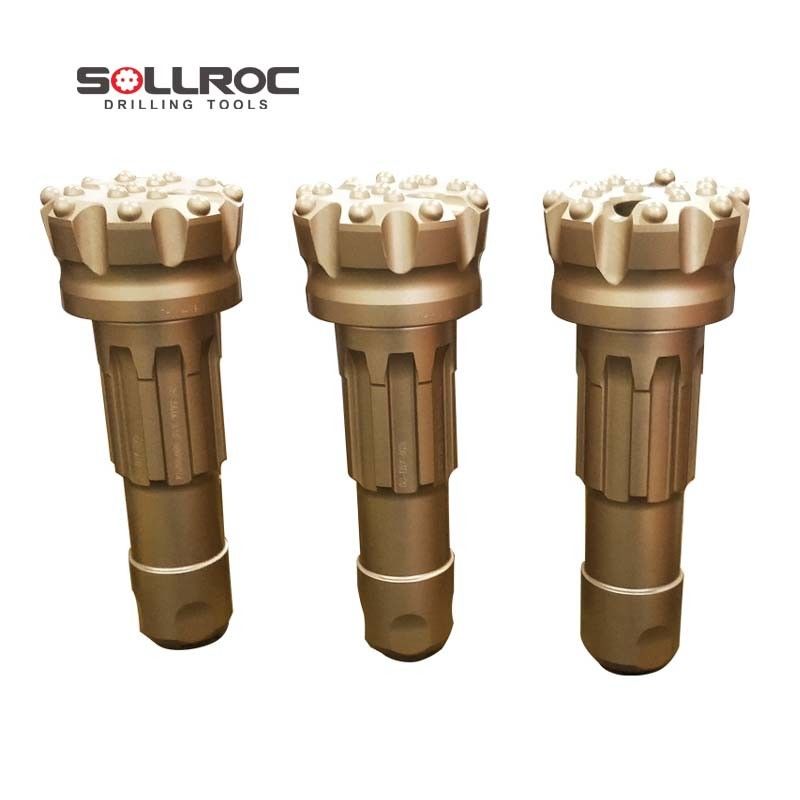

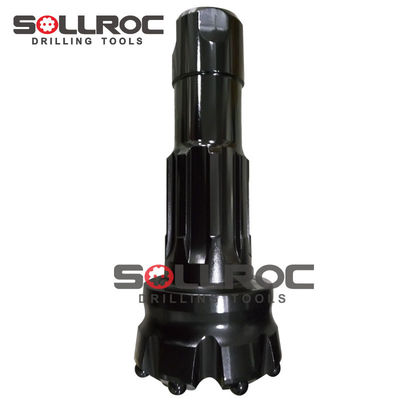

DHD360 Shank 165mm 3 1/2" DTH Drill Bits For Mining

DHD360 Shank 165mm 3 1/2" DTH Drill Bits For Mining
DHD360 Shank 165mm 3 1/2" DTH Drill Bits For Mining DHD360 Shank 165mm 3 1/2" DTH Drill Bits For Mining DHD360 Shank 165mm 3 1/2" DTH Drill Bits For Mining DHD360 Shank 165mm 3 1/2" DTH Drill Bits For Mining

Large Image :  DHD360 Shank 165mm 3 1/2" DTH Drill Bits For Mining

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: 178mm
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

DHD360 Shank 165mm 3 1/2" DTH Drill Bits For Mining

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: 178mm DTH Bit Rock Formation: Granite, Limestone, Quartz, Etc
Shank: DHD,Cop,QL,Mission,SD Advantage: Hign Abrasion Resistance
Color: Black Or As Request Size: 3 1/2"
Bit Diameter: 165mm Rock Hardness: Granite, Limestone, Quartz, Etc
Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry
High Light:

3 1/2" DTH Drill Bits

,

Shank 165mm DTH Drill Bits

,

DHD360 mining drill bits

DHD360 Shank 165mm-203mm Long Service Life DTH Drill Bit For Mining



Product description

Sollroc is one the professional manufacturer and supplier of high performance rock drilling tools like DTH Hammers and Bits. RC Hammers and Bits, DTH drilling pipes and Top Hammer Drilling Tools.

Our tools are widelyused in different drilling applications including mining,quarrying, water well drilling, geotechnical industries and etc.

In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.



178mm DTH Drill Bit overview

For 6" hammer
DTH bits shank
Bit Dia.
(mm)
No.
Air Holes
Gauge
Buttons
Front
Buttons
Weight
(Kg)
Part No.
mm inch
DHD360/COP64 152 6" 2 8×φ16 8×φ16 26.0 DHD360-152
165 6 1/2" 2 8×φ18 8×φ16 28.0 DHD360-165
178 7" 2 8×φ18 8×φ18 30.5 DHD360-178
190 7 1/2" 3 9×φ18 9×φ16 34.0 DHD360-190
203 8" 3 9×φ18 9×φ18 36.0 DHD360-203
SD6 152 6" 2 8×φ16 8×φ16 26.0 SD6-152
165 6 1/2" 2 8×φ18 8×φ16 28.0 SD6-165
178 7" 2 8×φ18 8×φ18 31.0 SD6-178
190 7 1/2" 3 9×φ18 9×φ16 34.0 SD6-190
203 8" 3 9×φ18 9×φ18 36.0 SD6-203
QL60 152 6" 2 8×φ16 8×φ16 25.0 QL60-152
165 6 1/2" 2 8×φ18 8×φ16 27.0 QL60-165
178 7" 2 8×φ18 8×φ18 28.5 QL60-178
190 7 1/2" 3 9×φ18 9×φ16 31.0 QL60-190
203 8" 3 9×φ18 9×φ18 33.0 QL60-203
Mission60 152 6" 2 8×φ16 8×φ16 22.0 M60-152
165 6 1/2" 2 8×φ18 8×φ16 23.0 M60-165
178 7" 2 8×φ18 8×φ18 24.0 M60-178
190 7 1/2" 3 9×φ18 9×φ16 25.0 M60-190
203 8" 3 9×φ18 9×φ18 28.0 M60-203




Product Advantages:

1. Low noise, small vibration,
2. Large torque, multi-function,
3. Fast speed of bore forming



Face shape Features

Concave Face

1. Capable of drilling straighter holes in medium to hard rock which is broken or less consolidated

2. Offers high penetration rate in the above stated rock conditions

3. Has excellent air flushing characteristics

4. Predominant face style for majority of drilling conditions

Flat Face

1. Have a superior performance in hard, abrasive and broken rock conditions

2. They however have a slower penetration rate in comparison to a concave face bit

Convex Face

1. This face has been designed to offer high penetration rate in soft rock such as shale, limestone etc

2. They are recognized for having excellent capability for drilling into moderately consolidated rock conditions



Product application

At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.



DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.

DHD360 Shank 165mm 3 1/2" DTH Drill Bits For Mining 0
