SD Shank DTH Hammer With Working Pressure 2.5Mpa

SD Shank DTH Hammer With Working Pressure 2.5Mpa
SD Shank DTH Hammer With Working Pressure 2.5Mpa
SD Shank DTH Hammer With Working Pressure 2.5Mpa SD Shank DTH Hammer With Working Pressure 2.5Mpa SD Shank DTH Hammer With Working Pressure 2.5Mpa SD Shank DTH Hammer With Working Pressure 2.5Mpa SD Shank DTH Hammer With Working Pressure 2.5Mpa

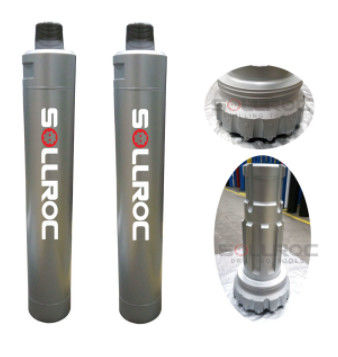

Large Image :  SD Shank DTH Hammer With Working Pressure 2.5Mpa

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SD
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

SD Shank DTH Hammer With Working Pressure 2.5Mpa

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: DTH Hammer Rock Formation: Granite, Limestone, Quartz, Etc
Shank: SD Advantage: Hign Abrasion Resistance
Color: Black Or As Request Rock Hardness: Granite, Limestone, Quartz, Etc
Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry
High Light:

SD Shank DTH Hammer

,

2.5Mpa DTH Hammer

,

SD Shank Down The Hole Hammer

SD Shank Hammer From 4''-12'' With Working Pressure 1.0-2.5Mpa Use For Quarrying



Product description

The DTH Hammer method provides one of the most efficient and versatile ways of drilling in a wide variety of rock conditions for many different applications. It provides fast penetration even in the hardest rock with constant speed throughout the length of the bore hole with the added benefits of accuracy and alignment to give good clean usable holes. DTH does not rely on heavy machines with fast rotational speeds or heavy down-thrusts; it only requires that the hammer be subjected to sufficient thrust to initiate the percussive operation and that there is the appropriate amount of rotational speed, usually around 28 to 40rpm, to relocate the drill bit on the rock face to produce the optimum size of cutting and minimal dust production. Performance, reliability, minimal spares usage, long service life and overall cost effectiveness are the hallmarks of a well-designed and manufactured ‘World Class’ DTH hammer that brings benefits to both the driller and the operating company – it is important to go for quality and not price when making the choice to purchase your DTH hammer.



Product Advantages:

1.Suitable for all types of rock (except clay)
2.Greater versatility in terms of hole sizes
3.Low capital outlay
4.Simple and easy to operate



DTH Hammers Specification:

Model: SD4, SD5, SD6, SD8, SD10, SD12

  SD4 SD5 SD6 SD8 SD10 SD12
Length(less bit) 1084mm 1175mm 1261mm 1463mm 1502mm 1880mm
Weight (less bit) 40.5kg 72.5kg 100.0kg 192.0kg 290.0kg 487.0kg
External diameter 99mm 125mm 142mm 180mm 225mm 275mm
Bits shank SD4 SD5 SD6 SD8 SD10 SD12
Bits diameter 105-135mm
4 1/8" - 5 1/8"

130-156mm
5 1/8" - 6 1/8"
152-203mm
6" - 8"
200-279mm
7 7/8" - 11"
254-330mm
10" - 13"
305-381mm
12" - 15"
Connection thread API 2 3/8" Reg API 3 1/2" Reg API 3 1/2" Reg API 4 1/2" Reg API 4 1/2" Reg
API 5 1/2" Reg
API 6 5/8" Reg
Air pressure 1.0-2.5 Map 1.0-25.Mpa 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa



Before beginning to drill, there are several factors that you should know:
1. Hole Size:
In most instances, the outside diameter of the hammer closet to the hole size being drilled should be used for most efficient drilling. This reduces the instance of the collapse and makes cleaning the hole easier. One needs to take into account that there must be sufficient annular area around the hammer to pass the drilled cuttings. This normally will supply the most efficient operating conditions.
2. Air consumption:
The amount of compressed air available must be taken into consideration when using a down hole hammer. Different size hammers require different volumes and pressures in order to properly operate. Generally, as the size of the hammer increases, higher volume and lower pressure is needed for peak performance. Be sure to refer to the air consumption chart.
3. Big capacities:
The larger the bit and hammer, the greater the rotational Torque and feed/pull back requirements become. Do not exceed the drill rigs Capacity.



Product application

At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.



DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.

SD Shank DTH Hammer With Working Pressure 2.5Mpa 0
