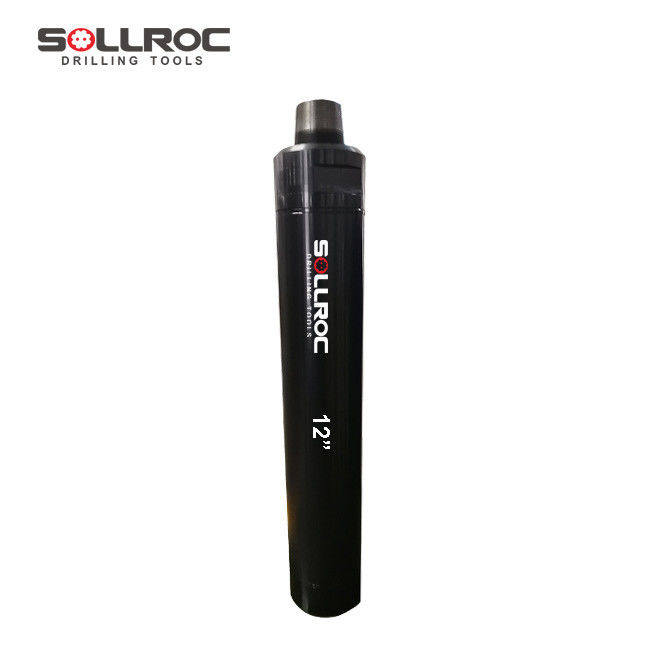

Length 1880mm SD12 Shank Down The Hole Hammer For Construction

Length 1880mm SD12 Shank Down The Hole Hammer For Construction
Length 1880mm SD12 Shank Down The Hole Hammer For Construction
Length 1880mm SD12 Shank Down The Hole Hammer For Construction Length 1880mm SD12 Shank Down The Hole Hammer For Construction Length 1880mm SD12 Shank Down The Hole Hammer For Construction Length 1880mm SD12 Shank Down The Hole Hammer For Construction Length 1880mm SD12 Shank Down The Hole Hammer For Construction

Large Image :  Length 1880mm SD12 Shank Down The Hole Hammer For Construction

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SD12
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

Length 1880mm SD12 Shank Down The Hole Hammer For Construction

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: DTH Hammer Rock Formation: Granite, Limestone, Quartz, Etc
Shank: SD12 Advantage: Hign Abrasion Resistance
Color: Black Or As Request Rock Hardness: Granite, Limestone, Quartz, Etc
Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry
High Light:

1880mm Down The Hole Hammer

,

SD12 Shank Down The Hole Hammer

,

sd12 shank dth hammer

12inch Shank SD12 Efficient Down-the-Hole (DTH) Hammers For Construction



Product description

We are one of the leading manufacturers, suppliers and exporters of dth hammer. Our products are used in Water Drilling, Mining, Tunneling, Quarrying And Construction Industries. Our flawless range of Rock Drilling Tools is appreciated for durability, high performance, dimensional accuracy, corrosion resistance and long service life. Our products are suitable for all the Bit Shanks of popular brands internationally. Our organization is engaged in offering an assortment of DTH Hammers to the clients. These Hammers are accurately designed as per the requirements of our clients. DTH Hammers we offer are created using quality parts by our experienced quality control team.



Product Advantages:

1.High Performance
2.Dimentional Accuracy
3.Corrosion resistant
4.Easy maintenance
5.Reasonable Prices



DTH Hammers Specification:

Model:SD12

  SD12
Length(less bit) 1880mm
Weight (less bit) 487.0kg
External diameter 275mm
Bits shank SD12
Bits diameter 305-381mm
12" - 15"
Connection thread API 6 5/8" Reg
Air pressure 1.0-2.5Mpa



Before beginning to drill, there are several factors that you should know:
1. Hole Size:
In most instances, the outside diameter of the hammer closet to the hole size being drilled should be used for most efficient drilling. This reduces the instance of the collapse and makes cleaning the hole easier. One needs to take into account that there must be sufficient annular area around the hammer to pass the drilled cuttings. This normally will supply the most efficient operating conditions.
2. Air consumption:
The amount of compressed air available must be taken into consideration when using a down hole hammer. Different size hammers require different volumes and pressures in order to properly operate. Generally, as the size of the hammer increases, higher volume and lower pressure is needed for peak performance. Be sure to refer to the air consumption chart.
3. Big capacities:
The larger the bit and hammer, the greater the rotational Torque and feed/pull back requirements become. Do not exceed the drill rigs Capacity.



Product application

At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.



DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.

Length 1880mm SD12 Shank Down The Hole Hammer For Construction 0


Company informaiton

At sollroc, customer satisfaction is our top priority. Our sales team takes a proactive approach in meeting customers’ needs. We take the time to get to know you and learn about your operations so we can better assist you. We strive to meet customers’ needs by supplying the tools and equipment you need when you need them, providing product support, and following through with excellent customer service every step of the way.
