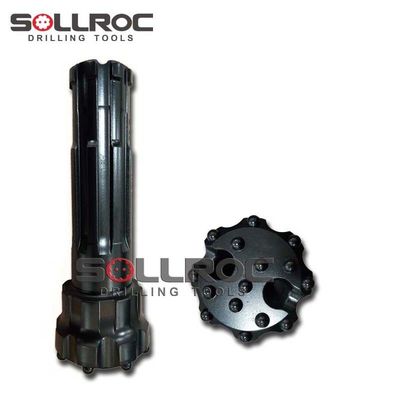

Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling

Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling
Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling
Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling

Large Image :  Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: 4.5'' RC Hammer
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month

Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling

Description
Color: Black Or You Wanted Material: High Carbon Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Shank: SRC543
High Light:

SRC543 Carbide Drill Bits

,

Reverse Circulation Carbide Drill Bits

,

SRC543 water well bits

Reverse Circulation SRC543 Carbide Drill Bit With Black Color For Water Well Drilling



Product Introduce:

R.C. Drilling,referred to as "Center Sample Recovery" or "Dual Wall Drilling", employs a Dual Wall Pipe where the drilling medium, normally high pressure air,is passed between the outer and inner tubes down to the face of the drilling bit where it is returned up the centre tube along with the sample cut by the drill bit.

This reverse circulation drill bits are widely used in the following applicaiton field: Geologic exploration samples, Oil wells and ore mining, etc. And it's specifically designed to work with RC Hammers.


Technical Parameters

RC bits Model SRC543

Diameter No x Button diameter
mm
Button angle Flushing holes Shroud Dia mm Weight
(kg)
Part No.
mm inch Gauge Button Front Button
124 4 7/8 8 x 14mm 8 x 13mm 35 2 122 11.0 SRC543-124
127 5 8 x 14mm 8 x 14mm 35 2 125 11.2 SRC543-127
130 5 1/8 8 x 16mm 8 x 14mm 35 2 128 11.4 SRC543-130
133 5 1/4 8 x 16mm 9 x 14mm 35 2 131 11.7 SRC543-133




Adavantages:

1. High drilling efficiency;
2. Timely sampling and high rate of adoption are conducive to accurately assessing the stratum;
3. Using higher grade carbides for longer life;
4. Minimizes hole erosion in fragile formations
5. Drills faster through soft formations with less blockages
6. Drills straighter through consolidated and unconsolidated formations


Working principle
The on-board compressor delivers power to a pneumatic reciprocating piston. The piston, in turn, drives a tungsten-steel drill bit which is purpose designed to be able to crush hard rock.
Similar to air core drilling, drill cuttings are returned to surface inside rods. We achieve this through the use of dual wall drill rods: an outer drill rod with an inner tube. When compressed air is blown through the rod, the volume displaces the air, lifting the samples to the surface.
Once cuttings reach a diverter at the top of the hole, they’re moved through a hose and around the cyclone, which slows the sample down. From the cyclone the sample goes over a splitter that delivers a percentage of the entire sample into a sample bag. The exploration drilling team then collect the samples aligned to the hole depth and lay them out for the client to log, and then transport to the lab for assay.

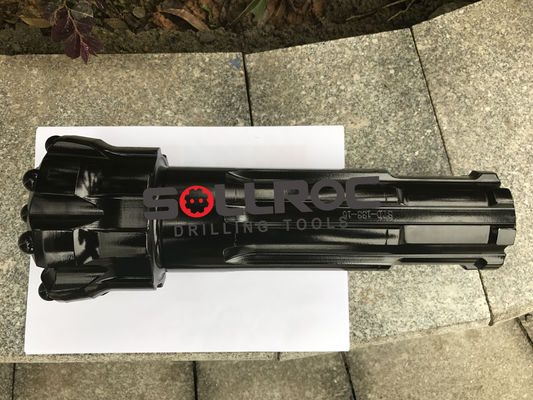

Detailed Photo:

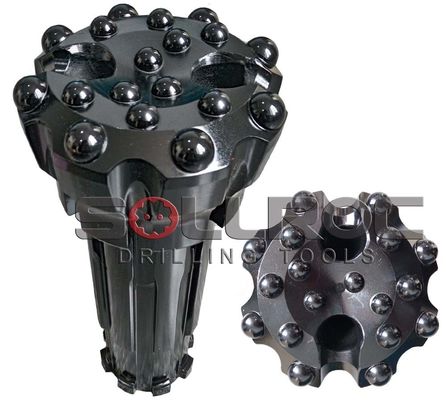

Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling 0

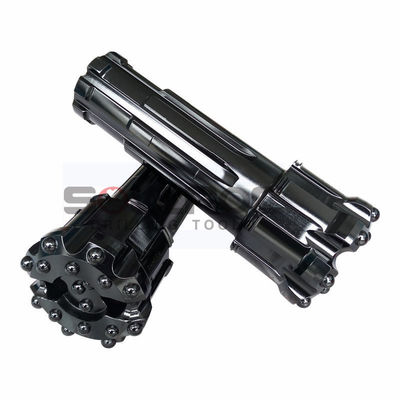

Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling 1

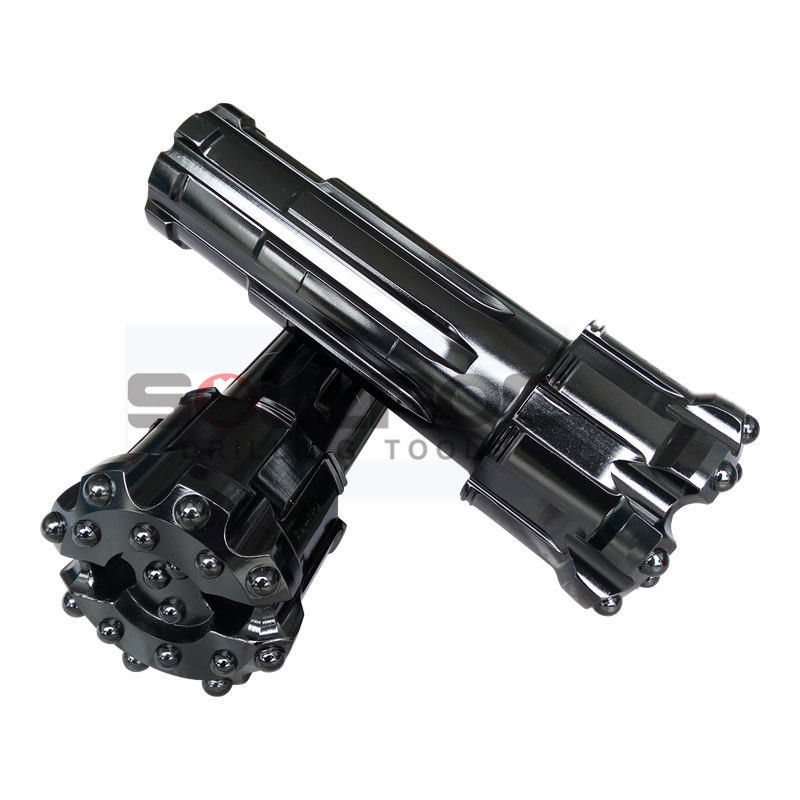

Reverse Circulation SRC543 Carbide Drill Bits For Water Well Drilling 2

About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.



Delivery Way:

By Air, By express or By Sea
