Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | DTH Hammer | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | DHD,Cop,QL,Mission,SD | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Rock Hardness: | Granite, Limestone, Quartz, Etc |
| Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| High Light: | Alloy Steel Down The Hole Hammer,5 Inch HD55 Down The Hole Hammer,Mining DTH Hammer |
||

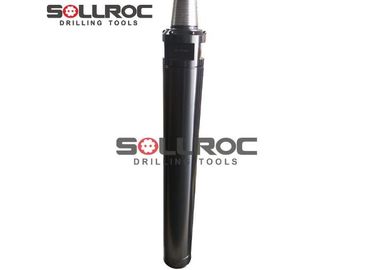

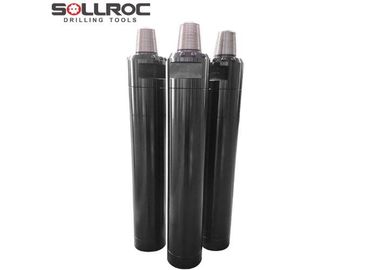

5'' HD55 Alloy Steel Down The Hole Hammer without Footvalve for Mining
Product description
Down - the - hole drilling, usually called DTH by most professionals, is performed by a mini jackhammer screwed on the bottom of a DTH drilling rig. The fast hammer action of the DTH drilling rig machine breaks hard rock into small pieces and dust and is blown clear by the air exhaust from the DTH hammer. DTH hammer is one of the fastest ways to drill hard rock and land. Now smaller portable drilling rig with DTH hammers can drill as fast as those much larger truck rigs with this newer and efficient technology.
Product Advantages:
1. Out of the trouble of foot valve fracture and expansion and contraction.
2. Lower energy consumption and higher impact frequency. The drilling speed is 15%-30% higher than the one with foot valve.
3. Simple structure, reliable parts, long life, easy and cheap maintenance.
4. Lower air and oil consumption. The oil consumption is about 10% lower than the one with foot valve.
DTH Hammer specification:
| shank | DHD350R/COP54 |
| Length(less bit) | 1110mm |
| External diameter | 116mm/125mm(optional) |
| Top sub thread | API 2 3/8"REG API 3 1/2"REG API 2 7/8'' REG |
| Weight(less bit) | 66kg |
| Hole range | 127mm-155mm |
| Working pressure | 1.0-2. 5Mpa |
| Impact rate at 1.4Mpa | 28Hz |
| Recommended rotation speed | 20-35r/min |
| 1.0Mpa | 7m³/min |
| Air consumption 1.8Mpa | 13-14m³/min |
| 2.4Mpa | 18-19m³/min |

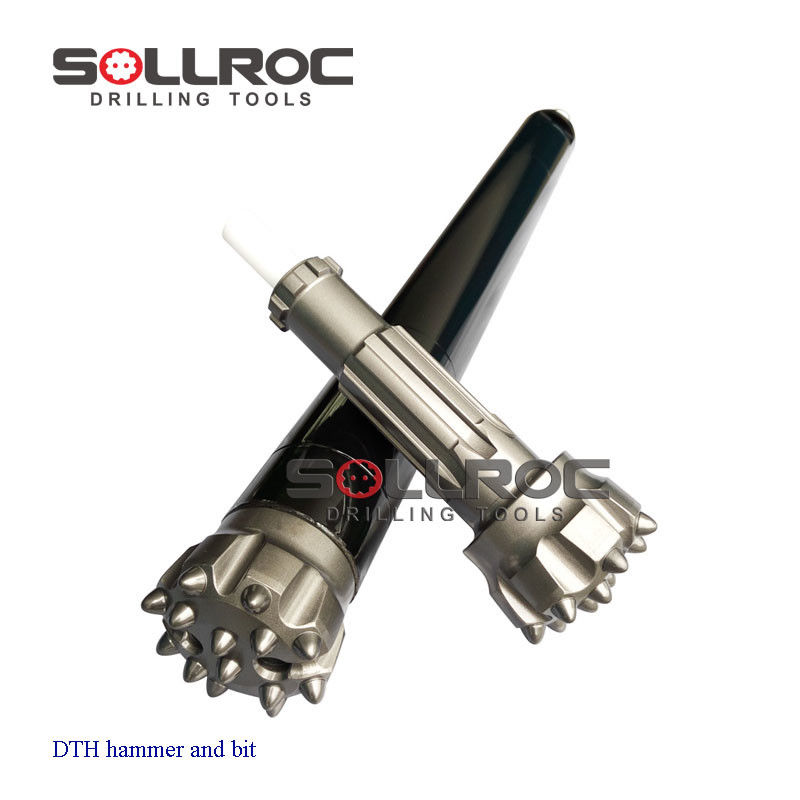

Face shape Features
Drop Center
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
Concave Face
The all-round application bit face special for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
Flat Face
This kind of face shape is suitable for very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
Product application
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
