Product Details:
|
| Material: | Carburized Steel | Color: | Red Or You Wanted |
|---|---|---|---|
| Application: | Construction,Mining,Civil Engineering Or Water Well Drilling | Air Pressure: | High Air Pressure |
| Advatage: | High Performance And Long Service Life | Type: | ODEX Casing System |
| Use: | ODEX Drilling | ||
| High Light: | ODEX140 Overburden Drilling System,Carburized Steel Overburden Drilling System,Eccentric ODEX Drilling System |
||

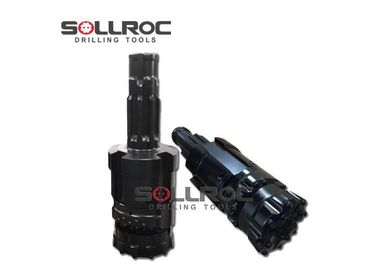

Odex140 Eccentric Overburden Drilling System For Water Well Drilling
Product Description
When drilling in soft and loose ground with scattered boulders, the soil and clay are caved in, which creates drilling difficulty to withdraw the DTH drilling equipment and lowers the drilling speed.
To overcome this problem, Eccentric Type Overburden Casing Drilling System to enable drilling and lowering the casing simultaneously. This prevents the soil from collapsing into the drilled hole.The systems are designed to drill the hole diameters bigger than the casing diameter. When reaching the required drilled depth, the DTH hammer and Overburden Drill System can be withdrawn from the hole. If the bed-rock level is reached and further drilling is needed, you can simply change the bit to a conventional DTH bit.
Advantages
1. Hardening treatment of the part's surface,with longer operating life and excellent anti-wear properties.
2. Structural optimization,strengthen the structural strength, easy to operate
3. Superior performance,stable and reliable performance, high drilling speed
Technical parameters
| 1 | Casing Tube | Maximum OD:171mm |
| Minimum ID:155.6mm | ||
| 2 | Drill Pipe | Connection Thread:API 2 3/8"Reg |
| OD: 89mm | ||
| Wrench Flats: 65mm | ||
| 3 | Guide Sleeve | Effective length: 205mm |
| 4 | DTH hammer | HD55,Cop54,SD5,DHD350,QL50,MISSION50 |
| 5 | Casing Shoe | L3=90mm L4=63mm D3=155.3mm D4=143mm |
| 6 | Guide Device | L1=55mm L2=160mm D1=141mm D2=154mm |
| 7 | Reamer | D5=138mm L5=69.5mm |
| Reaming Diameter:185mm | ||
| Reamer has 7x14mm buttons | ||
| 8 | Pilot Bit | D6=138mm L6=66.5mm |
| Gauge Button: 8x16mm | ||
| Face Button: 8x14mm |

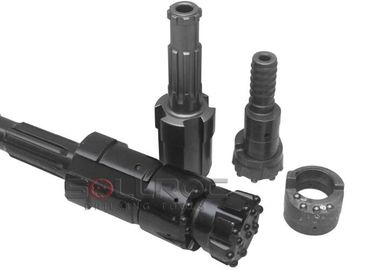

A set ODEX system include a pilot bit, a reamer,a guide device.
We can also supply ODEX84,ODEX90,ODEX97,ODEX115,ODEX140,ODEX146,ODEX150,ODEX165,ODEX190,ODEX209,ODEX240,ODEX280.
About us
We are able to manufacture, export and supply our clients excellent quality DTH Hammers like DTH Hammer Bits and RC Hammer. These hammers are meticulously manufactured with utmost perfection by utilizing superior quality raw materials and efficient machinery. Sturdy in construction, the provided hammers are specifically designed to suit high pressure drilling rigs. Also, the offered DTH Hammers can be purchased from us in distinct technical specifications at industry leading rates.
Delivery Time
Generally need 15-25 days
Transport Way
By air, By Sea or By Express
