Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | DTH Hammer | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | DHD360 | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Rock Hardness: | Granite, Limestone, Quartz, Etc |
| Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| High Light: | Alloy Steel DTH Hammer,6 Inch DTH Hammer,DHD360 Down The Hole Hammer |
||

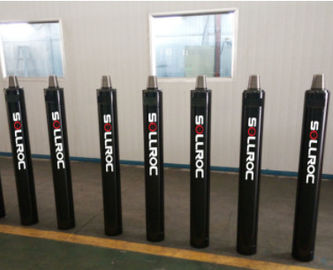

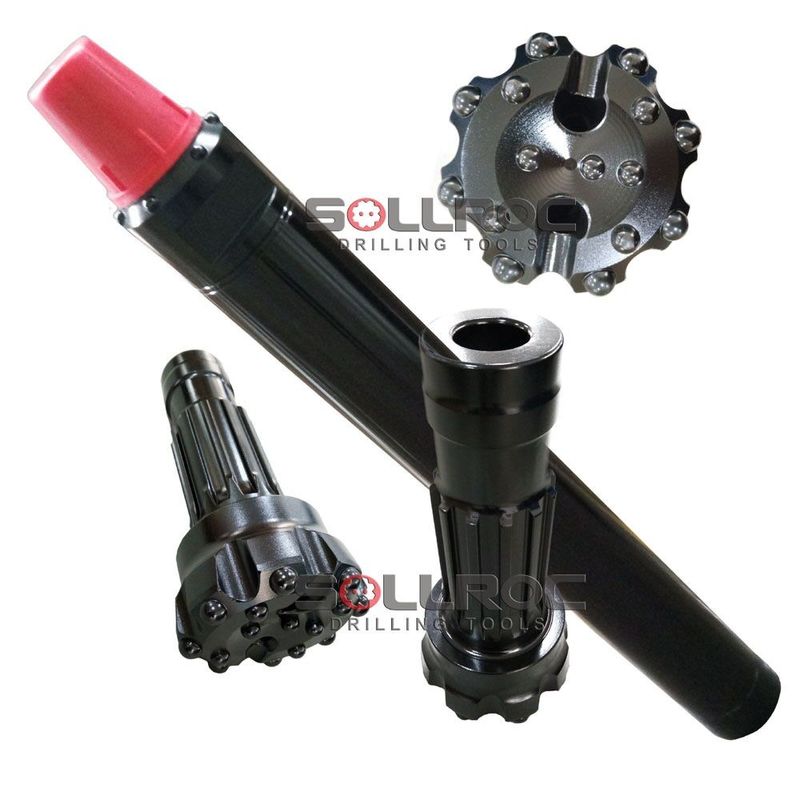

6 Inch DHD360 Alloy Steel Down The Hole Hammer For Construction Sites
Product description
In DTH drilling, the percussion mechanism – commonly called the hammer – is located directly above the drill bit. The drill pipes transmit the necessary feed force and rotation to the hammer and the bit, along with the fluid (air, water or drilling mud) used to actuate the hammer and flush the cuttings. The drill pipes are added to the drill string successively behind the hammer as the hole gets deeper.
Product Advantages:
1.For such projects as the drill bit break,retrieving very difficult,we specially designed a safe and reliable anti-shedding device for the bit.
2.Adapt to hard rock and rock formation conditions (compared to top hammer).
3.Highly efficient in hard rock drilling (compared to the rotary drilling).
DTH Hammer specification:
| Shank | Length(less bit) | External diameter | Top Sub Thread | Weight(less bit) | Hole Range |
| DHD360/COP64 | 1248mm | 148mm | API 3 1/2''REG | 100kg | 155-190 |
| SD6 | 1261mm | 148mm | API 3 1/2''REG | 100kg | 155-190 |
| QL60 | 1212mm | 148mm | API 3 1/2''REG | 95kg | 155-190 |
Face shape Features
Drop Center
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
Concave Face
The all-round application bit face special for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
Flat Face
This kind of face shape is suitable for very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
Product application
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
Company informaiton
At sollroc, customer satisfaction is our top priority. Our sales team takes a proactive approach in meeting customers’ needs. We take the time to get to know you and learn about your operations so we can better assist you. We strive to meet customers’ needs by supplying the tools and equipment you need when you need them, providing product support, and following through with excellent customer service every step of the way.
