Product Details:
|
Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
---|---|---|---|
Product Name: | 165mm DTH Bit | Rock Formation: | Granite, Limestone, Quartz, Etc |
Shank: | DHD,Cop,QL,Mission,SD | Advantage: | Hign Abrasion Resistance |
Color: | Black Or As Request | Size: | 6 1/2" |
Bit Diameter: | 165mm | Rock Hardness: | Granite, Limestone, Quartz, Etc |
Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
Highlight: | Tungsten Carbide Button DTH Drill Bits,Dia 165mm DTH Drill Bits,Dia 165mm DTH Button Bits |

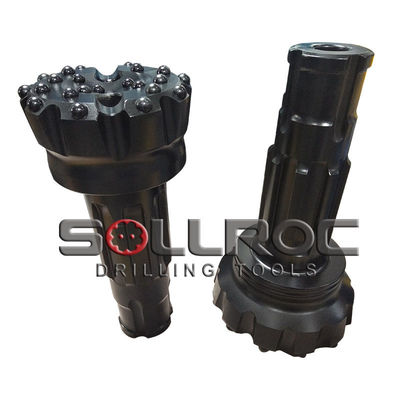

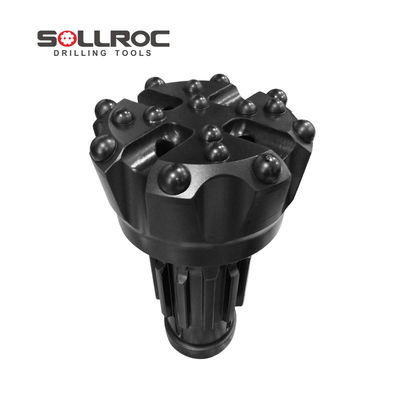

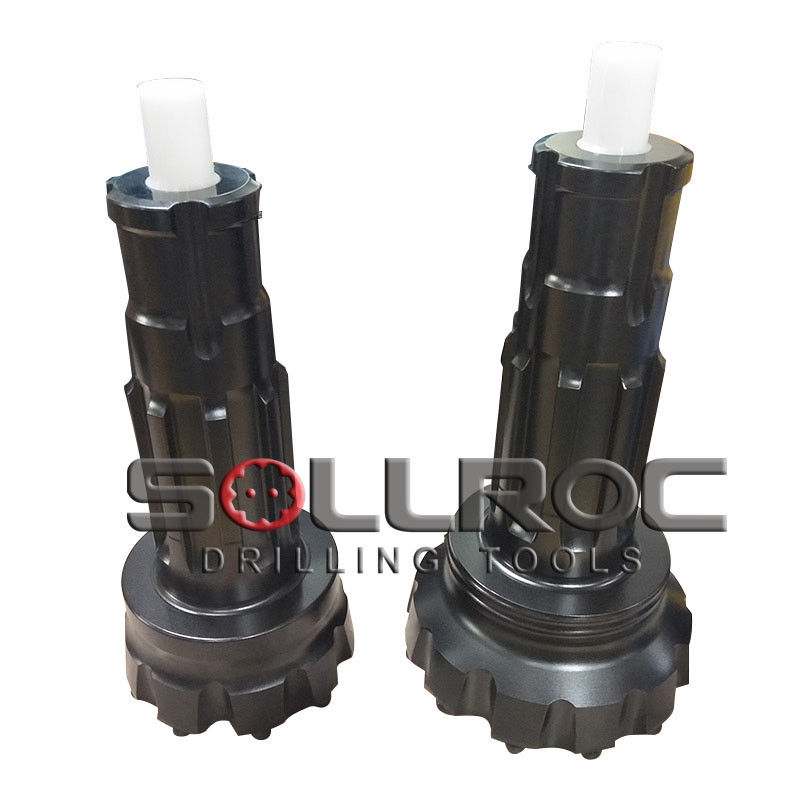

165mm Tungsten Carbide Button Down The Hole DTH Bit For Blasting Hole
Product description
In DTH drilling, the drill string rotates while the drilling hammer continuously strikes down into the rock. Inside the hammer, a piston powered by compressed air gives the drill bit its striking power. This combined with the rotational movement means the rock is crushed in a very efficient manner.
165mm dth bits specification:
For 6" hammer DTH bits shank |
Bit Dia. (mm) |
No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kg) |
Part No. | |
mm | inch | ||||||
DHD360/COP64 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 26.0 | DHD360-152 |
165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 28.0 | DHD360-165 | |
178 | 7" | 2 | 8×φ18 | 8×φ18 | 30.5 | DHD360-178 | |
190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 34.0 | DHD360-190 | |
203 | 8" | 3 | 9×φ18 | 9×φ18 | 36.0 | DHD360-203 | |
SD6 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 26.0 | SD6-152 |
165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 28.0 | SD6-165 | |
178 | 7" | 2 | 8×φ18 | 8×φ18 | 31.0 | SD6-178 | |
190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 34.0 | SD6-190 | |
203 | 8" | 3 | 9×φ18 | 9×φ18 | 36.0 | SD6-203 | |
QL60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 25.0 | QL60-152 |
165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 27.0 | QL60-165 | |
178 | 7" | 2 | 8×φ18 | 8×φ18 | 28.5 | QL60-178 | |
190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 31.0 | QL60-190 | |
203 | 8" | 3 | 9×φ18 | 9×φ18 | 33.0 | QL60-203 | |
Mission60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 22.0 | M60-152 |
165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 23.0 | M60-165 | |
178 | 7" | 2 | 8×φ18 | 8×φ18 | 24.0 | M60-178 | |
190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 25.0 | M60-190 | |
203 | 8" | 3 | 9×φ18 | 9×φ18 | 28.0 | M60-203 |
Product Advantages:
1. It can be use for abrasive condition, hard condition.
2. DTH bits have excellent wear resistance and impact resistance, can increase drilling footage and improve service life.

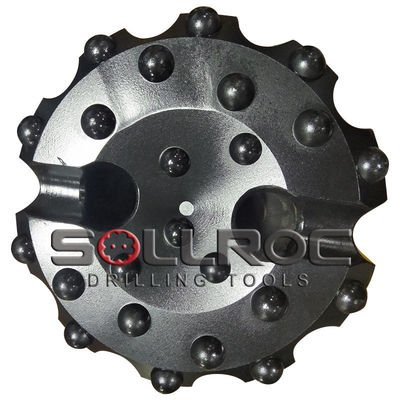

Face shape Features
Concave Face
1. Capable of drilling straighter holes in medium to hard rock which is broken or less consolidated
2. Offers high penetration rate in the above stated rock conditions
3. Has excellent air flushing characteristics
4. Predominant face style for majority of drilling conditions
Flat Face
1. Have a superior performance in hard, abrasive and broken rock conditions
2. They however have a slower penetration rate in comparison to a concave face bit
Convex Face
1. This face has been designed to offer high penetration rate in soft rock such as shale, limestone etc
2. They are recognized for having excellent capability for drilling into moderately consolidated rock conditions
Product application
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
