Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | DTH Hammer | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | IR350 | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Rock Hardness: | Granite, Limestone, Quartz, Etc |
| Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| High Light: | IR350 Down The Hole Hammer,IR350 DTH Hammer,DTH Hammer For Blasting Drilling |
||

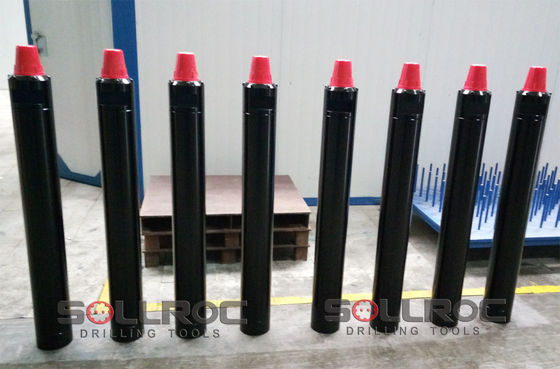

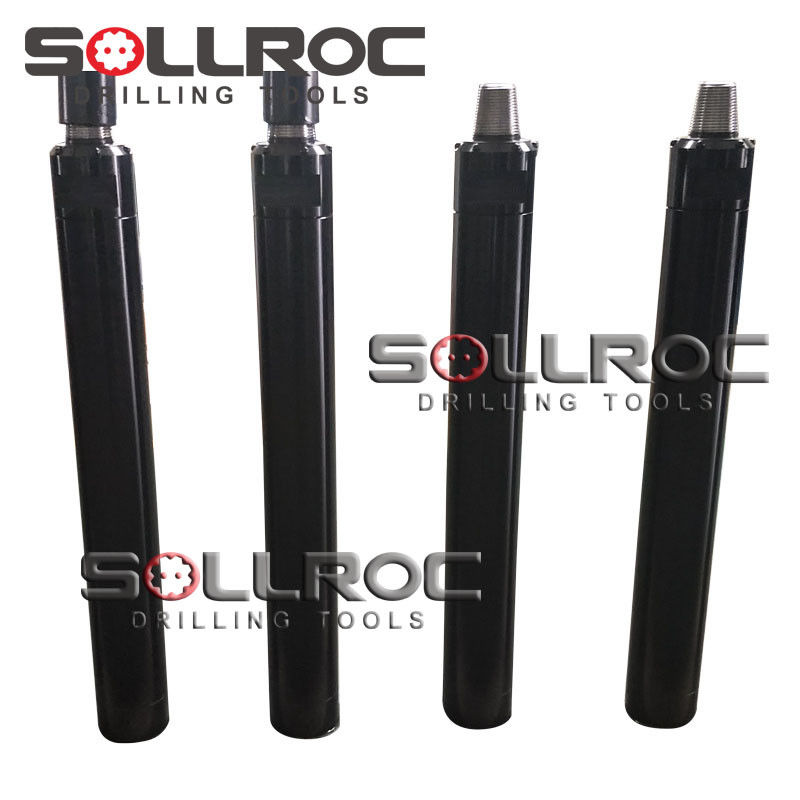

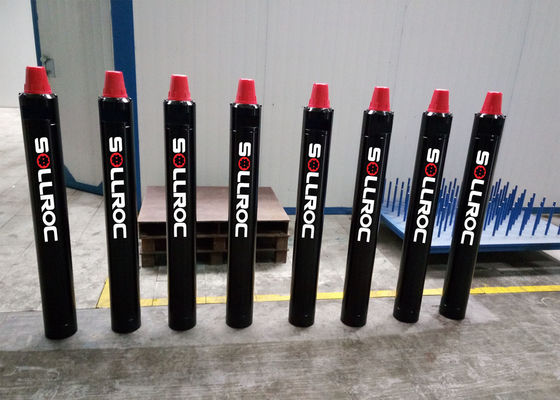

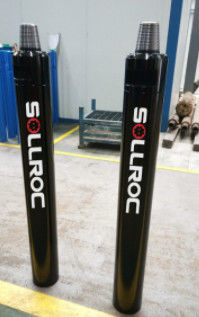

IR350 Hammer 5'' Down The Hole DTH Hammer In Black For Blasting Drilling
Product description
Main Features
1) DTH hammers series we supply
A) High pressure series
B) Medium pressure series
C) Low pressure series
D) High efficiency high pressure series
E) Reverse circulation series
2) Outside diameters: 61.2~275mm
3) Drilling diameter: 68~508mm
Product Advantages:
1. By using the latest rock drilling theory, optimizing the inside structure and the size of the air distribution, to make the DTH Hammer obtain the optimal energy transfer and make it achieve faster drilling speed and lower air consumption.
2. For such projects as the drill bit break, retrieving very difficult, we specially designed a safe and reliable anti-shedding device for the bit.
3. The check valve can be replaced to the one with bigger ail controlling hole to provide more efficient cuttings discharge.
4. The top sub and the drive chuck have special thread, which can achieve an easier disassemble.
DTH Hammer specification:
| shank | IR350 |
| Length(less bit) | 1214mm |
| External diameter | 125mm |
| Top sub thread | API 2 3/8"REG API 3 1/2'' REG |
| Weight(less bit) | 77.5kg |
| Hole range | 135mm-155mm |
| Working pressure | 1.0-2. 5Mpa |
| Impact rate at 1.4Mpa | 25Hz |
| Recommended rotation speed | 20-35r/min |
| 1.0Mpa | 9m³/min |
| Air consumption 1.8Mpa | 15m³/min |
| 2.4Mpa | 23m³/min |
Face shape Features
Drop Center
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
Concave Face
The all-round application bit face special for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
Flat Face
This kind of face shape is suitable for very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
Product application
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
