5 Inch IR350 Shank API 3 1/2'' REG DTH Hammer For Water Well Drilling

5 Inch IR350 Shank API 3 1/2'' REG DTH Hammer For Water Well Drilling

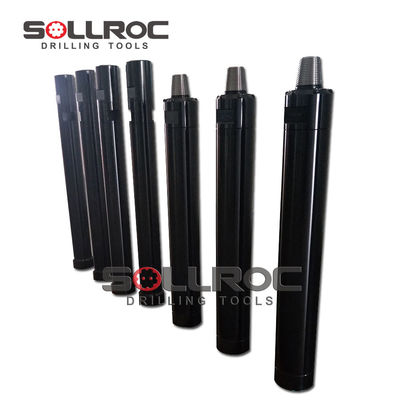

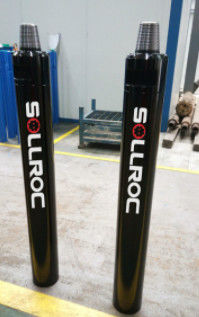

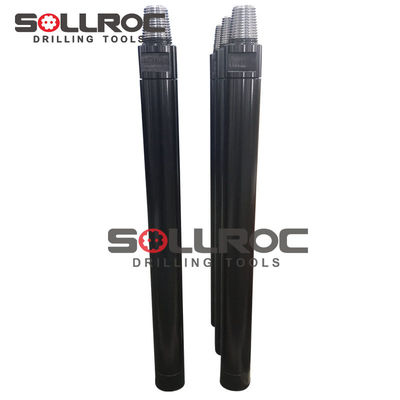

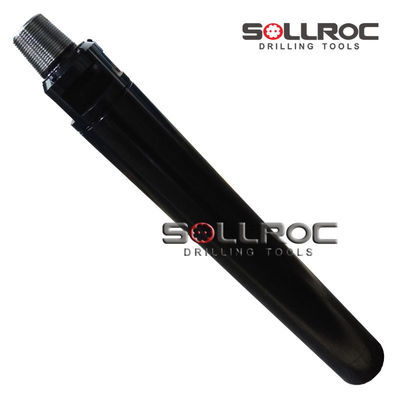

5 Inch IR350 Shank API 3 1/2'' REG DTH Hammer For Water Well Drilling 5 Inch IR350 Shank API 3 1/2'' REG DTH Hammer For Water Well Drilling 5 Inch IR350 Shank API 3 1/2'' REG DTH Hammer For Water Well Drilling 5 Inch IR350 Shank API 3 1/2'' REG DTH Hammer For Water Well Drilling

Large Image :  5 Inch IR350 Shank API 3 1/2'' REG DTH Hammer For Water Well Drilling

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: IR350
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

5 Inch IR350 Shank API 3 1/2'' REG DTH Hammer For Water Well Drilling

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: DTH Hammer Rock Formation: Granite, Limestone, Quartz, Etc
Shank: IR350 Advantage: Hign Abrasion Resistance
Color: Black Or As Request Rock Hardness: Granite, Limestone, Quartz, Etc
Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry
High Light:

API 3 1/2'' REG DTH Hammer

,

DTH Hammer For Water Well Drilling

,

IR350 Shank Down The Hole Hammer

5”Hammer IR350 Shank 3 ½ API connection For Down The Hole Water Well Drilling



Product description

DTH(Down the Hole) hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling.
Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs.
SOLLROC offers a wide range of DTH hammers suitable for a variety of drilling operations. Our Down the Hole hammers provide the most versatile and cost effective rock drilling method.

SOLLROC DTH hammers transmit intensive impact energy with low energy loss. This results in good rock breakage, high penetration rates and high productivity. The equipment is designed to give optimal hole quality, reliability, and long service life, as well as the best blasting results and low total operation cost.



Product Advantages:

1. By using the latest rock drilling theory, optimizing the inside structure and the size of the air distribution, to make the DTH Hammer obtain the optimal energy transfer and make it achieve faster drilling speed and lower air consumption.

2. For such projects as the drill bit break, retrieving very difficult, we specially designed a safe and reliable anti-shedding device for the bit.

3. The check valve can be replaced to the one with bigger ail controlling hole to provide more efficient cuttings discharge.

4. The top sub and the drive chuck have special thread, which can achieve an easier disassemble.



DTH Hammer specification:

shank IR350
Length(less bit) 1214mm
External diameter 125mm
Top sub thread API 2 3/8"REG      API 3 1/2'' REG
Weight(less bit) 77.5kg
Hole range 135mm-155mm
Working pressure 1.0-2. 5Mpa
Impact rate at 1.4Mpa 25Hz
Recommended rotation speed 20-35r/min
1.0Mpa 9m³/min
Air consumption 1.8Mpa 15m³/min
2.4Mpa 23m³/min



Face shape Features

Drop Center

For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.

Concave Face

The all-round application bit face special for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.

Convex Face

For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.

Flat Face

This kind of face shape is suitable for very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.

Double Gauge Face

This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.



Product application

At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.



DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.

5 Inch IR350 Shank API 3 1/2'' REG DTH Hammer For Water Well Drilling 0


Company informaiton

At sollroc, customer satisfaction is our top priority. Our sales team takes a proactive approach in meeting customers’ needs. We take the time to get to know you and learn about your operations so we can better assist you. We strive to meet customers’ needs by supplying the tools and equipment you need when you need them, providing product support, and following through with excellent customer service every step of the way.
