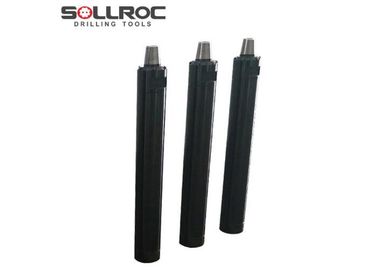

IR360 Shank 3 1/2'' API Connection 6" DTH Hammer For Mining

IR360 Shank 3 1/2'' API Connection 6" DTH Hammer For Mining
IR360 Shank 3 1/2'' API Connection 6" DTH Hammer For Mining IR360 Shank 3 1/2'' API Connection 6" DTH Hammer For Mining IR360 Shank 3 1/2'' API Connection 6" DTH Hammer For Mining IR360 Shank 3 1/2'' API Connection 6" DTH Hammer For Mining

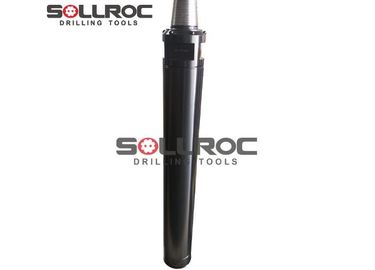

Large Image :  IR360 Shank 3 1/2'' API Connection 6" DTH Hammer For Mining

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: IR360
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

IR360 Shank 3 1/2'' API Connection 6" DTH Hammer For Mining

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: DTH Hammer Rock Formation: Granite, Limestone, Quartz, Etc
Shank: IR360 Advantage: Hign Abrasion Resistance
Color: Black Or As Request Rock Hardness: Granite, Limestone, Quartz, Etc
Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry
High Light:

6" DTH Hammer For Mining

,

3 1/2'' API Connection DTH Hammer

,

IR360 Shank Down The Hole Hammer

IR360 Shank 3 ½ API connection 6" DTH Drill Hammer Use For Mining



Product description

DTH(Down the Hole) hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling.
Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs.
SOLLROC offers a wide range of DTH hammers suitable for a variety of drilling operations. Our Down the Hole hammers provide the most versatile and cost effective rock drilling method.

SOLLROC DTH hammers transmit intensive impact energy with low energy loss. This results in good rock breakage, high penetration rates and high productivity. The equipment is designed to give optimal hole quality, reliability, and long service life, as well as the best blasting results and low total operation cost.



Product Advantages:

1. Advanced hammer designs with high power and air efficiency increases productivity
2. Tailored product offering covers all your applications and conditions
3. Easy service and maintenance designs reduces machine downtime
4. Generic and proprietary shank options give you flexibility and reliability



DTH Hammer specification:

shank IR360
Length(less bit) 1248mm
External diameter 148mm
Top sub thread  API 3 1/2'' REG
Weight(less bit) 100kg
Hole range 155mm-190mm
Working pressure 1.0-2. 5Mpa
Impact rate at 1.4Mpa 23Hz
Recommended rotation speed 20-30r/min
1.0Mpa 10m³/min
Air consumption 1.8Mpa 20m³/min
2.4Mpa 28.5m³/min

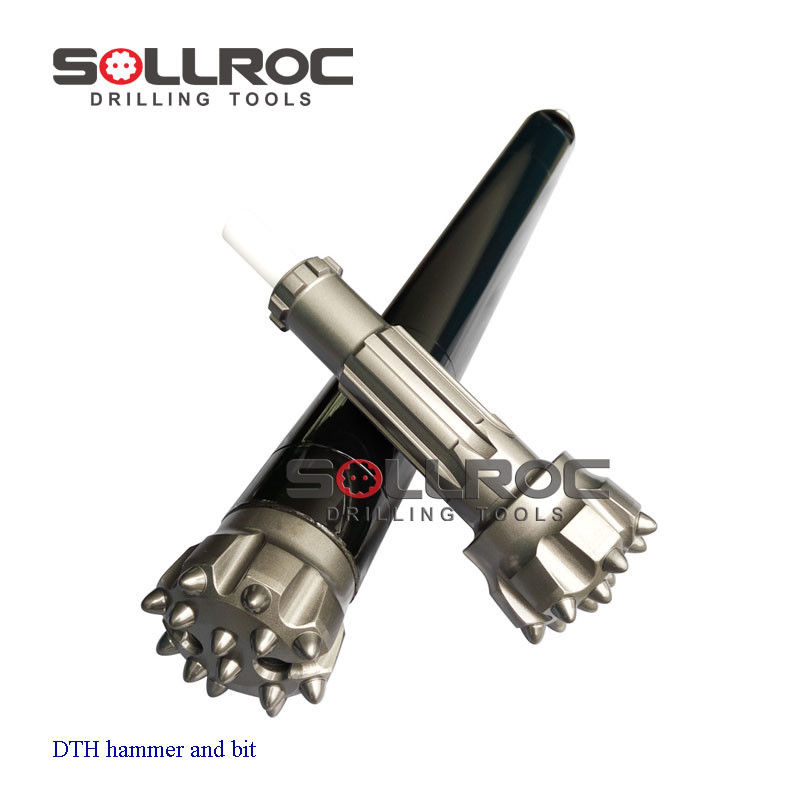

Face shape Features

Drop Center

For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.

Concave Face

The all-round application bit face special for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.

Convex Face

For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.

Flat Face

This kind of face shape is suitable for very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.

Double Gauge Face

This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.



Product application

At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.



DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.

IR360 Shank 3 1/2'' API Connection 6" DTH Hammer For Mining 0


Company informaiton

At sollroc, customer satisfaction is our top priority. Our sales team takes a proactive approach in meeting customers’ needs. We take the time to get to know you and learn about your operations so we can better assist you. We strive to meet customers’ needs by supplying the tools and equipment you need when you need them, providing product support, and following through with excellent customer service every step of the way.
