SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling

SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling
SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling
SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling

Large Image :  SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SRC531 RC bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month
Contact Now

SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling

Description
Color: Black Or You Wanted Material: High Carbon Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Shank: SRC531
High Light:

86mm Reverse Circulation Drill Bits

,

SRC531 Reverse Circulation Drill Bits

,

Carbide RC Drill Bits

SRC531 86-102mm Carbide Reverse Circulation Drill Bits for Sampling



Product Introduce:

A reverse circulation drilling method for drilling cuttings carrying drill cuttings through the inner bore of the drill rod and returning from the borehole to the ground.The liquid (gas) flow of the reverse circulation drilling is compared with the conventional circulation method called positive circulation, in which the flushing medium is fed into the bottom of the drill hole through the inner hole of the drill rod and returns to the ground along the annular gap outside the drill rod. The speed of return is high, and it is very strong to carry rock powder. Rocks that have been drilled at the bottom of the hole can be discharged in time and quickly return to the surface.



Adavantages:

1. In difficult condition such as loose soil, hard rock and plenty of water exists, sampling can be done well.
2. Indirect cost reductions gained from a simplified sampling process.
3. Using higher grade carbides for longer life;
4. Minimizes hole erosion in fragile formations
5. Drills faster through soft formations with less blockages
6. Requires less water than diamond drilling.


Technical Parameters

RC bits Model SRC531

Diameter No. x Button diameter
mm		 Button angle Flushing holes Shroud Dia
mm		 Weight
(kg)		 Part No.
mm inch Gauge Button Front Button
86 3 3/8 6 x 12mm 5 x 12mm 35 2 84 6.0 SRC531-86
89 3 1/2 8 x 12mm 5 x 12mm 35 2 87 6.1 SRC531-89
95 3 3/4 8 x 12mm 6 x 12mm 35 2 93 6.3 SRC531-95
102 4 8 x 12mm 6 x 12mm 35 2 100 6.5 SRC531-102

RC hammers
Hammer Bit Shank Hole Range
(mm)		 External Diameter
(mm)		 Length (less bit)
mm		 Weight
(kg)		 Connection Thread Working Pressure
RC3-E531 RE531 84-100 81 1069 29 3" Remet 1.5-3.5Mpa
RC3.5-Y RC3.5Y 98-115 94 1184 44 3" Remet 1.5-3.5Mpa
RC4-E004 RE004 111-127 107 1252 52 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E542 RE542 113-130 109.5 1191 57 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E543 RE543 120-135 116 1191 63 3.5" / 4" Remet
4" Metzke		 1.5-3.5Mpa
RC4.5-E545 RE545 122-135 117.5 1261 65 4" / 4.5" Remet
4" / 4.5" Metzke		 1.5-3.5Mpa
RC5-P40 PR40(RE040) 124-142 120.5 1362 80.5 3.5" / 4.5"Remet 3.5" / 4.5"Metzke 1.5-3.5Mpa
RC5.5-P52/P52R PR52/PR52R 126-142 121 1227 68.5 4" / 4.5"Remet
4" / 4.5"Metzke		 1.5-3.5Mpa
RC5.5-E547 RE547 130-146 124.5 1270 74 4.5" Remet
4.5" Metzke		 1.5-3.5Mpa
RC5.5-P54/P54R PR54(RE054) 135-150 130 1294 84.5 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
RC5.5-M5456 MX5456 136-150 132 1362 90 4.5"Remet 4.5"Metzke 1.5-3.5Mpa


Working principle
The on-board compressor delivers power to a pneumatic reciprocating piston. The piston, in turn, drives a tungsten-steel drill bit which is purpose designed to be able to crush hard rock.
Similar to air core drilling, drill cuttings are returned to surface inside rods. We achieve this through the use of dual wall drill rods: an outer drill rod with an inner tube. When compressed air is blown through the rod, the volume displaces the air, lifting the samples to the surface.
Once cuttings reach a diverter at the top of the hole, they’re moved through a hose and around the cyclone, which slows the sample down. From the cyclone the sample goes over a splitter that delivers a percentage of the entire sample into a sample bag. The exploration drilling team then collect the samples aligned to the hole depth and lay them out for the client to log, and then transport to the lab for assay.


Detailed Photo:

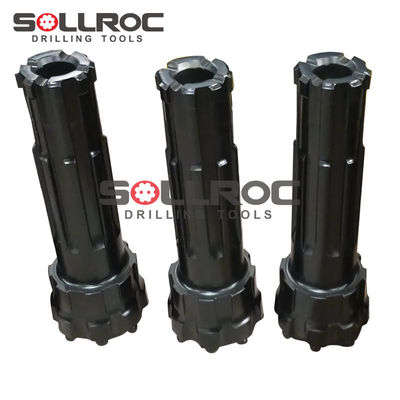

SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling 0

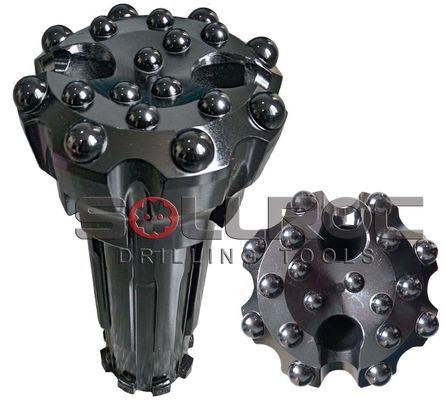

SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling 1

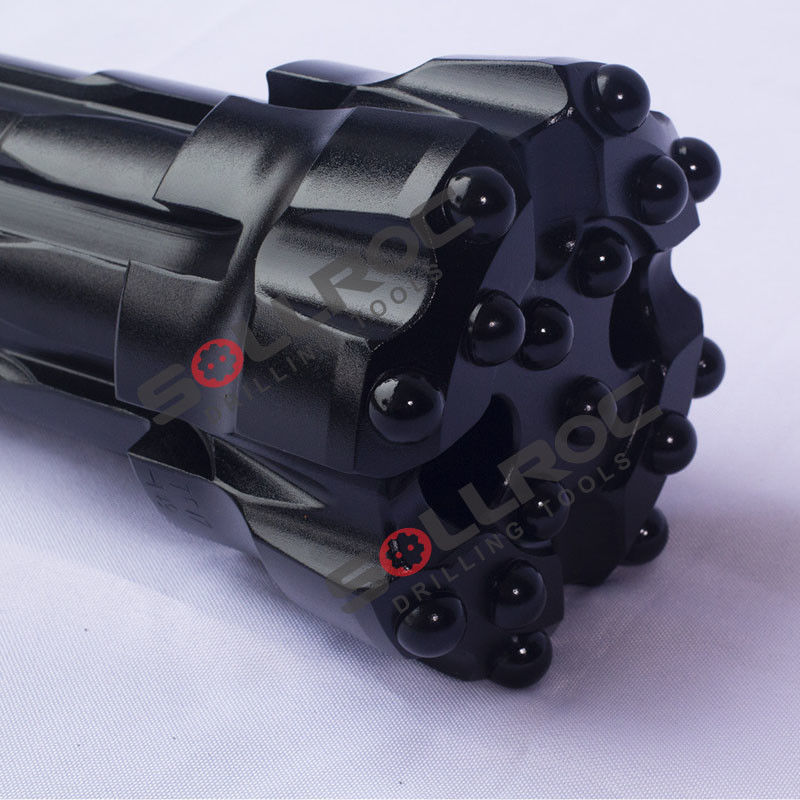

SRC531 86 - 102mm Carbide Reverse Circulation Drill Bits For Sampling 2

About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.



Delivery Way:

By Air, By express or By Sea



Tag:

reverse circulation drill bits,

reverse circulation hammers,

reverse circulation drilling
