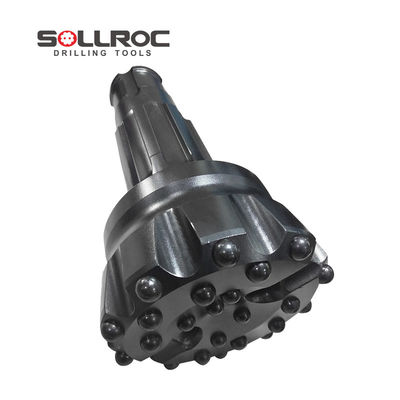

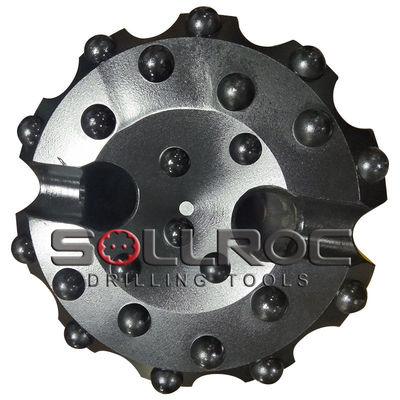

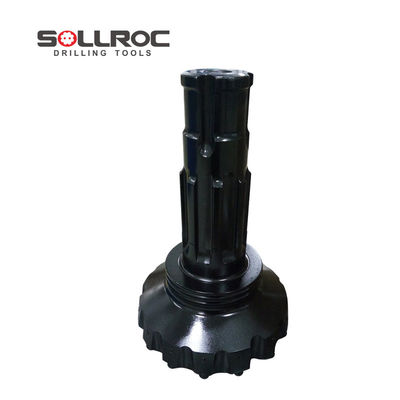

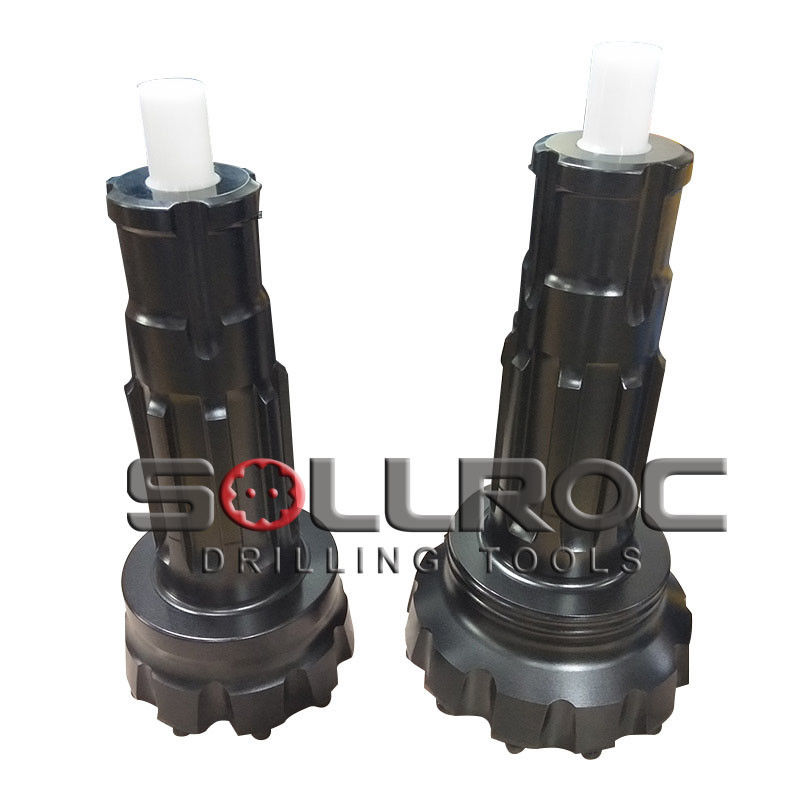

SD Series 2'' - 24'' High Air Pressure DTH Button Bits For Mining

SD Series 2'' - 24'' High Air Pressure DTH Button Bits For Mining
SD Series 2'' - 24'' High Air Pressure DTH Button Bits For Mining SD Series 2'' - 24'' High Air Pressure DTH Button Bits For Mining SD Series 2'' - 24'' High Air Pressure DTH Button Bits For Mining SD Series 2'' - 24'' High Air Pressure DTH Button Bits For Mining

Large Image :  SD Series 2'' - 24'' High Air Pressure DTH Button Bits For Mining

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SD
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

SD Series 2'' - 24'' High Air Pressure DTH Button Bits For Mining

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: SD DTH Bit Rock Formation: Granite, Limestone, Quartz, Etc
Shank: DHD,Cop,QL,Mission,SD Advantage: Hign Abrasion Resistance
Color: Black Or As Request Size: FULL
Rock Hardness: Granite, Limestone, Quartz, Etc Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts
Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry
High Light:

High Air Pressure DTH Button Bits

,

24'' DTH Button Bits

,

SD Series 2'' Mining Drill Bits

SD Series High Air Pressure DTH Button Bits from 2'' to 15'' for Mining



Product description

The DTH system is easy and quick to adapt to a directional drill and is considered one of the best and most effective methods to drill high-quality holes that are stable and straight. It can be done on both hard and soft rock and is extensively used in the construction, oil and gas, and water well industries.



Product Advantages:

1. High grade tungsten carbide inserts
2. Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
3. Recommended for eliminating hole deviation
4. Widely used drifting and tunneling
5. Bit face design is ideal for medium-hard to hard abrasive rock



SD DTH drill bit specification:

SD shank Bits Bit Dia. No.
Air Holes
Gauge
Buttons
Front
Buttons
Weight
(Kgs)
Part No.
mm inch
SD4

105 4 1/8" 2 6×φ14 5×φ13 9.0 SD4-105
110 4 1/4" 2 7×φ13 6×φ13 9.5 SD4-110
115 4 1/2" 2 7×φ14 6×φ13 9.8 SD4-115
120 4 3/4" 2 8×φ14 6×φ14 11.5 SD4-120
127 5 2 8×φ14 7×φ14 12.3 SD4-127
SD5

133 5 1/4" 2 7×φ16 6×φ14 15.5 SD5-130
140 5 1/2" 2 7×φ18 7×φ14 16.0 SD5-140
146 5 3/4" 2 8×φ18 7×φ14 16.5 SD5-146
152 6" 2 8×φ18 8×φ14 17.0 SD5-152
165 6 1/2" 2 8×φ18 8×φ16 19.0 SD5-165
SD6 152 6" 2 8×φ16 8×φ16 26.0 SD6-152
165 6 1/2" 2 8×φ18 8×φ16 28.0 SD6-165
178 7" 2 8×φ18 8×φ18 31.0 SD6-178
190 7 1/2" 3 9×φ18 9×φ16 34.0 SD6-190
203 8" 3 9×φ18 9×φ18 36.0 SD6-203
SD8

195 7 11/16 3 9×φ18 9×φ16 32.0 SD8-195
203 8" 3 9×φ18 9×φ18 41.0 SD8-203
216 8 1/2" 2 10×φ18 12×φ16 49.0 SD8-216
254 10" 3 11×φ18 17×φ16 71.0 SD8-254
305 12" 4 12×φ18 29×φ16 95.0 SD8-305
SD10

254 10" 3 12×φ18 20×φ16 108.0 SD10-254
305 12" 4 12×φ18 36×φ18 125.0 SD10-305
311 12 1/4" 4 12×φ18 36×φ16 130.0 SD10-311
318 12 1/2" 4 12×φ18 38×φ16 142.0 SD10-318
330 13" 4 16×φ18 42×φ16 155.0 SD10-330
SD12 305 12" 4 12×φ18 36×φ16 156.0 SD12-305
311 12 1/4" 4 12×φ18 36×φ16 168.0 SD12-311
330 13" 4 16×φ18 42×φ16 180.0 SD12-330
356 14" 4 16×φ19 48×φ16 191.0 SD12-356
381 15" 4 16×φ19 48×φ18 200.0 SD12-381



Face shape Features

Concave Face

1. Capable of drilling straighter holes in medium to hard rock which is broken or less consolidated

2. Offers high penetration rate in the above stated rock conditions

3. Has excellent air flushing characteristics

4. Predominant face style for majority of drilling conditions

Flat Face

1. Have a superior performance in hard, abrasive and broken rock conditions

2. They however have a slower penetration rate in comparison to a concave face bit

Convex Face

1. This face has been designed to offer high penetration rate in soft rock such as shale, limestone etc

2. They are recognized for having excellent capability for drilling into moderately consolidated rock conditions



Product application

At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.



DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
