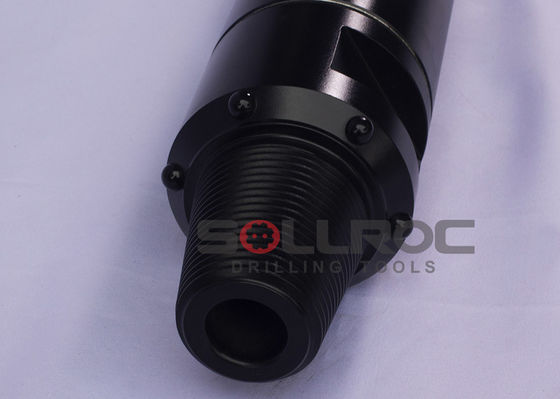

Shank SD8 Down The Hole Hammer 1.0 - 2.5Mpa With 4 1/2'' API REG Thread

Shank SD8 Down The Hole Hammer 1.0 - 2.5Mpa With 4 1/2'' API REG Thread
Shank SD8 Down The Hole Hammer 1.0 - 2.5Mpa With 4 1/2'' API REG Thread Shank SD8 Down The Hole Hammer 1.0 - 2.5Mpa With 4 1/2'' API REG Thread Shank SD8 Down The Hole Hammer 1.0 - 2.5Mpa With 4 1/2'' API REG Thread Shank SD8 Down The Hole Hammer 1.0 - 2.5Mpa With 4 1/2'' API REG Thread

Large Image :  Shank SD8 Down The Hole Hammer 1.0 - 2.5Mpa With 4 1/2'' API REG Thread

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SD8
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

Shank SD8 Down The Hole Hammer 1.0 - 2.5Mpa With 4 1/2'' API REG Thread

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: DTH Hammer Rock Formation: Granite, Limestone, Quartz, Etc
Shank: SD8 Advantage: Hign Abrasion Resistance
Color: Black Or As Request Rock Hardness: Granite, Limestone, Quartz, Etc
Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry
High Light:

Shank SD8 Down The Hole Hammer

,

2.5Mpa Down The Hole Hammer

,

4 1/2'' API REG Thread DTH Hammer

Drill Hammer Shank SD8 With Thread 4 1/2'' Api Reg For Down The Hole Drilling

Product description
SOLLROC company makes and supplies the finest and most efficient Down-the-Hole (DTH) hammers and bits for the mining, construction and water well industries. Sollroc DTH hammers transmit intensive impact energy with low energy loss. This results in good rock breakage, high penetration rates and high productivity. The equipment is designed to give optimal hole quality, reliability, and long service life, as well as the best blasting results and low total operation cost.

Advantages:

1. Advanced hammer designs with high power and air efficiency increases productivity
2. Tailored product offering covers all your applications and conditions
3. Easy service and maintenance designs reduces machine downtime
4. Generic and proprietary shank options give you flexibility and reliability


DTH Hammer specification:
Model: DHD380, COP84, SD8, QL80

  DHD380
COP84
SD8 QL80
Length(less bit) 1492mm 1463mm 1465mm
Weight (less bit) 188.0kg 192.0kg 182.00kg
External diameter 180mm 180mm 185mm
Bits shank DHD380
COP84
SD8 QL80
Bits diameter 200-279mm
7 7/8" - 11"

200-279mm
7 7/8" - 11"
200-279mm
7 7/8" - 11"
Connection thread API 4 1/2" Reg API 4 1/2" Reg API 4 1/2" Reg
Air pressure 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa


Face shape Features
Drop Center
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
Concave Face
The all-round application bit face special for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
Flat Face
This kind of face shape is suitable for very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.

Product application
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.


DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
