|Application:||Quarrying, Construction, Civil Engineering, Mining,||Usage:||Mining, Water Well Drilling, Geothermal Drilling|
|Product Name:||DTH Hammer||Rock Formation:||Granite, Limestone, Quartz, Etc|
|Shank:||DHD350||Advantage:||Hign Abrasion Resistance|
|Color:||Black Or As Request||Rock Hardness:||Granite, Limestone, Quartz, Etc|
|Machine Type:||Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts||Use:||Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry|
DHD350 Down The Hole Hammer,
DTH Hammer With Foot Valve,
Rock Drilling DTH Hammer

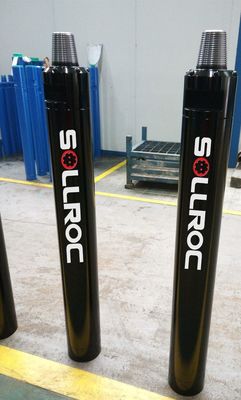

DTH Hammer DHD350 Mining Machinery with Foot Valve Rock Drilling Tools
DTH hammer is used for drilling holes through a wide range of rock types, the variety of which continues to extend well beyond the original conception of early blast hole drilling.
Down-the-Hole refers to where the hammer action occurs when compared to drifter hammers, which hammer on top of the drill string. The DTH hammer piston always makes direct contact with the drill bit and there is generally no loss of transmitted energy as the hammer drills deeper, as is the case with drifter (top hammer) rigs.
1. High productivity
2. Longer service life
3. Low energy consumption
DTH Hammer specification:
Model: DHD350R, COP54, SD5, M50, QL50
Other shank can be available
Face shape Features
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
The all-round application bit face special for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
This kind of face shape is suitable for very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.
DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
