Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration

Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration
Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration
Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration

Large Image :  Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SRC531 RC bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month

Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration

Description
Color: Black Or You Wanted Material: High Carbon Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Shank: SRC531
High Light:

3 Remet RC Drill Bits

,

3.5Mpa RC Drill Bits

,

Tungsten Carbide RC Drill Bits

86-102mm RC Drill Bit with Tungsten Carbide for Mineral Exploration



Product Introduce:

RC Drilling is already the most common mineral exploration, water well, soil investigation, foundation construction and mine developing drilling method used in many regions of the world.
By applying the most efficient alloy steel, high quality heat treatment, Sollroc’s RC hammer & bit’s Durable parts guarantee the most stable performance.
Simply designed internal parts make disassembling and assembling easy and precisely machined all parts optimize air consumption and guarantee fast penetration rate.



Adavantages:

1.Samples obtained via RC drilling are free of contaminants
2.The samples are collected at the drill and sent directly to the lab to be assessed
3.RC sampling requires less handling than other methods
4.Less handling results in cost reduction and faster turnaround times


Technical Parameters

RC bits Model SRC531

Diameter No. x Button diameter
mm
Button angle Flushing holes Shroud Dia
mm
Weight
(kg)
Part No.
mm inch Gauge Button Front Button
86 3 3/8 6 x 12mm 5 x 12mm 35 2 84 6.0 SRC531-86
89 3 1/2 8 x 12mm 5 x 12mm 35 2 87 6.1 SRC531-89
95 3 3/4 8 x 12mm 6 x 12mm 35 2 93 6.3 SRC531-95
102 4 8 x 12mm 6 x 12mm 35 2 100 6.5 SRC531-102

RC hammers
Hammer Bit Shank Hole Range
(mm)
External Diameter
(mm)
Length (less bit)
mm
Weight
(kg)
Connection Thread Working Pressure
RC3-E531 RE531 84-100 81 1069 29 3" Remet 1.5-3.5Mpa
RC3.5-Y RC3.5Y 98-115 94 1184 44 3" Remet 1.5-3.5Mpa
RC4-E004 RE004 111-127 107 1252 52 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E542 RE542 113-130 109.5 1191 57 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E543 RE543 120-135 116 1191 63 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E545 RE545 122-135 117.5 1261 65 4" / 4.5" Remet
4" / 4.5" Metzke
1.5-3.5Mpa
RC5-P40 PR40(RE040) 124-142 120.5 1362 80.5 3.5" / 4.5"Remet 3.5" / 4.5"Metzke 1.5-3.5Mpa
RC5.5-P52/P52R PR52/PR52R 126-142 121 1227 68.5 4" / 4.5"Remet
4" / 4.5"Metzke
1.5-3.5Mpa
RC5.5-E547 RE547 130-146 124.5 1270 74 4.5" Remet
4.5" Metzke
1.5-3.5Mpa
RC5.5-P54/P54R PR54(RE054) 135-150 130 1294 84.5 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
RC5.5-M5456 MX5456 136-150 132 1362 90 4.5"Remet 4.5"Metzke 1.5-3.5Mpa


Working principle
The on-board compressor delivers power to a pneumatic reciprocating piston. The piston, in turn, drives a tungsten-steel drill bit which is purpose designed to be able to crush hard rock.
Similar to air core drilling, drill cuttings are returned to surface inside rods. We achieve this through the use of dual wall drill rods: an outer drill rod with an inner tube. When compressed air is blown through the rod, the volume displaces the air, lifting the samples to the surface.
Once cuttings reach a diverter at the top of the hole, they’re moved through a hose and around the cyclone, which slows the sample down. From the cyclone the sample goes over a splitter that delivers a percentage of the entire sample into a sample bag. The exploration drilling team then collect the samples aligned to the hole depth and lay them out for the client to log, and then transport to the lab for assay.


Detailed Photo:

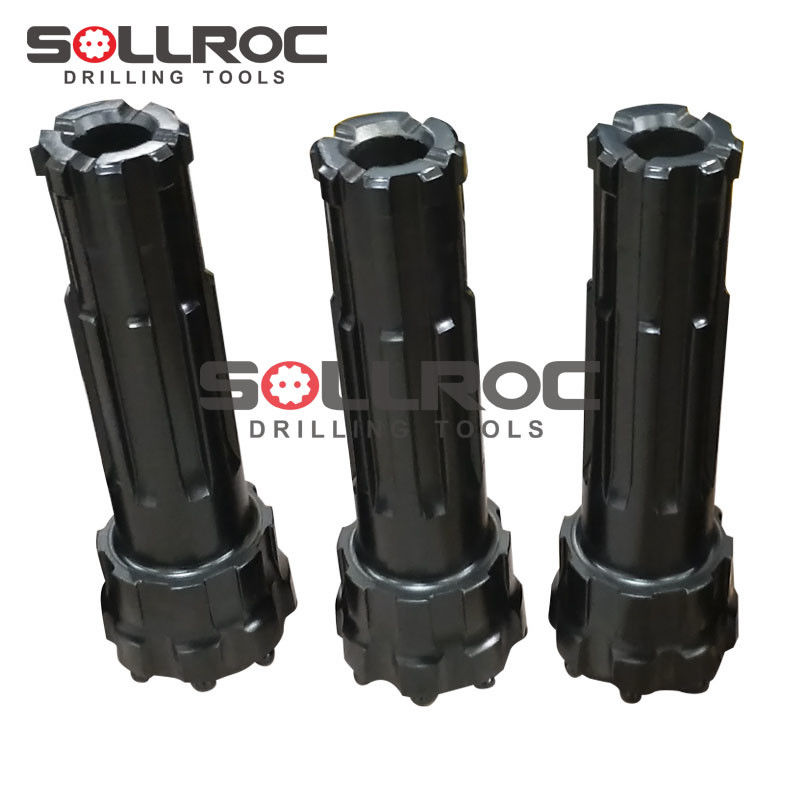

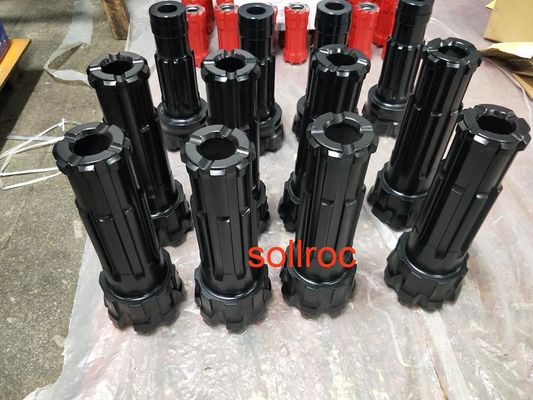

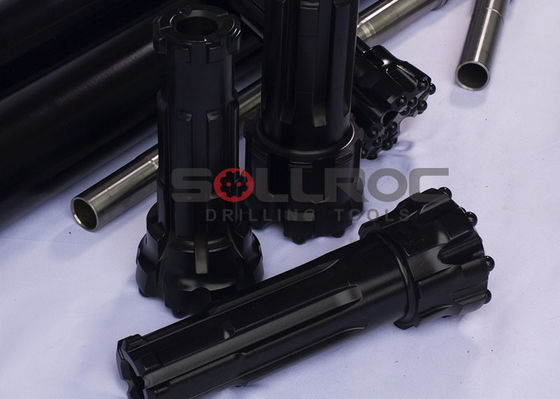

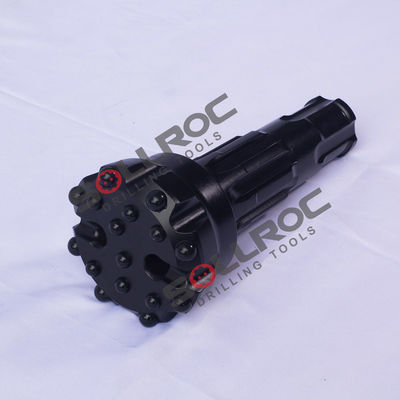

Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration 0

Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration 1

Tungsten Carbide 86-102mm RC Drill Bits SRC531 For Mineral Exploration 2

About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.



Delivery Way:

By Air, By express or By Sea
