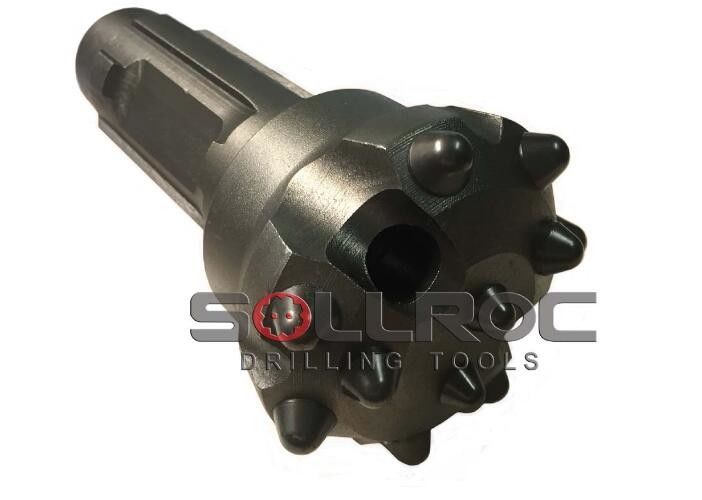

High Grade Steel 178mm Shank M60 DTH Hammer Bits For Quarry Drilling

High Grade Steel 178mm Shank M60 DTH Hammer Bits For Quarry Drilling
High Grade Steel 178mm Shank M60 DTH Hammer Bits For Quarry Drilling High Grade Steel 178mm Shank M60 DTH Hammer Bits For Quarry Drilling High Grade Steel 178mm Shank M60 DTH Hammer Bits For Quarry Drilling High Grade Steel 178mm Shank M60 DTH Hammer Bits For Quarry Drilling

Large Image :  High Grade Steel 178mm Shank M60 DTH Hammer Bits For Quarry Drilling

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: M60
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

High Grade Steel 178mm Shank M60 DTH Hammer Bits For Quarry Drilling

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: M60 DTH Bit Rock Formation: Granite, Limestone, Quartz, Etc
Shank: DHD,Cop,QL,Mission,SD Advantage: Hign Abrasion Resistance
Color: Black Or As Request Size: 152mm 165mm 178mm 191mm
Rock Hardness: Granite, Limestone, Quartz, Etc Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts
Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry
High Light:

178mm Shank DTH Hammer Bits

,

Quarry Drilling DTH Hammer Bits

,

M60 DTH Bit

High Grade Steel 178mm Shank M60 DTH Hammer Bits for Quarry Drilling



Product description

We offer a comprehensive range of DTH drill bits to match all conceivable applications. Each bit is made from quality alloy steel, and has been precision machined to produce a perfect body, heat treated to the required hardness, given surface compression for fatigue resistance, and fitted with precision buttons manufactured in-house.



M60 DTH drill bit specification:

For 6" hammer
DTH bits shank
Bit Dia.
(mm)
No.
Air Holes
Gauge
Buttons
Front
Buttons
Weight
(Kg)
Part No.
mm inch
M60 152 6" 2 8×φ16 8×φ16 25.0 M60-152
165 6 1/2" 2 8×φ18 8×φ16 27.0 M60-165
178 7" 2 8×φ18 8×φ18 28.5 M60-178
190 7 1/2" 3 9×φ18 9×φ16 31.0 M60-190
203 8" 3 9×φ18 9×φ18 33.0 M60-203

Product Advantages:

1.High grade tungsten carbide inserts

2.Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment



Face shape Features

Concave Face

1. Capable of drilling straighter holes in medium to hard rock which is broken or less consolidated

2. Offers high penetration rate in the above stated rock conditions

3. Has excellent air flushing characteristics

4. Predominant face style for majority of drilling conditions

Flat Face

1. Have a superior performance in hard, abrasive and broken rock conditions

2. They however have a slower penetration rate in comparison to a concave face bit

Convex Face

1. This face has been designed to offer high penetration rate in soft rock such as shale, limestone etc

2. They are recognized for having excellent capability for drilling into moderately consolidated rock conditions



Product application

At present, DTH drilling tool is widely used in underground mining, quarries, hydraulic and Hydro-Power Engineering, water well drilling, Mineral exploration, anchoring hole drilling, geothermal engineering, Subway excavation, another civil engineering.



DTH is one of the most efficient ways of drilling rock, using a rapid hammer action to break the rock into sizeable chips which are then evacuated from the bore hole by the air exhausted from the DTH Hammer. The technique provides fast drilling of accurately aligned, straight and clean holes in most ground conditions.
