Product Details:
|
| Application: | Quarrying, Construction | Usage: | Geothermal Drilling |
|---|---|---|---|
| Product Name: | QL60 Hammer | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Advantage: | Best Quality | Color: | Black Or As Request |
| Rock Hardness: | Granite, Limestone, Quartz, Etc | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| Size: | 6inch | Air Pressure: | High |
| High Light: | 6in Down The Hole Hammer,QL60 Hammer,Quarrying Steel Down The Hole Hammer |
||

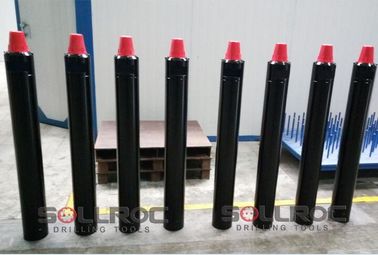

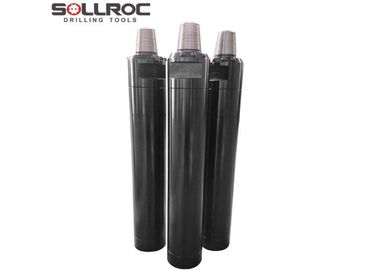

Premium Quality Steel 6'' QL60 Hammer with Black Color for Quarrying Services
Product description
Down The Hole hammer are produced from premium quality alloy steel for increased durability and wear characteristics. Specific heat treatment standards and special "stress relief" processes ensure consistent performance. DTH hammer are designed for maximum performance and hole cleaning ability and high penetration rate.
Product Advantages:
1. Ingenious design, high quality, high performance and long service life.
2. Lower energy consumption, high impact frequency and superior energy transfer.
3. High grade alloy Steel and advanced heat treatment offer superior wear resistance.
4. Trouble free and easy service with no special assembly or disassembly tools required.
DTH Hammer specification:
| QL60 | DHD360 COP64 |
SD6 | M60 | |
| Length(less bit) | 1212mm | 1248mm | 1261mm | 1161mm |
| Weight (less bit) | 95.00kg | 100.0kg | 100kg | 90kg |
| External diameter | 148mm | 142mm | 142mm | 146mm |
| Bits shank | QL60 | DHD360 COP64 |
SD6 | Misson60 |
| Bits diameter | 152-203mm 6" - 8" |
152-203mm 6" - 8" |
152-203mm 6" - 8" |
152-203mm 6" - 8" |
| Connection thread | API 3 1/2" Reg | API 3 1/2" Reg | API 3 1/2" Reg | API 3 1/2" Reg |
| Air pressure | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa | 1.0-2.5Mpa |
Other shank can be available
