Product Details:
|
| Application: | Quarrying, Construction | Usage: | Geothermal Drilling |
|---|---|---|---|
| Product Name: | HD45A Hammer | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Advantage: | Best Quality | Color: | Black Or As Request |
| Rock Hardness: | Granite, Limestone, Quartz, Etc | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| Size: | 4 Inch | Air Pressure: | High |
| High Light: | Hard Ground Drilling DTH Hammer,HD45A Drilling DTH Hammer,35rpm Down The Hole Hammer |
||

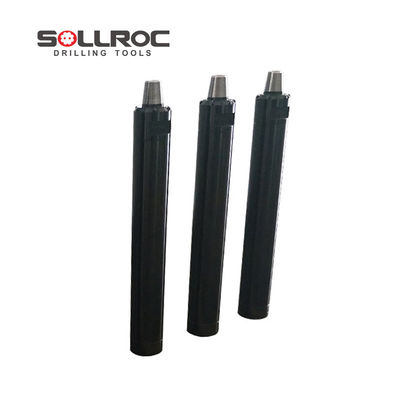

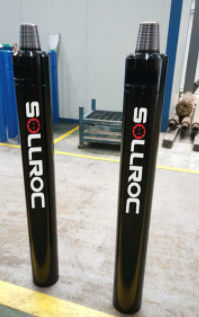

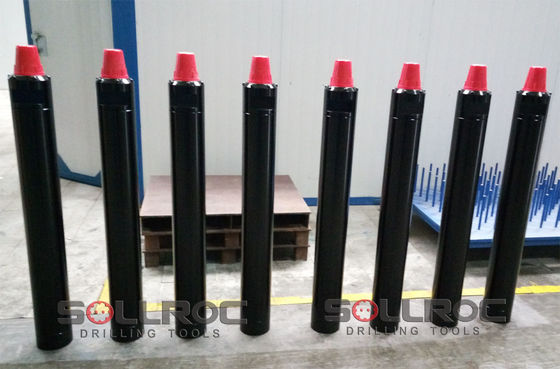

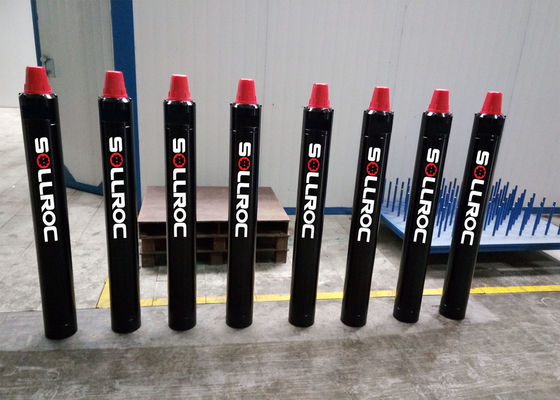

HD45A High Air Pressure DTH Hammer without Footvalve for Hard Ground Drilling
Product description
Sollroc drilling makes and supplies the finest and most efficient Down-the-Hole (DTH) hammers and bits for the mining, construction and water well industries. Sollroc drilling DTH hammers transmit intensive impact energy with low energy loss. This results in good rock breakage, high penetration rates and high productivity. The equipment is designed to give optimal hole quality, reliability, and long service life, as well as the best blasting results and low total operation cost.
Product Advantages:
1. Its ultra high performance features,

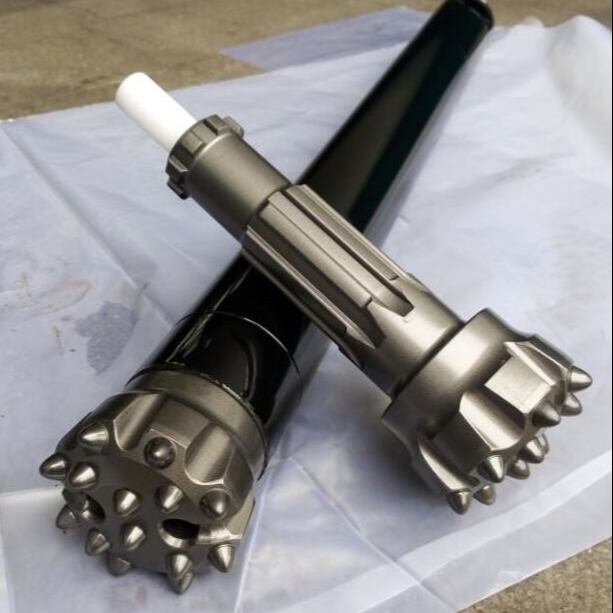

2. Hammer connect with drill bits no longer require Foot Valves.
3. The elimination of foot valve associated with the drill bit offers various technical and economical advantages.
DTH Hammer specification:
HD45A hammer
| shank | HD45A |
| Length(less bit) | 1011mm |
| External diameter | 92mm/99mm (optional) |
| Top sub thread | API 2 3/8”REG |
| Weight(less bit) | 39kg |
| Hole range | 110mm-130mm |
| Working pressure | 1.0-2. 5Mpa(145-362.5psi) |
| Impact rate at 1.7Mpa | 30Hz |
| Recommended rotation speed | 22-35rpm |
other size hammer specification
Hammers |
Bit Shank | Connection Thread | Suitable bit | Working pressure | Air consumption | |
| 1-3" Middle-low pressure DTH hammers | BR1 BR2 BR3 |
RD40 box RD50 box API 2 3/8" Reg |
¢64-¢76mm ¢70-¢90mm ¢90-¢110mm |
0.7-1.75Mpa 0.7-1.75Mpa 0.7-1.75Mpa |
0.7Mpa | 4.5m3/min |
| 1.0Mpa | 4m3/min | |||||
| 1.4Mpa | 5m3/min | |||||
| 3" hammers | DHD3.5 COP32/COP34 M30 |
API 2 3/8"Reg | ¢90-¢110mm | 1.0-1.5Mpa | 1.0Mpa | 4.5m3/min |
| 1.5Mpa | 9m3/min | |||||
| 4" hammers | DHD340 COP44 QL40 SD4 M40 |
API 2 3/8"Reg | ¢105-¢130mm | 1.0-2.5Mpa | 1.0Mpa | 6m3/min |
| 1.8Mpa | 10m3/min | |||||
| 2.4Mpa | 15m3/min | |||||
| 5" hammers | DHD350 COP54 QL50 SD5 M50 |
API 2 3/8"Reg/API 3 1/2"Reg | ¢130-¢156mm | 1.0-2.5Mpa | 1.0Mpa | 9m3/min |
| 1.8Mpa | 15m3/min | |||||
| 2.4Mpa | 23m3/min | |||||
| 6" hammers | DHD360 COP64 QL60 SD6 M60 |
API 3 1/2"Reg | ¢152-¢203mm | 1.0-2.5Mpa | 1.0Mpa | 10m3/min |
| 1.8Mpa | 20m3/min | |||||
| 2.4Mpa | 28.5m3/min | |||||
| 8" hammers | DHD380 COP84 QL80 SD8 |
API 4 1/2"Reg | ¢200-¢279mm | 1.0-2.5Mpa | 1.0Mpa | 15m3/min |
| 1.8Mpa | 26m3/min | |||||
| 2.4Mpa | 34m3/min | |||||
| 10" hammers | SD10 NUMA100 |
API 6 5/8"Reg | ¢254-¢330mm | 1.0-2.5Mpa | 1.0Mpa | 22m3/min |
| 1.8Mpa | 40m3/min | |||||
| 2.4Mpa | 55m3/min | |||||
| 12" hammers | DHD1120 SD12 NUMA120 NUMA125 |
API 6 5/8"Reg | ¢305-¢381mm | 1.0-2.5Mpa | 1.0Mpa | 30m3/min |
| 1.8Mpa | 56m3/min | |||||
| 2.4Mpa | 78m3/min | |||||
Face shape Features
Concave face is suitable for all-round rock formation, especially for medium hard and homogeneous rock formations,excellent control over hole deviation.
Convex face is suitable for medium hard rock formation.Non abrasive rock formations. High peneration rate.
Flat face is suitable for hard and abrasive rock formation.High peneration rates and resistance to steel wash.
