Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | M60 DTH Bit | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | DHD,Cop,QL,Mission,SD | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Size: | 152mm 165mm 178mm 191mm |
| Rock Hardness: | Granite, Limestone, Quartz, Etc | Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts |
| Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry | ||
| High Light: | 165mm DTH Button Drill Bits,Construction DTH Button Drill Bits,M60 Construction DTH Drill Bits |
||

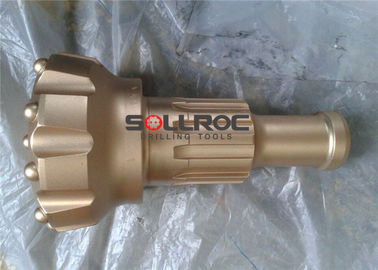

High Performance Drilling Bits 165mm-M60 DTH Drill Button Bits for Construction
Product description
Our tools are widely used in different drilling applications including mining,quarrying, water well drilling, geotechnical industries and etc.
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
1.The longer life of the drill
2.High drilling efficiency
3.The drilling speed is stable
4.Good performance
5.The use of a wide range
M60 DTH drill bit specification:
| For 6" hammer DTH bits shank |
Bit Dia. (mm) |
No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kg) |
Part No. | |
| mm | inch | ||||||
| M60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 25.0 | M60-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 27.0 | M60-165 | |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 28.5 | M60-178 | |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 31.0 | M60-190 | |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 33.0 | M60-203 | |

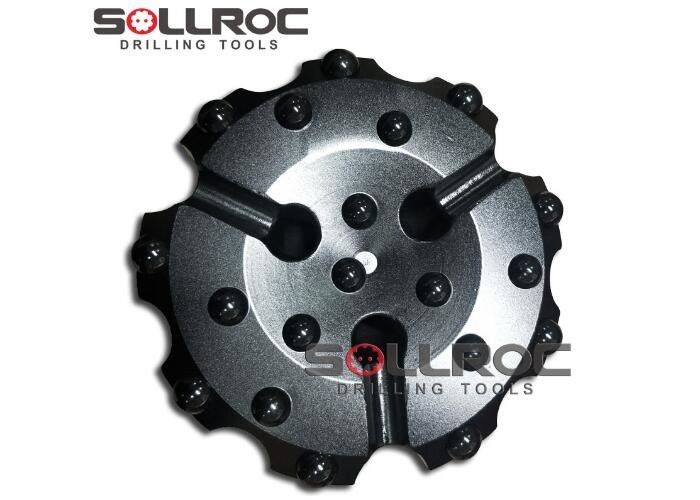

Button shape Features
1. Spherical Buttons are usually used as gauge buttons of DTH Bits, suitable for every abrasive and very hard formations.
2. Semi-Ballistic Buttons Parabolic Buttons are usually used as gauge buttons and front buttons of DTH Bits, suitable for medium abrasive and hard formations.
3. Ballistic Button Ballistic Buttons are usually used as front buttons of DTH Bits, suitable for medium abrasive and mesium hard formations. They can also be used as gauge buttons if the rock is soft.
