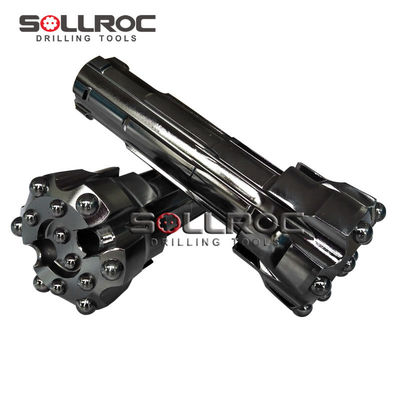

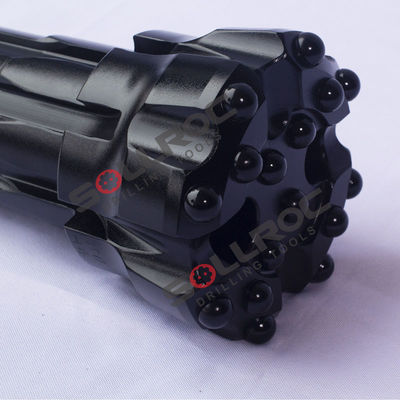

95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling

95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling
95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling
95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling 95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling 95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling 95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling 95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling 95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling

Large Image :  95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SRC531 RC bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month

95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling

Description
Color: Black Or You Wanted Material: High Carbon Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Shank: SRC531 Diameter: 95mm
High Light:

95mm RC Drill Bit

,

Blasting Hole RC Drill Bit

,

Geologic Exploration RC Bit

95mm RE531 Reverse Circulation RC Drill Bit for Sample Blasting Hole Drilling



Product Introduce:

Reverse Circulation (RC) drilling is used to collect mineral and rock samples quickly and efficiently using a large rotary drill and air compressor. Reverse Circulation (or RC) drilling is one of the most frequently used methods of drilling used across the world as it is more cost effective and efficient then other methods of drilling. When compared to RAB (Rotary Air Blast) and diamond drilling, RC drilling seems to be somewhere in the middle when it comes to cost, time, quality of samples, technique and depth.



Adavantages:

1. Direct drilling cost reductions in the range of 25% to 40%.
2. Faster completion of drill programs with quicker delivery of results.
3. Reduced man-hours at the drill with decreased exposure to potential accidents.
4. Reduced contractor activity in the mine reduces mine support burden.
5. Indirect cost reductions gained from a simplified sampling process.


Technical Parameters

RC bits Model SRC531

Diameter No. x Button diameter
mm
Button angle Flushing holes Shroud Dia
mm
Weight
(kg)
Part No.
mm inch Gauge Button Front Button
86 3 3/8 6 x 12mm 5 x 12mm 35 2 84 6.0 SRC531-86
89 3 1/2 8 x 12mm 5 x 12mm 35 2 87 6.1 SRC531-89
95 3 3/4 8 x 12mm 6 x 12mm 35 2 93 6.3 SRC531-95
102 4 8 x 12mm 6 x 12mm 35 2 100 6.5 SRC531-102

RC hammers
Hammer Bit Shank Hole Range
(mm)
External Diameter
(mm)
Length (less bit)
mm
Weight
(kg)
Connection Thread Working Pressure
RC3-E531 RE531 84-100 81 1069 29 3" Remet 1.5-3.5Mpa
RC3.5-Y RC3.5Y 98-115 94 1184 44 3" Remet 1.5-3.5Mpa
RC4-E004 RE004 111-127 107 1252 52 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E542 RE542 113-130 109.5 1191 57 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E543 RE543 120-135 116 1191 63 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E545 RE545 122-135 117.5 1261 65 4" / 4.5" Remet
4" / 4.5" Metzke
1.5-3.5Mpa
RC5-P40 PR40(RE040) 124-142 120.5 1362 80.5 3.5" / 4.5"Remet 3.5" / 4.5"Metzke 1.5-3.5Mpa
RC5.5-P52/P52R PR52/PR52R 126-142 121 1227 68.5 4" / 4.5"Remet
4" / 4.5"Metzke
1.5-3.5Mpa
RC5.5-E547 RE547 130-146 124.5 1270 74 4.5" Remet
4.5" Metzke
1.5-3.5Mpa
RC5.5-P54/P54R PR54(RE054) 135-150 130 1294 84.5 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
RC5.5-M5456 MX5456 136-150 132 1362 90 4.5"Remet 4.5"Metzke 1.5-3.5Mpa


Working principle
The on-board compressor delivers power to a pneumatic reciprocating piston. The piston, in turn, drives a tungsten-steel drill bit which is purpose designed to be able to crush hard rock.
Similar to air core drilling, drill cuttings are returned to surface inside rods. We achieve this through the use of dual wall drill rods: an outer drill rod with an inner tube. When compressed air is blown through the rod, the volume displaces the air, lifting the samples to the surface.
Once cuttings reach a diverter at the top of the hole, they’re moved through a hose and around the cyclone, which slows the sample down. From the cyclone the sample goes over a splitter that delivers a percentage of the entire sample into a sample bag. The exploration drilling team then collect the samples aligned to the hole depth and lay them out for the client to log, and then transport to the lab for assay.


Detailed Photo:

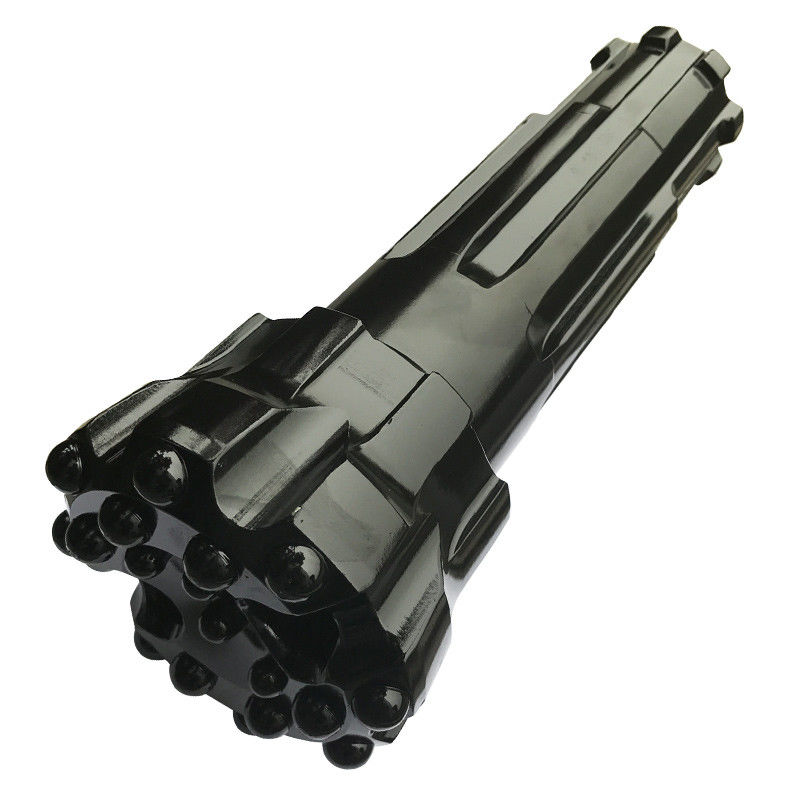

95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling 0

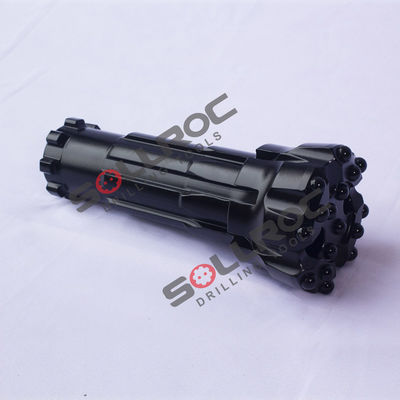

95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling 1

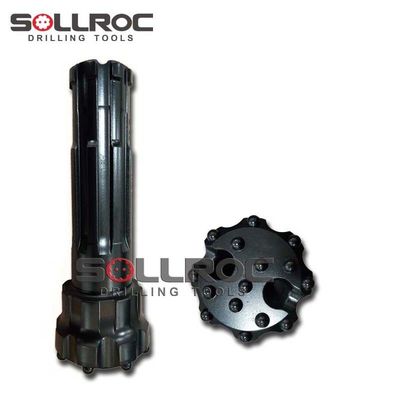

95mm RE531 Reverse Circulation RC Drill Bit For Sample Blasting Hole Drilling 2



Delivery Way:

By Air, By express or By Sea
