86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration

86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration
86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration
86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration 86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration 86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration 86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration 86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration 86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration

Large Image :  86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SRC531 RC bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month

86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration

Description
Color: Black Or You Wanted Material: High Carbon Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Shank: SRC531 Diameter: 95mm
High Light:

102mm Reverse Circulation RC Bit

,

Mining Exploration RC Bit

,

12mm Carbide Buttons RC Drill Bit

86-102mm Reverse Circulation RC Bit with Carbide Buttons for Mining Exploration



Product Introduce:

Reverse Circulation drilling, or RC drilling, is a method of drilling which uses dual wall drill rods that consist of an outer drill rod with an inner tube. These hollow inner tubes allow the drill cuttings to be transported back to the surface in a continuous, steady flow.



Adavantages:

1. Achieves greater penetration in hard rock than air core drilling,
2. Ideal for harsh environments.
3. Reduced risk of cross-contamination.
4. Faster and more efficient


Technical Parameters

RC bits Model SRC531

Diameter No. x Button diameter
mm
Button angle Flushing holes Shroud Dia
mm
Weight
(kg)
Part No.
mm inch Gauge Button Front Button
86 3 3/8 6 x 12mm 5 x 12mm 35 2 84 6.0 SRC531-86
89 3 1/2 8 x 12mm 5 x 12mm 35 2 87 6.1 SRC531-89
95 3 3/4 8 x 12mm 6 x 12mm 35 2 93 6.3 SRC531-95
102 4 8 x 12mm 6 x 12mm 35 2 100 6.5 SRC531-102

RC hammers
Hammer Bit Shank Hole Range
(mm)
External Diameter
(mm)
Length (less bit)
mm
Weight
(kg)
Connection Thread Working Pressure
RC3-E531 RE531 84-100 81 1069 29 3" Remet 1.5-3.5Mpa
RC3.5-Y RC3.5Y 98-115 94 1184 44 3" Remet 1.5-3.5Mpa
RC4-E004 RE004 111-127 107 1252 52 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E542 RE542 113-130 109.5 1191 57 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E543 RE543 120-135 116 1191 63 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E545 RE545 122-135 117.5 1261 65 4" / 4.5" Remet
4" / 4.5" Metzke
1.5-3.5Mpa
RC5-P40 PR40(RE040) 124-142 120.5 1362 80.5 3.5" / 4.5"Remet 3.5" / 4.5"Metzke 1.5-3.5Mpa
RC5.5-P52/P52R PR52/PR52R 126-142 121 1227 68.5 4" / 4.5"Remet
4" / 4.5"Metzke
1.5-3.5Mpa
RC5.5-E547 RE547 130-146 124.5 1270 74 4.5" Remet
4.5" Metzke
1.5-3.5Mpa
RC5.5-P54/P54R PR54(RE054) 135-150 130 1294 84.5 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
RC5.5-M5456 MX5456 136-150 132 1362 90 4.5"Remet 4.5"Metzke 1.5-3.5Mpa

Working principle
During drilling, compressed air is injected into the annulus of the dual-wall pipes and drives the RC-DTH hammer to implement high-frequency blows acting on a reverse circulation drill bit where the reverse circulation is formed.

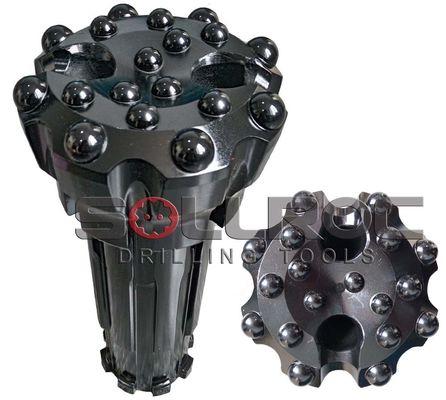

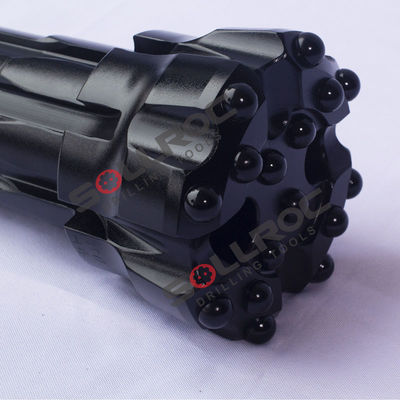

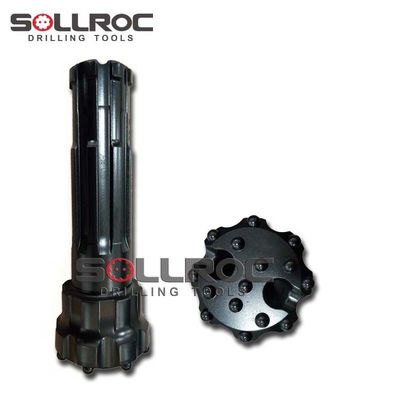

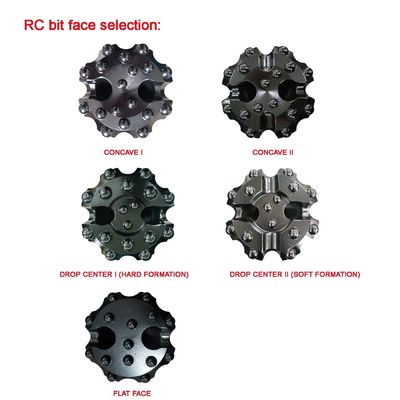

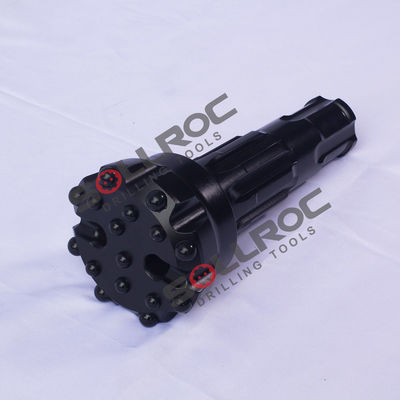

Detailed Photo:

86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration 0

86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration 1

86-102mm Reverse Circulation RC Bit With Carbide Buttons For Mining Exploration 2



Delivery Way:

By Air, By express or By Sea
