Product Details:
|
| Color: | Black Or You Wanted | Material: | High Carbon Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Shank: | SRC531 | Diameter: | 102mm |
| High Light: | 102mm RC Hardened Drill Bits,SRC531 RC Hardened Drill Bits,Well Drilling RC Drill Bit |
||
102mm Reverse Circulation RC Hardened Drill Bits for Mining Well Drilling
Product Introduce:
Dual-wall reverse-circulation drilling uses flush-threaded double-wall drill pipe and high-pressure air to provide continuous return of formation and water samples. Cuttings and formation waters are not contaminated with drilling additives or mixed with other borehole material.
The RC method employs dual wall drill rods that comprise an outer drill rod, with an inner tube located inside the drill rod. The inner tubes overlap, and seal on the tube below with O rings when the drill rods are screwed together. These inner tubes provide a continuous sealed pathway for the drill cuttings to be transported from the bit face to the surface.
Adavantages:
Technical Parameters
RC bits Model SRC531
| Diameter | No. x Button diameter mm |
Button angle | Flushing holes | Shroud Dia mm |
Weight (kg) |
Part No. | ||
| mm | inch | Gauge Button | Front Button | |||||
| 86 | 3 3/8 | 6 x 12mm | 5 x 12mm | 35 | 2 | 84 | 6.0 | SRC531-86 |
| 89 | 3 1/2 | 8 x 12mm | 5 x 12mm | 35 | 2 | 87 | 6.1 | SRC531-89 |
| 95 | 3 3/4 | 8 x 12mm | 6 x 12mm | 35 | 2 | 93 | 6.3 | SRC531-95 |
| 102 | 4 | 8 x 12mm | 6 x 12mm | 35 | 2 | 100 | 6.5 | SRC531-102 |
| Hammer | Bit Shank | Hole Range (mm) |
External Diameter (mm) |
Length (less bit) mm |
Weight (kg) |
Connection Thread | Working Pressure |
| RC3-E531 | RE531 | 84-100 | 81 | 1069 | 29 | 3" Remet | 1.5-3.5Mpa |
| RC3.5-Y | RC3.5Y | 98-115 | 94 | 1184 | 44 | 3" Remet | 1.5-3.5Mpa |
| RC4-E004 | RE004 | 111-127 | 107 | 1252 | 52 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E542 | RE542 | 113-130 | 109.5 | 1191 | 57 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E543 | RE543 | 120-135 | 116 | 1191 | 63 | 3.5" / 4" Remet 4" Metzke |
1.5-3.5Mpa |
| RC4.5-E545 | RE545 | 122-135 | 117.5 | 1261 | 65 | 4" / 4.5" Remet 4" / 4.5" Metzke |
1.5-3.5Mpa |
| RC5-P40 | PR40(RE040) | 124-142 | 120.5 | 1362 | 80.5 | 3.5" / 4.5"Remet 3.5" / 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-P52/P52R | PR52/PR52R | 126-142 | 121 | 1227 | 68.5 | 4" / 4.5"Remet 4" / 4.5"Metzke |
1.5-3.5Mpa |
| RC5.5-E547 | RE547 | 130-146 | 124.5 | 1270 | 74 | 4.5" Remet 4.5" Metzke |
1.5-3.5Mpa |
| RC5.5-P54/P54R | PR54(RE054) | 135-150 | 130 | 1294 | 84.5 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |
| RC5.5-M5456 | MX5456 | 136-150 | 132 | 1362 | 90 | 4.5"Remet 4.5"Metzke | 1.5-3.5Mpa |

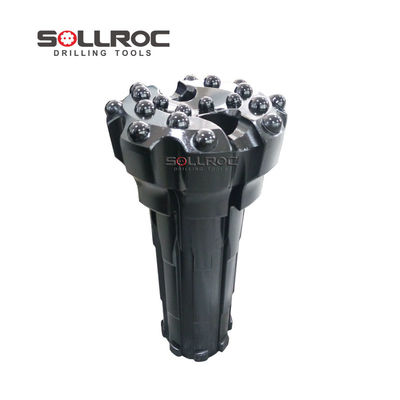

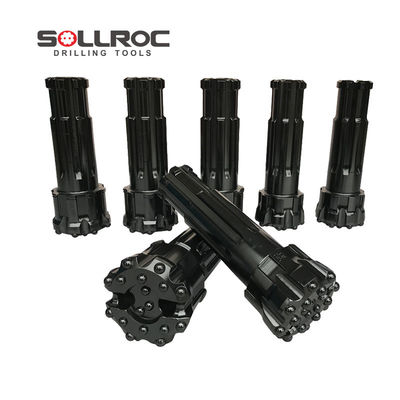

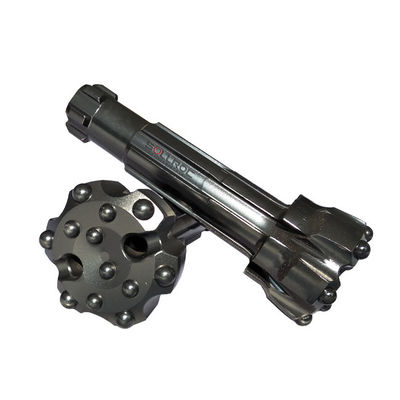

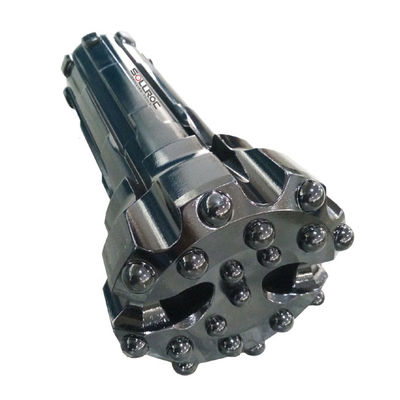

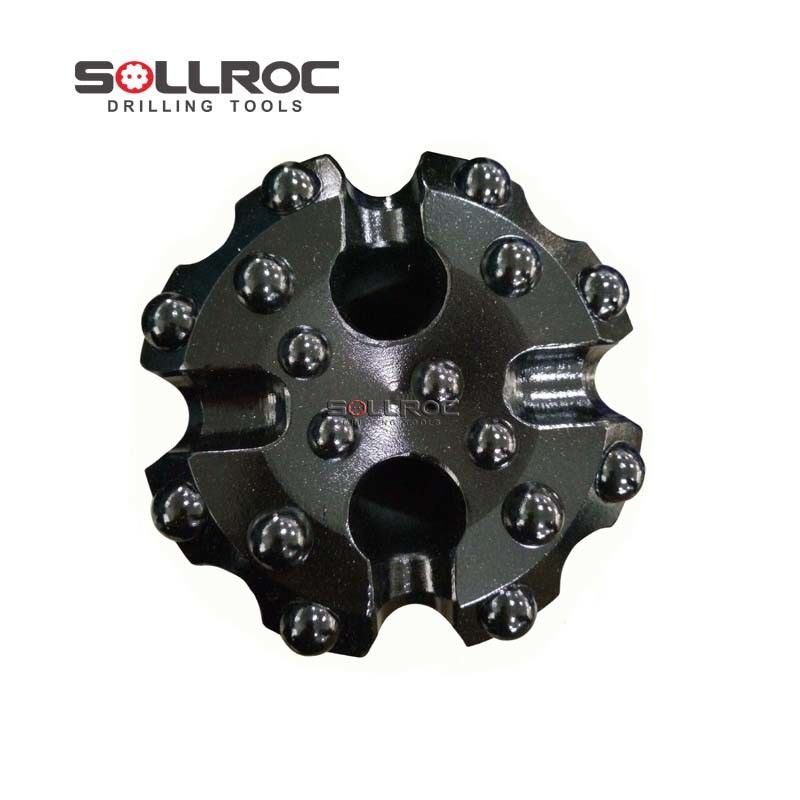

Detailed Photo:
Delivery Way:
By Air, By express or By Sea
