Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control

Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control
Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control
Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control

Large Image :  Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SRC531 RC bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month

Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control

Description
Color: Black Or You Wanted Material: High Carbon Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Shank: SRC531 Diameter: 102mm
High Light:

Full Size RC Drilling Bit RE531

,

Carbide Buttons RC Drilling Bit

,

SGS Grade Control RC Drill Bit

RC Drlling Bit RE531 with Full Size and Carbide Buttons for Grade Control



Product Introduce:

Reverse Circulation drilling, or RC drilling, uses rods with inner and outer tubes, the drill cuttings are returned to surface inside the rods. The drilling mechanism is a pneumatic reciprocating piston known as a hammer driving a tungsten-steel drill bit.



Adavantages:

1.The process allows for faster, deeper drilling.

2.It delivers uncontaminated samples.

3.This prevents your sample from being exposed to other areas of the drill hole, which prevents cross-contamination in your samples.



Technical Parameters

RC bits Model SRC531

Diameter No. x Button diameter
mm
Button angle Flushing holes Shroud Dia
mm
Weight
(kg)
Part No.
mm inch Gauge Button Front Button
86 3 3/8 6 x 12mm 5 x 12mm 35 2 84 6.0 SRC531-86
89 3 1/2 8 x 12mm 5 x 12mm 35 2 87 6.1 SRC531-89
95 3 3/4 8 x 12mm 6 x 12mm 35 2 93 6.3 SRC531-95
102 4 8 x 12mm 6 x 12mm 35 2 100 6.5 SRC531-102

RC hammers
Hammer Bit Shank Hole Range
(mm)
External Diameter
(mm)
Length (less bit)
mm
Weight
(kg)
Connection Thread Working Pressure
RC3-E531 RE531 84-100 81 1069 29 3" Remet 1.5-3.5Mpa
RC3.5-Y RC3.5Y 98-115 94 1184 44 3" Remet 1.5-3.5Mpa
RC4-E004 RE004 111-127 107 1252 52 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E542 RE542 113-130 109.5 1191 57 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E543 RE543 120-135 116 1191 63 3.5" / 4" Remet
4" Metzke
1.5-3.5Mpa
RC4.5-E545 RE545 122-135 117.5 1261 65 4" / 4.5" Remet
4" / 4.5" Metzke
1.5-3.5Mpa
RC5-P40 PR40(RE040) 124-142 120.5 1362 80.5 3.5" / 4.5"Remet 3.5" / 4.5"Metzke 1.5-3.5Mpa
RC5.5-P52/P52R PR52/PR52R 126-142 121 1227 68.5 4" / 4.5"Remet
4" / 4.5"Metzke
1.5-3.5Mpa
RC5.5-E547 RE547 130-146 124.5 1270 74 4.5" Remet
4.5" Metzke
1.5-3.5Mpa
RC5.5-P54/P54R PR54(RE054) 135-150 130 1294 84.5 4.5"Remet 4.5"Metzke 1.5-3.5Mpa
RC5.5-M5456 MX5456 136-150 132 1362 90 4.5"Remet 4.5"Metzke 1.5-3.5Mpa

Working principle
RC drilling works well in both overburden and soft, broken rock formations but its main strength is when it gets to hard composite rock. It is cost efficient due to the simplicity of the percussive drilling process and because the equipment needed is less complex.


Detailed Photo:

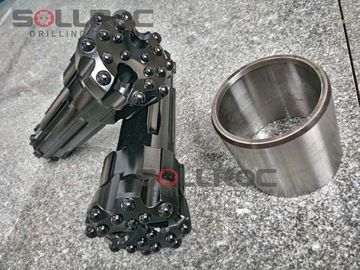

Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control 0

Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control 1

Full Size RC Drlling Bit RE531 With Carbide Buttons For Grade Control 2



Delivery Way:

By Air, By express or By Sea
