Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | M60 DTH Bit | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | DHD,Cop,QL,Mission,SD | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Size: | 152mm 165mm 178mm 191mm |
| Rock Hardness: | Granite, Limestone, Quartz, Etc | Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts |
| Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry | Name: | M60 Bit |
| Material: | Alloy Steel | Surface Treatment: | Spray-Paint |
| High Light: | M60 Down The Hole Drill Bit,6in DTH Drill Bit,Quarrying Shank M60 DTH Drill Bit |
||
6" High Performance Down The Hole DTH Drill Bit with Shank M60 for Quarrying
Product description
Down-the-hole (DTH) drilling has made it easier for contractors to drill wells faster and more efficiently, and to transition from dirt boring to rock boring just by adding a compressor and hammer to the drill bit.
1. Capable of drilling in almost all rocks, hard, medium to soft.
2. Penetration rates that can outstrip other systems.
3. Reduced costs.
4. Straighter/cleaner holes.
5. Wide range of hole sizes available, without high expenditure.
6. Quieter than other percussive systems.
M60 DTH drill bit specification:
| For 6" hammer DTH bits shank |
Bit Dia. (mm) |
No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kg) |
Part No. | |
| mm | inch | ||||||
| M60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 25.0 | M60-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 27.0 | M60-165 | |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 28.5 | M60-178 | |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 31.0 | M60-190 | |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 33.0 | M60-203 | |

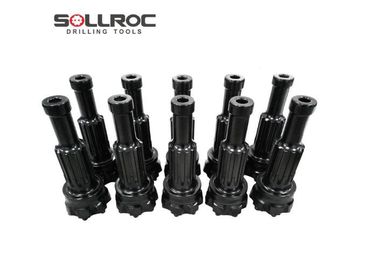

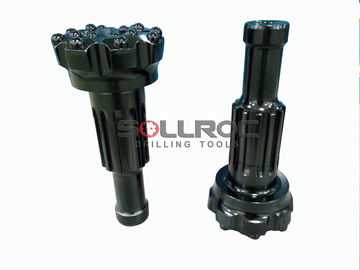

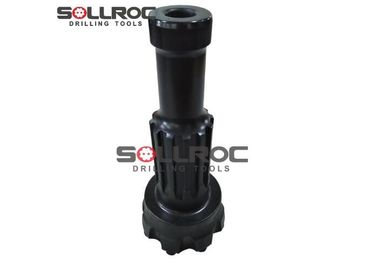

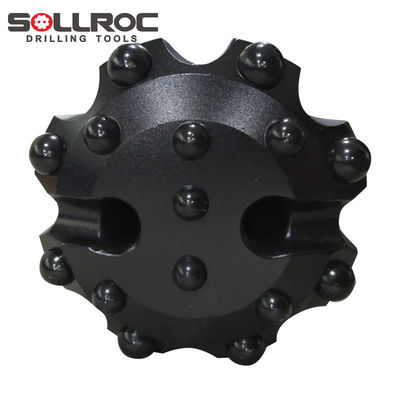

Detail photos:
