Mining DTH Drill Bit Black Color Full Size With Shank SD Series

Mining DTH Drill Bit Black Color Full Size With Shank SD Series
Mining DTH Drill Bit Black Color Full Size With Shank SD Series
Mining DTH Drill Bit Black Color Full Size With Shank SD Series Mining DTH Drill Bit Black Color Full Size With Shank SD Series Mining DTH Drill Bit Black Color Full Size With Shank SD Series Mining DTH Drill Bit Black Color Full Size With Shank SD Series Mining DTH Drill Bit Black Color Full Size With Shank SD Series

Large Image :  Mining DTH Drill Bit Black Color Full Size With Shank SD Series

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SD Series bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

Mining DTH Drill Bit Black Color Full Size With Shank SD Series

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: SD Series DTH Bit Rock Formation: Granite, Limestone, Quartz, Etc
Shank: DHD,Cop,QL,Mission,SD Advantage: Hign Abrasion Resistance
Color: Black Or As Request Size: 152mm 165mm 178mm 191mm
Rock Hardness: Granite, Limestone, Quartz, Etc Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts
Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry Name: SD Bit
Material: Alloy Steel Surface Treatment: Spray-Paint
High Light:

Mining DTH Drill Bit

,

Shank SD Series DTH Drill Bit

,

Full Size Dth Button Bits

DTH Drill Bit Black Color Full Size with Shank SD Series for Mining



Product description

A Down the hole drilling is the most critical component on a drill rig, and the DTH system has numerous advantages over other options. The top Dth hammer system can provide satisfactory results in stiff uniform rock conditions for short holes, but they will most likely struggle in deep and soft ground with huge diameters.



Product Advantages:
1. The use of air makes this method very cost-effective as air does not have to be sourced, transported or treated.
2. Less amount of drilling fluid and additives are required.
3. Less weight-on-bit allows for lighter rigs that are easier to set up and takedown.
4. Since cutting force is supplied by reciprocal force, the bit encounters lesser deflection and therefore drills more precisely.



SD Series DTH drill bit specification:

SD shank Bits Bit Dia. No.
Air Holes
Gauge
Buttons
Front
Buttons
Weight
(Kgs)
Part No.
mm inch
SD4

105 4 1/8" 2 6×φ14 5×φ13 9.0 SD4-105
110 4 1/4" 2 7×φ13 6×φ13 9.5 SD4-110
115 4 1/2" 2 7×φ14 6×φ13 9.8 SD4-115
120 4 3/4" 2 8×φ14 6×φ14 11.5 SD4-120
127 5 2 8×φ14 7×φ14 12.3 SD4-127
SD5

133 5 1/4" 2 7×φ16 6×φ14 15.5 SD5-130
140 5 1/2" 2 7×φ18 7×φ14 16.0 SD5-140
146 5 3/4" 2 8×φ18 7×φ14 16.5 SD5-146
152 6" 2 8×φ18 8×φ14 17.0 SD5-152
165 6 1/2" 2 8×φ18 8×φ16 19.0 SD5-165
SD6 152 6" 2 8×φ16 8×φ16 26.0 SD6-152
165 6 1/2" 2 8×φ18 8×φ16 28.0 SD6-165
178 7" 2 8×φ18 8×φ18 31.0 SD6-178
190 7 1/2" 3 9×φ18 9×φ16 34.0 SD6-190
203 8" 3 9×φ18 9×φ18 36.0 SD6-203
SD8

195 7 11/16 3 9×φ18 9×φ16 32.0 SD8-195
203 8" 3 9×φ18 9×φ18 41.0 SD8-203
216 8 1/2" 2 10×φ18 12×φ16 49.0 SD8-216
254 10" 3 11×φ18 17×φ16 71.0 SD8-254
305 12" 4 12×φ18 29×φ16 95.0 SD8-305
SD10

254 10" 3 12×φ18 20×φ16 108.0 SD10-254
305 12" 4 12×φ18 36×φ18 125.0 SD10-305
311 12 1/4" 4 12×φ18 36×φ16 130.0 SD10-311
318 12 1/2" 4 12×φ18 38×φ16 142.0 SD10-318
330 13" 4 16×φ18 42×φ16 155.0 SD10-330
SD12 305 12" 4 12×φ18 36×φ16 156.0 SD12-305
311 12 1/4" 4 12×φ18 36×φ16 168.0 SD12-311
330 13" 4 16×φ18 42×φ16 180.0 SD12-330
356 14" 4 16×φ19 48×φ16 191.0 SD12-356
381 15" 4 16×φ19 48×φ18 200.0 SD12-381







Detail photos:

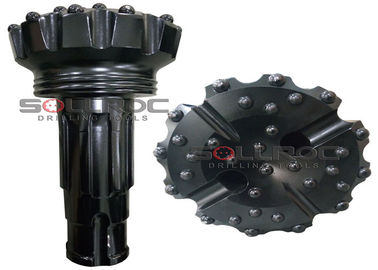

Mining DTH Drill Bit Black Color Full Size With Shank SD Series 0

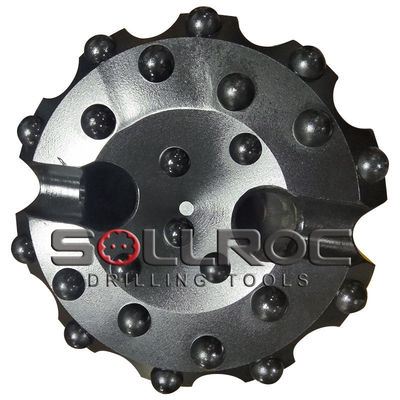

Mining DTH Drill Bit Black Color Full Size With Shank SD Series 1

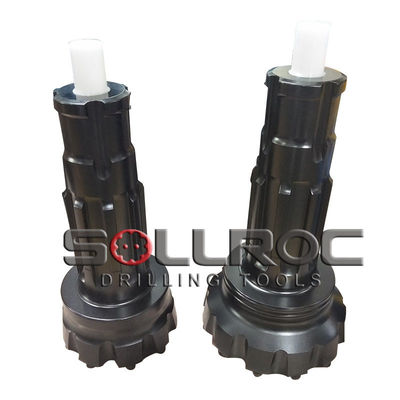

Mining DTH Drill Bit Black Color Full Size With Shank SD Series 2
