Product Details:
|
Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
---|---|---|---|
Product Name: | QL Series DTH Bit | Rock Formation: | Granite, Limestone, Quartz, Etc |
Shank: | DHD,Cop,QL,Mission,SD | Advantage: | Hign Abrasion Resistance |
Color: | Black Or As Request | Size: | 152mm 165mm 178mm 191mm |
Rock Hardness: | Granite, Limestone, Quartz, Etc | Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts |
Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry | Material: | Alloy Steel |
Surface Treatment: | Spray-Paint | Manufacturing Process: | Forging |
High Light: | QL80 DTH Drill Bits,Mining Carbide Buttons DTH Drill Bits,QL30 DTH Drill Bits |
QL30/QL40/QL50/QL60/QL80 DTH Drill Bits with Carbide Buttons for Mining
Product description
A Down the hole drilling is the most critical component on a drill rig, it is the most adaptable and may be utilized successfully in various ground conditions ranging from soft to medium to very hard,and it has numerous advantages over other options. The top Dth hammer system can provide satisfactory results in stiff uniform rock conditions for short holes, but they will most likely struggle in deep and soft ground with huge diameters.
QL Series DTH drill bit specification:
QL shank Bits | Bit Dia. | No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kgs) |
Part No. | |
mm | inch | ||||||
QL30 | 85 | 3 11/32" | 2 | 6×φ13 | 4×φ12 | 4.5 | QL30-85 |
90 | 3 1/2" | 2 | 6×φ14 | 4×φ12 | 4.7 | QL30-90 | |
95 | 3 3/4" | 2 | 6×φ14 | 4×φ13 | 4.9 | QL30-95 | |
100 | 3 7/8" | 2 | 8×φ12 | 6×φ12 | 5.0 | QL30-100 | |
105 | 4 1/8" | 2 | 8×φ13 | 6×φ12 | 5.5 | QL30-105 | |
QL40 | 105 | 4 1/8" | 2 | 6×φ14 | 5×φ13 | 9.0 | QL40-105 |
110 | 4 1/4" | 2 | 7×φ13 | 6×φ13 | 9.2 | QL40-110 | |
115 | 4 1/2" | 2 | 7×φ14 | 6×φ13 | 9.5 | QL40-115 | |
120 | 4 3/4" | 2 | 8×φ14 | 6×φ14 | 10.3 | QL40-120 | |
127 | 5 | 2 | 8×φ14 | 7×φ14 | 11.5 | QL40-127 | |
QL50 | 133 | 5 1/4" | 2 | 7×φ16 | 6×φ14 | 15.5 | QL50-130 |
140 | 5 1/2" | 2 | 7×φ18 | 7×φ14 | 16.0 | QL50-140 | |
146 | 5 3/4" | 2 | 8×φ18 | 7×φ14 | 16.5 | QL50-146 | |
152 | 6" | 2 | 8×φ18 | 8×φ14 | 17.0 | QL50-152 | |
165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 19.0 | QL50-165 | |
QL60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 25.0 | QL60-152 |
165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 27.0 | QL60-165 | |
178 | 7" | 2 | 8×φ18 | 8×φ18 | 28.5 | QL60-178 | |
190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 31.0 | QL60-190 | |
203 | 8" | 3 | 9×φ18 | 9×φ18 | 33.0 | QL60-203 | |
QL80 |
195 | 7 11/16 | 3 | 9×φ18 | 9×φ16 | 32.0 | QL80-195 |
203 | 8" | 3 | 9×φ18 | 9×φ18 | 41.0 | QL80-203 | |
216 | 8 1/2" | 2 | 10×φ18 | 12×φ16 | 49.0 | QL80-216 | |
254 | 10" | 3 | 11×φ18 | 17×φ16 | 71.0 | QL80-254 | |
305 | 12" | 4 | 12×φ18 | 29×φ16 | 95.0 | QL80-305 |
Bit Face Shape Selection:

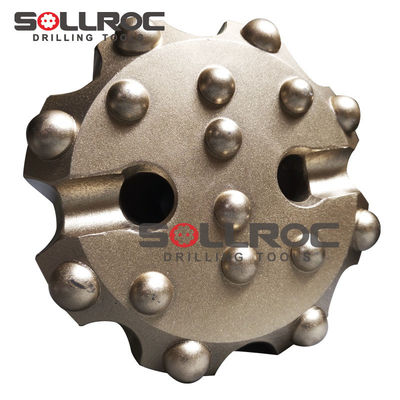

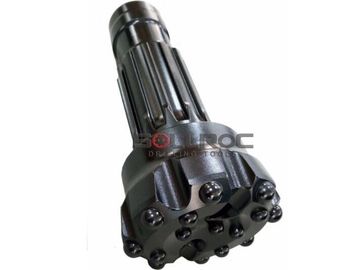

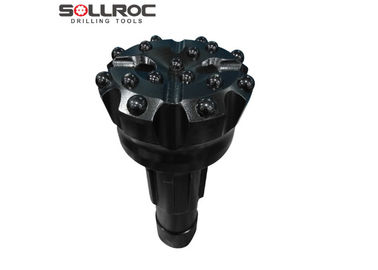

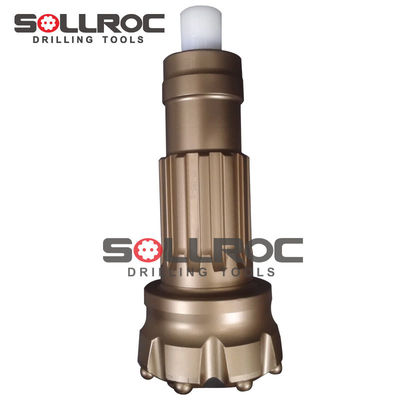

Detail photos:
