Product Details:
|
| Color: | Black Or You Wanted | Material: | Alloy Steel |
|---|---|---|---|
| Application: | Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well | Usage: | Geologic Exploration,gravel Stratu |
| Formation: | Complicated Gravel Formation | Quality: | Best |
| Name: | PR54 RC Bit | Manufacturing Process: | Forging |
| Port: | Shanghai/Guangzhou/ Beijing | ||
| High Light: | PR54 High Pressure RC Drill Bit,Thread Metzke RC Drill Bit,PR54 RC Bit |
||
PR54 High Pressure RC Drill Bit with Thread Metzke/Remet for Rock Drilling
Product Introduce:
The reverse circulation (RC) hammer is a simple non-electrical air motor that is driven by high-pressure air. An RC hammer exhausts the air down the outside splines of the percussion bit and then up its holes through the internal diameter of the hammer and the drill string to the surface
Reverse Circulation drilling, or RC drilling, is a method of drilling which uses dual wall drill rods that consist of an outer drill rod with an inner tube. These hollow inner tubes allow the drill cuttings to be transported back to the surface in a continuous, steady flow.
Adavantages:
| Diameter | No x Button diameter mm |
Button angle | Flushing holes | Shroud Dia mm | Weight (kg) |
Part No | ||
| mm | inch | Gauge Buttons | Front Buttons | |||||
| 136 | 5 3/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 134 | 19.0 | RC5.5-P54-136 |
| 140 | 5 1/2 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 138 | 19.3 | RC5.5-P54-140 |
| 143 | 5 5/8 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 141 | 19.5 | RC5.5-P54-143 |
| 146 | 5 3/4 | 8 x 16mm | 6x16+3x14 | 35 | 2 | 144 | 19.6 | RC5.5-P54-146 |
| Length (less bit) | 1294mm | |
| Weight (less bit) | 84.5kg | |
| External diamater | φ130mm | |
| Hole range | φ135-φ150 | |
| Connection thread | 4.5" Remet 4.5" Metzke |
|
| Working pressure | 1.5Mpa-3.5Mpa | |
| Air consumption | 1.7 Mpa | 16 m³/min |
| 2.4 Mpa | 22 m³/min | |
| 3.0 Mpa | 28 m³/min | |

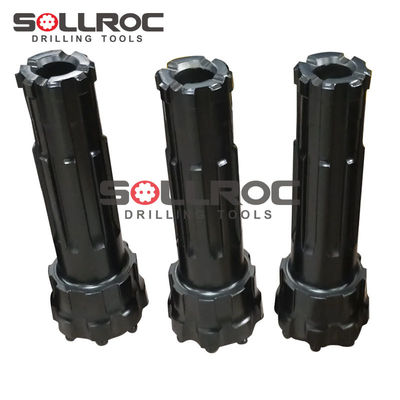

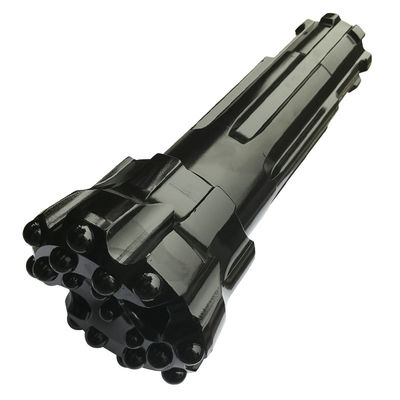

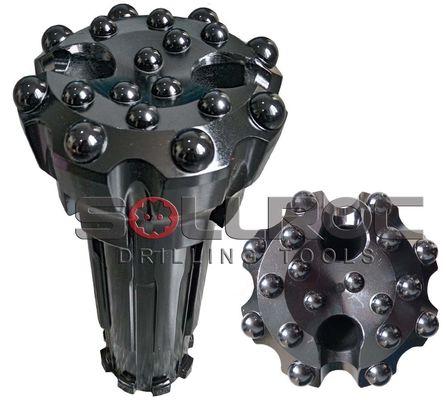

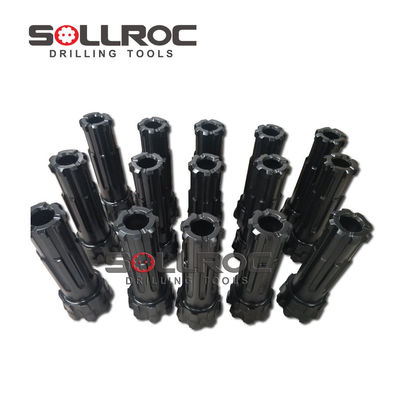

Detailed Photo:
About us:
SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.
Delivery Way:
By Air, By express or By Sea
