High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control

High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control
High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control
High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control

Large Image :  High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: rc Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month

High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control

Description
Color: Black Or You Wanted Material: Alloy Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Name: RC Bit Manufacturing Process: Forging
Port: Shanghai/Guangzhou/ Beijing
High Light:

138mm RC DTH Bit

,

PR40 RC Drill Bit

,

Ore Grade RC DTH Bit

High Air Pressure PR40 138mm RC DTH Bit with Black Color for Ore Grade Control



Adavantages:

1. Direct drilling cost reductions in the range of 25% to 40%.

2. Faster completion of drill programs with quicker delivery of results.

3. Reduced man-hours at the drill with decreased exposure to potential accidents.

4. Reduced contractor activity in the mine reduces mine support burden.

5. Indirect cost reductions gained from a simplified sampling process.

6. Requires less water than diamond drilling.



Product Introduce:

Reverse Circulation (RC) drilling is used to collect mineral and rock samples quickly and efficiently using a large rotary drill and air compressor. Reverse Circulation (or RC) drilling is one of the most frequently used methods of drilling used across the world as it is more cost effective and efficient then other methods of drilling. When compared to RAB (Rotary Air Blast) and diamond drilling, RC drilling seems to be somewhere in the middle when it comes to cost, time, quality of samples, technique and depth.



Specification:
Product specifications: PR40-138mm RC Bits
Diameter No x Button diameter mm Button angle Flusing holes Shroud Dia mm Weight(kgs) Part No
mm inch Gauge Buttons Front Buttons
124 4 7/8 8x14 8X13 35 2 122 14.3 PR40-124
127 5 8x14 8X14 35 2 125 14.7 PR40-127
133 5 1/4 8x16 10X14 35 2 131 15.2 PR40-133
138 5 4/9 8x16 6x16+3x14 35 2 136 15.8 PR40-138

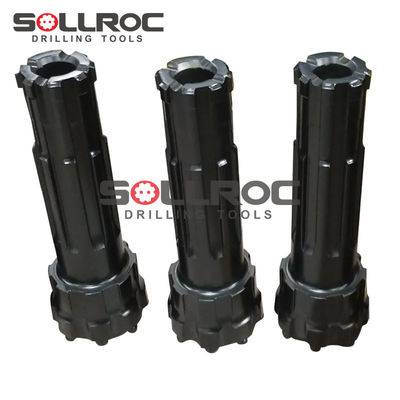

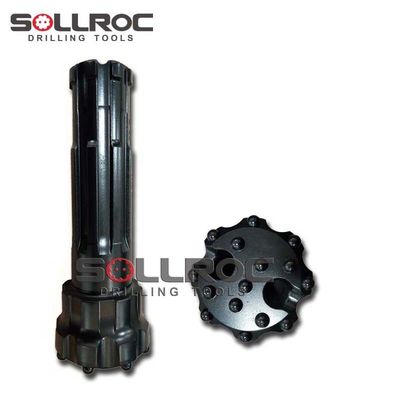

Detailed Photo:

High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control 0

High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control 1High Air Pressure PR40 138mm RC DTH Bit With Black Color For Ore Grade Control 2



About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.



Delivery Way:

By Air, By express or By Sea
