Mining Exploration Drilling Tools RC Hammer And RC Button Bit

Mining Exploration Drilling Tools RC Hammer And RC Button Bit
Mining Exploration Drilling Tools RC Hammer And RC Button Bit
Mining Exploration Drilling Tools RC Hammer And RC Button Bit Mining Exploration Drilling Tools RC Hammer And RC Button Bit Mining Exploration Drilling Tools RC Hammer And RC Button Bit Mining Exploration Drilling Tools RC Hammer And RC Button Bit Mining Exploration Drilling Tools RC Hammer And RC Button Bit

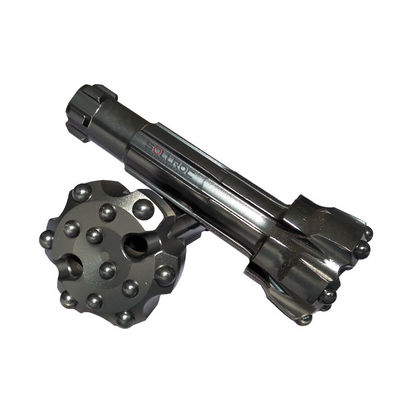

Large Image :  Mining Exploration Drilling Tools RC Hammer And RC Button Bit

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: rc Bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiate
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 15-22 days
Payment Terms: L/C, D/A, D/P, T/T, , MoneyGram
Supply Ability: 5000pcs per month
Contact Now

Mining Exploration Drilling Tools RC Hammer And RC Button Bit

Description
Color: Black Or You Wanted Material: Alloy Steel
Application: Hole Drilling In Mines, Hydrology And Water Well ,Geothermal Well Usage: Geologic Exploration,gravel Stratu
Formation: Complicated Gravel Formation Quality: Best
Name: RC Bit Manufacturing Process: Forging
Port: Shanghai/Guangzhou/ Beijing
High Light:

Mining Exploration Drilling RC Hammer

,

Mining Exploration RC Button Bit

,

SGS RC Button Bit

Mining Exploration Drilling Tools RC Hammer and RC Button Bit



Product Introduce:

Reverse Circulation (RC) drilling is used to collect mineral and rock samples quickly and efficiently using a large rotary drill and air compressor. Reverse Circulation (or RC) drilling is one of the most frequently used methods of drilling used across the world as it is more cost effective and efficient then other methods of drilling. When compared to RAB (Rotary Air Blast) and diamond drilling, RC drilling seems to be somewhere in the middle when it comes to cost, time, quality of samples, technique and depth.



Adavantages:

1. Manufactured using premium hardened metals for long life;

2. Maximum material recovery, up to 98%;
3. Direct drilling cost reductions in the range of 25% to 40%.

4. Faster completion of drill programs with quicker delivery of results.

5. Reduced man-hours at the drill with decreased exposure to potential accidents.

6. Reduced contractor activity in the mine reduces mine support burden.

7. Indirect cost reductions gained from a simplified sampling process



Specification:


RC bits Model RC3-E531 for shank RE531
Diameter

No. x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
86 3 3/8 6 x 12mm 5 x 12mm 35 2 84 6.0 RC3-E531-86
89 3 1/2 8 x 12mm 5 x 12mm 35 2 87 6.1 RC3-E531-89
95 3 3/4 8 x 12mm 6 x 12mm 35 2 93 6.3 RC3-E531-95
102 4 8 x 12mm 6 x 12mm 35 2 100 6.5 RC3-E531-102

RC bits Model RC3.5-Y for shank RC3.5Y
Diameter

No. x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
92 3 5/8 6 x 14mm 6 x 12mm 35 2 90 6.1 RC3.5Y-92
95 3 3/4 6 x 14mm 6 x 12mm 35 2 93 6.3 RC3.5Y-95

RC bits Model RC4-E004 for shank RE004
Diameter

No x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
114 4 1/2 8 x 14mm 8 x 13mm 35 2 112 11.8 RC4-E004-114
118 4 5/8 8 x 14mm 8 x 13mm 35 2 116 12.0 RC4-E004-118
121 4 3/4 8 x 14mm 8 x 13mm 35 2 119 12.4 RC4-E004-121
127 5 8 x 14mm 8 x 13mm 35 2 125 12.8 RC4-E004-127

RC bits Model RC4.5-E542 for shank RE542
Diameter

No x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
121 4 3/4 8 x 14mm 8 x 13mm 35 2 119 10.7 RC4.5-E542-121
124 4 7/8 8 x 14mm 8 x 13mm 35 2 122 10.9 RC4.5-E542-124
127 5 8 x 14mm 8 x 14mm 35 2 125 11.2 RC4.5-E542-127
130 5 1/8 8 x 16mm 8 x 14mm 35 2 128 11.5 RC4.5-E542-130

RC bits Model RC4.5-E543 for shank RE543
Diameter

No x Button diameter

mm

 Button angle Flushing holes Shroud Dia mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
124 4 7/8 8 x 14mm 8 x 13mm 35 2 122 11.0 RC4.5-E543-124
127 5 8 x 14mm 8 x 14mm 35 2 125 11.2 RC4.5-E543-127
130 5 1/8 8 x 16mm 8 x 14mm 35 2 128 11.4 RC4.5-E543-130
133 5 1/4 8 x 16mm 9 x 14mm 35 2 131 11.7 RC4.5-E543-133

RC bits Model RC5-E545 for shank RE545
Diameter

No x Button diameter

mm

 Button angle Flushing holes Shroud Dia mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
124 4 7/8 8 x 14mm 8 x 13mm 35 2 122 11.0 RC5-E545-124
127 5 8 x 14mm 8 x 14mm 35 2 125 11.2 RC5-E545-127
133 5 1/4 8 x 16mm 9 x 14mm 35 2 131 11.7 RC5-E545-133
136 5 3/8 8 x 16mm 6x16+3x14 35 2 134 12.0 RC5-E545-136

RC bits Model RC5-P40 for shank PR40
Diameter

No x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No
mm inch Gauge Button Front Button
124 4 7/8 8 x 14mm 8 x 13mm 35 2 122 14.5 RC5-P40-124
127 5 8 x 14mm 8 x 14mm 35 2 125 14.7 RC5-P40-127
130 5 1/8 8 x 16mm 8 x 14mm 35 2 128 14.9 RC5-P40-130
133 5 1/4 8 x 16mm 6x14+3x14 35 2 131 15.0 RC5-P40-133
138 5 7/16 8 x 16mm 6x16+3x14 35 2 136 15.8 RC5-P40-138
140 5 1/2 8 x 16mm 6x16+3x14 35 2 138 16.0 RC5-P40-140

RC bits Model RC5.5-P52/P52R for shank PR52/PR52R
Diameter

No x Button diameter

mm

 Button angle Flushing holes

Shroud Dia

mm

Weight

(kg)

 Part No.
mm inch Gauge Button Front Button
133 5 1/4 8 x 16mm 6x14+3x14 35 2 131 16.9 RC5.5-P52-133
136 5 3/8 8 x 16mm 6x16+3x14 35 2 134 17.1 RC5.5-P52-136
140 5 1/2 8 x 16mm 6x16+3x14 35 2 138 17.2 RC5.5-P52-140
143 5 5/8 8 x 16mm 6x16+3x14 35 2 141 17.3 RC5.5-P52-143

RC bits Model RC5.5-E547 for shank RE547
Diameter

No x Button diameter

mm

 Button angle Flushing holes Shroud Dia mm

Weight

(kg)

 Part No
mm inch Gauge Button Front Button
136 5 3/8 8 x 16mm 6x16+3x14 35 2 134 14.2 RC5.5-E547-136
140 5 1/2 8 x 16mm 6x16+3x14 35 2 138 14.5 RC5.5-E547-140
143 5 5/8 8 x 16mm 6x16+3x14 35 2 141 14.7 RC5.5-E547-143
146 5 3/4 8 x 16mm 6x16+3x14 35 2 144 15.0 RC5.5-E547-146

RC bits Model RC5.5-P54/P54R for shank PR54/PR54R
Diameter

No x Button diameter

mm

 Button angle Flushing holes Shroud Dia mm

Weight

(kg)

 Part No
mm inch Gauge Buttons Front Buttons
136 5 3/8 8 x 16mm 6x16+3x14 35 2 134 19.0 RC5.5-P54-136
140 5 1/2 8 x 16mm 6x16+3x14 35 2 138 19.3 RC5.5-P54-140
143 5 5/8 8 x 16mm 6x16+3x14 35 2 141 19.5 RC5.5-P54-143
146 5 3/4 8 x 16mm 6x16+3x14 35 2 144 19.6 RC5.5-P54-146

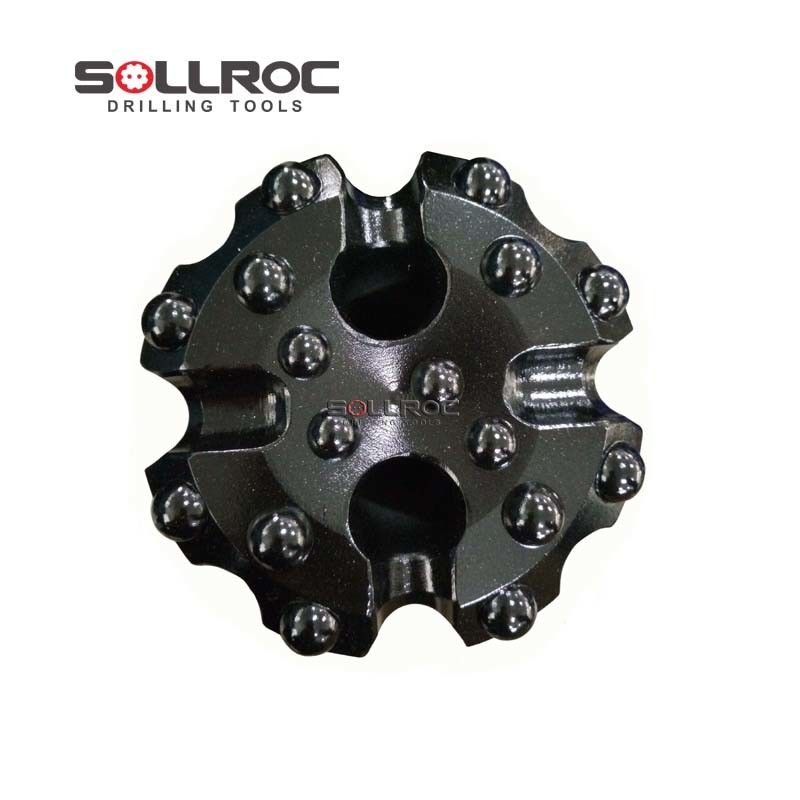

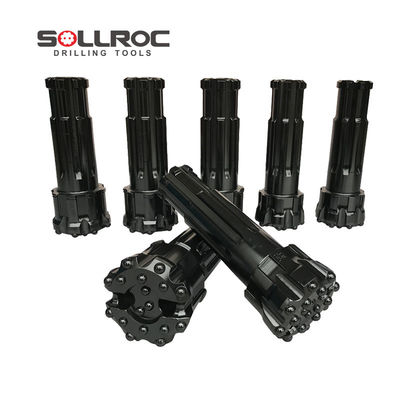

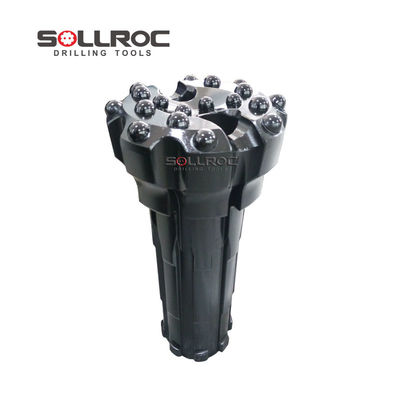

Detailed Photo:

Mining Exploration Drilling Tools RC Hammer And RC Button Bit 0

Mining Exploration Drilling Tools RC Hammer And RC Button Bit 1Mining Exploration Drilling Tools RC Hammer And RC Button Bit 2



About us:

SOLLROC Reverse Circulation drilling (RC) ,from size 3’’ to 5.5’’, is a technique of drilling that uses dual wall drill rods that consist of an outer drill rod with an inner tube. By using compressed air to extract rock fragments sample,the samples travel through rods to a sample splitter at surface, avoiding all contact between the samples and the borehole wall that allows samples to be retrieved with minimal contamination,which is mainly used in deep hole exploration and mining grade control.



Delivery Way:

By Air, By express or By Sea



Tag:

reverse circulation drill bits,

reverse circulation hammers,

reverse circulation drilling
