Product Details:
|
| Application: | Quarrying, Construction | Usage: | Geothermal Drilling |
|---|---|---|---|
| Product Name: | HD45A Hammer | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Advantage: | Best Quality | Color: | Black Or As Request |
| Rock Hardness: | Granite, Limestone, Quartz, Etc | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| Size: | 4 Inch | Air Pressure: | High |
| High Light: | 4in DTH Hammer,Dia99mm DTH Hammer,Well Drilling Down The Hole Hammer |
||
4'' DTH Hammer with External Diameter 99mm and 2 3/8'' API REG for Well Drilling
Product description:
A down-the-hole hammer (DTH hammer) is a tool that can be attached to the end of a drill string and inserted into a bore. It's a small jack hammer used to break hard rock into small particles that can be flushed away by the DTH hammer's air exhaust.It is one of the mainstream drilling technologies for mining and quarrying worldwide. Recent improvements have largely been aimed at making systems more fuel-efficient and at optimizing tool life.
Product Advantages:
1.Capable of drilling in almost all ground conditions.
2.Constant energy directly behind bit provides speed with less power loss and greater hole accuracy.
3.Rigid drill string improves hole alignment.
4.cost-efficient and environmentally friendly drilling
DTH Hammer specification:
HD45A hammer
| shank | HD45A |
| Length(less bit) | 1011mm |
| External diameter | 92mm/99mm (optional) |
| Top sub thread | API 2 3/8”REG |
| Weight(less bit) | 39kg |
| Hole range | 110mm-130mm |
| Working pressure | 1.0-2. 5Mpa(145-362.5psi) |
| Impact rate at 1.7Mpa | 30Hz |
| Recommended rotation speed | 22-35rpm |
HD45A bit specification
| For 4" hammer DTH bits shank |
Bit Dia. | No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kg) |
Part No. | |
| mm | inch | ||||||
| HD45A |
105 | 4 1/8" | 2 | 6×φ14 | 5×φ13 | 9.0 | DHD340-105 |
| 110 | 4 1/4" | 2 | 7×φ13 | 6×φ13 | 9.3 | DHD340-110 | |
| 115 | 4 1/2" | 2 | 7×φ14 | 6×φ13 | 10.0 | DHD340-115 | |
| 120 | 4 3/4" | 2 | 8×φ14 | 6×φ14 | 11.0 | DHD340-120 | |
| 127 | 5 | 2 | 8×φ14 | 7×φ14 | 12.0 | DHD340-127 | |

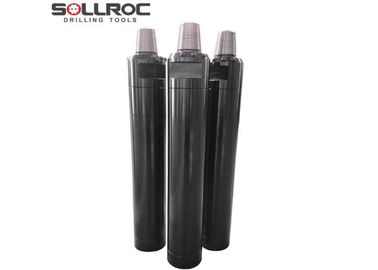

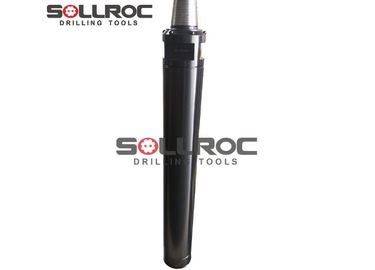

Detailed photos:
Application:
