SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling

SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling
SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling

Large Image :  SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SD Series bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: M60 DTH Bit Rock Formation: Granite, Limestone, Quartz, Etc
Shank: DHD,Cop,QL,Mission,SD Advantage: Hign Abrasion Resistance
Color: Black Or As Request Size: FULL
Rock Hardness: Granite, Limestone, Quartz, Etc Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts
Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry Name: SD Series Bit
Material: Alloy Steel Surface Treatment: Spray-Paint
High Light:

SD Series DTH Button Bits

,

Water Well Drilling DTH Button Bits

,

M60 High Air Pressure Drill Bits

SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling



Product description

A down-the-hole hammer provides a solution to the problem of removing hard rock barriers encountered in a bore. The DTH hammer resembles a small jack hammer. It screws onto the end of a drill string like a section of drill pipe. Like the jack hammers used above ground, it's air-powered with a high cyclic rate; unlike jack hammers above ground, it combines its fast-action hammer with a rotary, drilling action. This combined action rotates its chisel-like tip as it drives into the rock, breaking it into chips and dust. Because the DTH hammer is pneumatically powered, it has an air exhaust, which blows the chips and dust from the bore.



Product Advantages:

1. Performance in varying reservoirs
2. Penetration rates that can outstrip other systems.
3. Reduced costs.
4. Straighter/cleaner holes.
5. Wide range of hole sizes available, without high expenditure.
6. Quieter than other percussive systems.



SD Series DTH drill bit specification:


SD shank Bits Bit Dia. No.
Air Holes
Gauge
Buttons
Front
Buttons
Weight
(Kgs)
Part No.
mm inch
SD4

105 4 1/8" 2 6×φ14 5×φ13 9.0 SD4-105
110 4 1/4" 2 7×φ13 6×φ13 9.5 SD4-110
115 4 1/2" 2 7×φ14 6×φ13 9.8 SD4-115
120 4 3/4" 2 8×φ14 6×φ14 11.5 SD4-120
127 5 2 8×φ14 7×φ14 12.3 SD4-127
SD5

133 5 1/4" 2 7×φ16 6×φ14 15.5 SD5-130
140 5 1/2" 2 7×φ18 7×φ14 16.0 SD5-140
146 5 3/4" 2 8×φ18 7×φ14 16.5 SD5-146
152 6" 2 8×φ18 8×φ14 17.0 SD5-152
165 6 1/2" 2 8×φ18 8×φ16 19.0 SD5-165
SD6 152 6" 2 8×φ16 8×φ16 26.0 SD6-152
165 6 1/2" 2 8×φ18 8×φ16 28.0 SD6-165
178 7" 2 8×φ18 8×φ18 31.0 SD6-178
190 7 1/2" 3 9×φ18 9×φ16 34.0 SD6-190
203 8" 3 9×φ18 9×φ18 36.0 SD6-203
SD8

195 7 11/16 3 9×φ18 9×φ16 32.0 SD8-195
203 8" 3 9×φ18 9×φ18 41.0 SD8-203
216 8 1/2" 2 10×φ18 12×φ16 49.0 SD8-216
254 10" 3 11×φ18 17×φ16 71.0 SD8-254
305 12" 4 12×φ18 29×φ16 95.0 SD8-305
SD10

254 10" 3 12×φ18 20×φ16 108.0 SD10-254
305 12" 4 12×φ18 36×φ18 125.0 SD10-305
311 12 1/4" 4 12×φ18 36×φ16 130.0 SD10-311
318 12 1/2" 4 12×φ18 38×φ16 142.0 SD10-318
330 13" 4 16×φ18 42×φ16 155.0 SD10-330
SD12 305 12" 4 12×φ18 36×φ16 156.0 SD12-305
311 12 1/4" 4 12×φ18 36×φ16 168.0 SD12-311
330 13" 4 16×φ18 42×φ16 180.0 SD12-330
356 14" 4 16×φ19 48×φ16 191.0 SD12-356
381 15" 4 16×φ19 48×φ18 200.0 SD12-381


Detail photos:

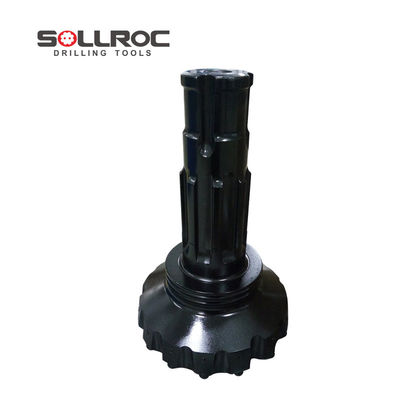

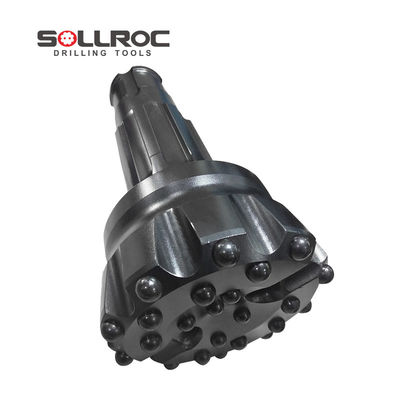

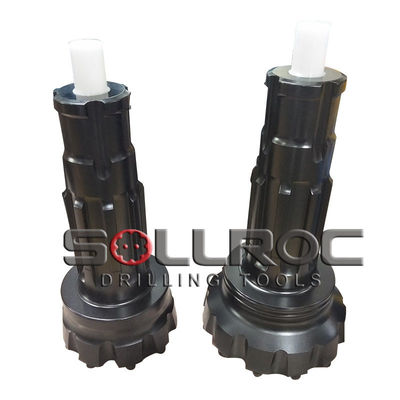

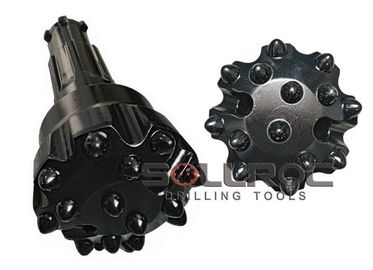

SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling 0

SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling 1

SD Series High Air Pressure Drill Bits DTH Button Bits For Water Well Drilling 2
