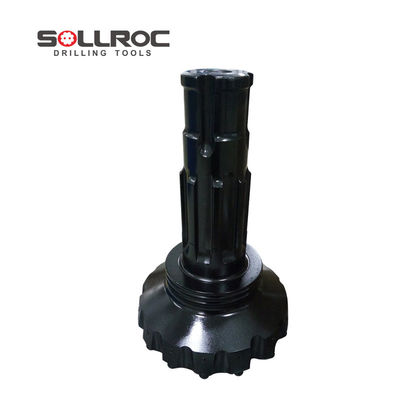

SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling

SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling
SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling

Large Image :  SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SD Series bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: SD6 DTH Bit Rock Formation: Granite, Limestone, Quartz, Etc
Shank: DHD,Cop,QL,Mission,SD Advantage: Hign Abrasion Resistance
Color: Black Or As Request Size: FULL
Rock Hardness: Granite, Limestone, Quartz, Etc Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts
Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry Name: SD Series Bit
Material: Alloy Steel Surface Treatment: Spray-Paint
High Light:

6in DTH Drill Bits

,

SD6 DTH Drill Bits

,

Hard Rock Drilling DTH Bits

SD6 High Air Pressure 6'' DTH Drill Bits with High Quality For Hard Rock Drilling



Product description

DTH hammer is a percussion system driving a piston inside hammer body with up and donw motion by compressed air and transmitting an intensive percussion energy to the bit to enable the drilling by crushing the rock. Drilling method by DTH hammer exerts high drilling performance especially for drilling hard rock and contributes for shortening work schedule. Hence, this method is widely utilized for foundation work, landslide prevention work, quarrying services, marine civil work, etc.



Product Advantages:

1. The most suitable hole diameter is 100–254 mm, in special applications can be up to 2M And the minimum can be around 50 mm as well.
2. Theoretically drilling depth is limited by back pressure only (can be up to several kilometers).
3. Adapt to hard rock and rock formation conditions (compared to top hammer).
4. Mainly use pressurized air for slag flushing, and sometimes air foam for special application.
5. Highly efficient in hard rock drilling (compared to the rotary drilling).
6. DTH drilling straightness is best in these three methods(rotary drilling, dth drilling and tophammer drilling)





SD Series DTH drill bit specification:





SD shank Bits Bit Dia. No.
Air Holes
Gauge
Buttons
Front
Buttons
Weight
(Kgs)
Part No.
mm inch
SD6 152 6" 2 8×φ16 8×φ16 26.0 SD6-152
165 6 1/2" 2 8×φ18 8×φ16 28.0 SD6-165
178 7" 2 8×φ18 8×φ18 31.0 SD6-178
190 7 1/2" 3 9×φ18 9×φ16 34.0 SD6-190
203 8" 3 9×φ18 9×φ18 36.0 SD6-203



other size bit

SD shank Bits Bit Dia. No.
Air Holes
Gauge
Buttons
Front
Buttons
Weight
(Kgs)
Part No.
mm inch
SD4

105 4 1/8" 2 6×φ14 5×φ13 9.0 SD4-105
110 4 1/4" 2 7×φ13 6×φ13 9.5 SD4-110
115 4 1/2" 2 7×φ14 6×φ13 9.8 SD4-115
120 4 3/4" 2 8×φ14 6×φ14 11.5 SD4-120
127 5 2 8×φ14 7×φ14 12.3 SD4-127
SD5

133 5 1/4" 2 7×φ16 6×φ14 15.5 SD5-130
140 5 1/2" 2 7×φ18 7×φ14 16.0 SD5-140
146 5 3/4" 2 8×φ18 7×φ14 16.5 SD5-146
152 6" 2 8×φ18 8×φ14 17.0 SD5-152
165 6 1/2" 2 8×φ18 8×φ16 19.0 SD5-165
SD6 152 6" 2 8×φ16 8×φ16 26.0 SD6-152
165 6 1/2" 2 8×φ18 8×φ16 28.0 SD6-165
178 7" 2 8×φ18 8×φ18 31.0 SD6-178
190 7 1/2" 3 9×φ18 9×φ16 34.0 SD6-190
203 8" 3 9×φ18 9×φ18 36.0 SD6-203
SD8

195 7 11/16 3 9×φ18 9×φ16 32.0 SD8-195
203 8" 3 9×φ18 9×φ18 41.0 SD8-203
216 8 1/2" 2 10×φ18 12×φ16 49.0 SD8-216
254 10" 3 11×φ18 17×φ16 71.0 SD8-254
305 12" 4 12×φ18 29×φ16 95.0 SD8-305
SD10

254 10" 3 12×φ18 20×φ16 108.0 SD10-254
305 12" 4 12×φ18 36×φ18 125.0 SD10-305
311 12 1/4" 4 12×φ18 36×φ16 130.0 SD10-311
318 12 1/2" 4 12×φ18 38×φ16 142.0 SD10-318
330 13" 4 16×φ18 42×φ16 155.0 SD10-330
SD12 305 12" 4 12×φ18 36×φ16 156.0 SD12-305
311 12 1/4" 4 12×φ18 36×φ16 168.0 SD12-311
330 13" 4 16×φ18 42×φ16 180.0 SD12-330
356 14" 4 16×φ19 48×φ16 191.0 SD12-356
381 15" 4 16×φ19 48×φ18 200.0 SD12-381


Detail photos:

SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling 0

SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling 1

SD6 High Air Pressure 6'' DTH Drill Bits For Hard Rock Drilling 2
