Borehole Drilling 6'' DTH Drill Bits With Tungsten Carbide Buttons Shank SD6

Borehole Drilling 6'' DTH Drill Bits With Tungsten Carbide Buttons Shank SD6
Borehole Drilling 6'' DTH Drill Bits With Tungsten Carbide Buttons Shank SD6 Borehole Drilling 6'' DTH Drill Bits With Tungsten Carbide Buttons Shank SD6 Borehole Drilling 6'' DTH Drill Bits With Tungsten Carbide Buttons Shank SD6 Borehole Drilling 6'' DTH Drill Bits With Tungsten Carbide Buttons Shank SD6

Large Image :  Borehole Drilling 6'' DTH Drill Bits With Tungsten Carbide Buttons Shank SD6

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: SD Series bit
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

Borehole Drilling 6'' DTH Drill Bits With Tungsten Carbide Buttons Shank SD6

Description
Application: Quarrying, Construction, Civil Engineering, Mining, Usage: Mining, Water Well Drilling, Geothermal Drilling
Product Name: SD6 DTH Bit Rock Formation: Granite, Limestone, Quartz, Etc
Shank: DHD,Cop,QL,Mission,SD Advantage: Hign Abrasion Resistance
Color: Black Or As Request Size: FULL
Rock Hardness: Granite, Limestone, Quartz, Etc Machine Type: Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts
Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry Name: SD Series Bit
Material: Alloy Steel Surface Treatment: Spray-Paint
High Light:

6in DTH Drill Bits

,

Borehole Drilling DTH Drill Bits

,

Tungsten Carbide Buttons SD6 DTH Bit

6'' DTH Drill Bits with Tungsten Carbide Buttons Shank SD6 for Borehole Drilling



Product description

Down-the-hole drilling is to drive the hammer which behind the drill bit by compressed air via the drill pipe. The piston strikes the bit directly, while the hammer external cylinder gives straight and stable guidance of the drill bit. This makes the impact of energy is not lost in joints and allowing for much deeper percussion drilling.

DTH is more suitable for the big hole of hard rock drilling, special for rock hardness over 200Mpa. However, for the rock below 200 MPa, it will not only energy waste, but also in low drilling efficiency, and serious wear to the drill bit. It’s because while the piston of the hammer strike, the soft rock cannot absorb the impact completely, which seriously lower the efficiency of drilling and slagging.



Product Advantages:

1. Better borehole quality and accuracy.
2. High performance drilling.
3. Adapt to hard rock and rock formation conditions (compared to top hammer).
4. Mainly use pressurized air for slag flushing, and sometimes air foam for special application.
5. Highly efficient in hard rock drilling (compared to the rotary drilling).
6. DTH drilling straightness is best in these three methods(rotary drilling, dth drilling and tophammer drilling)





SD Series DTH drill bit specification:

SD shank Bits Bit Dia. No.
Air Holes
Gauge
Buttons
Front
Buttons
Weight
(Kgs)
Part No.
mm inch
SD6 152 6" 2 8×φ16 8×φ16 26.0 SD6-152
165 6 1/2" 2 8×φ18 8×φ16 28.0 SD6-165
178 7" 2 8×φ18 8×φ18 31.0 SD6-178
190 7 1/2" 3 9×φ18 9×φ16 34.0 SD6-190
203 8" 3 9×φ18 9×φ18 36.0 SD6-203



other size bit

SD shank Bits Bit Dia. No.
Air Holes
Gauge
Buttons
Front
Buttons
Weight
(Kgs)
Part No.
mm inch
SD4

105 4 1/8" 2 6×φ14 5×φ13 9.0 SD4-105
110 4 1/4" 2 7×φ13 6×φ13 9.5 SD4-110
115 4 1/2" 2 7×φ14 6×φ13 9.8 SD4-115
120 4 3/4" 2 8×φ14 6×φ14 11.5 SD4-120
127 5 2 8×φ14 7×φ14 12.3 SD4-127
SD5

133 5 1/4" 2 7×φ16 6×φ14 15.5 SD5-130
140 5 1/2" 2 7×φ18 7×φ14 16.0 SD5-140
146 5 3/4" 2 8×φ18 7×φ14 16.5 SD5-146
152 6" 2 8×φ18 8×φ14 17.0 SD5-152
165 6 1/2" 2 8×φ18 8×φ16 19.0 SD5-165
SD6 152 6" 2 8×φ16 8×φ16 26.0 SD6-152
165 6 1/2" 2 8×φ18 8×φ16 28.0 SD6-165
178 7" 2 8×φ18 8×φ18 31.0 SD6-178
190 7 1/2" 3 9×φ18 9×φ16 34.0 SD6-190
203 8" 3 9×φ18 9×φ18 36.0 SD6-203
SD8

195 7 11/16 3 9×φ18 9×φ16 32.0 SD8-195
203 8" 3 9×φ18 9×φ18 41.0 SD8-203
216 8 1/2" 2 10×φ18 12×φ16 49.0 SD8-216
254 10" 3 11×φ18 17×φ16 71.0 SD8-254
305 12" 4 12×φ18 29×φ16 95.0 SD8-305
SD10

254 10" 3 12×φ18 20×φ16 108.0 SD10-254
305 12" 4 12×φ18 36×φ18 125.0 SD10-305
311 12 1/4" 4 12×φ18 36×φ16 130.0 SD10-311
318 12 1/2" 4 12×φ18 38×φ16 142.0 SD10-318
330 13" 4 16×φ18 42×φ16 155.0 SD10-330
SD12 305 12" 4 12×φ18 36×φ16 156.0 SD12-305
311 12 1/4" 4 12×φ18 36×φ16 168.0 SD12-311
330 13" 4 16×φ18 42×φ16 180.0 SD12-330
356 14" 4 16×φ19 48×φ16 191.0 SD12-356
381 15" 4 16×φ19 48×φ18 200.0 SD12-381


Detail photos:

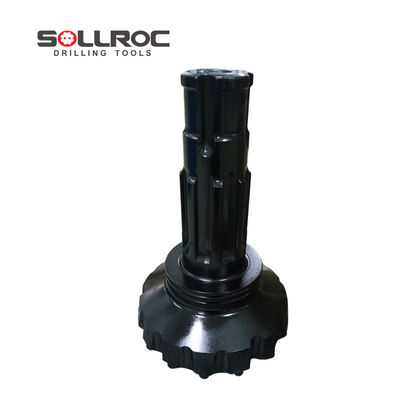

Borehole Drilling 6'' DTH Drill Bits With Tungsten Carbide Buttons Shank SD6 0

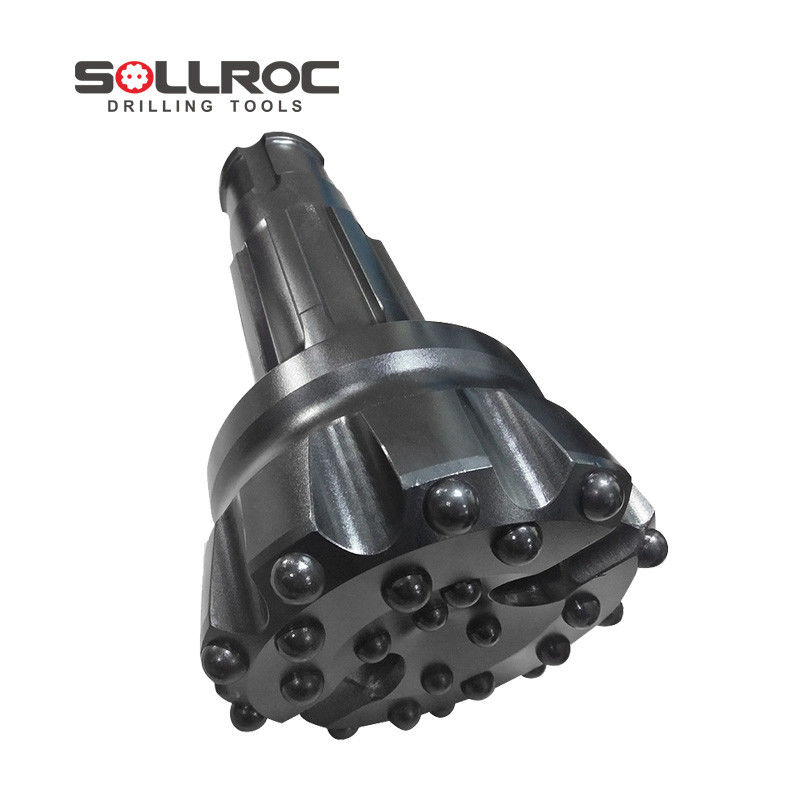

Borehole Drilling 6'' DTH Drill Bits With Tungsten Carbide Buttons Shank SD6 1

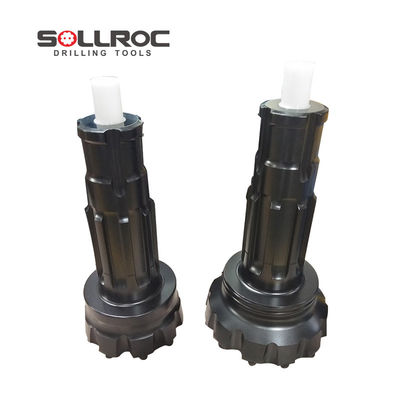

Borehole Drilling 6'' DTH Drill Bits With Tungsten Carbide Buttons Shank SD6 2

Face Shape Selection:
1. Drop Center Bit
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressures. Maximum hole deviation control.
2. Concave Face
The all-round application bit face specifically for medium hard and homogenerous rock formations. Good hole deviation control and good flushing capacity.
3. Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formations in applications with high air pressures. Good penetration rates an resistance to steel wash.
4. Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressures and good resistance to steel wash step gauge bit.
5. Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressures. It is the most resistance to steel wash, and may reduce the load and wear on the gauge buttons, but poor hole deviation control.
