Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | DHD360 DTH Bit | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | DHD,Cop,QL,Mission,SD | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Size: | FULL |
| Rock Hardness: | Granite, Limestone, Quartz, Etc | Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts |
| Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry | Name: | DHD360 |
| Material: | Alloy Steel | Surface Treatment: | Spray-Paint |
| High Light: | DHD360 DTH Bits,Mining DHD360 DTH Bits,Abrasion Resistant DTH Drill Bits |
||
DTH Drill Bits DHD360 DTH Bits for Water Well & Mining & Construction Works
Product description
Down-the-hole (DTH) drilling has made it easier for contractors to drill wells faster and more efficiently, and to transition from dirt boring to rock boring just by adding a compressor and hammer to the drill bit.
A down-the-hole hammer (DTH hammer) is a tool that can be attached to the end of a drill string and inserted into a bore. It's a small jack hammer used to break hard rock into small particles that can be flushed away by the DTH hammer's air exhaust
1. Better borehole quality and accuracy
2. High performance drilling
3. Safer drilling in sensitive formations
4. cost-efficient and environmentally friendly drilling
DHD360 DTH drill bit specification:
| For 6" hammer DTH bits shank |
Bit Dia. (mm) |
No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kg) |
Part No. | |
| mm | inch | ||||||
| DHD360/COP64 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 26.0 | DHD360-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 28.0 | DHD360-165 | |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 30.5 | DHD360-178 | |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 34.0 | DHD360-190 | |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 36.0 | DHD360-203 | |
6'' other shank bit specification:
| For 6" hammer DTH bits shank |
Bit Dia. (mm) |
No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kg) |
Part No. | |
| mm | inch | ||||||
| DHD360/COP64 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 26.0 | DHD360-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 28.0 | DHD360-165 | |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 30.5 | DHD360-178 | |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 34.0 | DHD360-190 | |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 36.0 | DHD360-203 | |
| SD6 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 26.0 | SD6-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 28.0 | SD6-165 | |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 31.0 | SD6-178 | |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 34.0 | SD6-190 | |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 36.0 | SD6-203 | |
| QL60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 25.0 | QL60-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 27.0 | QL60-165 | |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 28.5 | QL60-178 | |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 31.0 | QL60-190 | |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 33.0 | QL60-203 | |
| Mission60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 22.0 | M60-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 23.0 | M60-165 | |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 24.0 | M60-178 | |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 25.0 | M60-190 | |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 28.0 | M60-203 | |

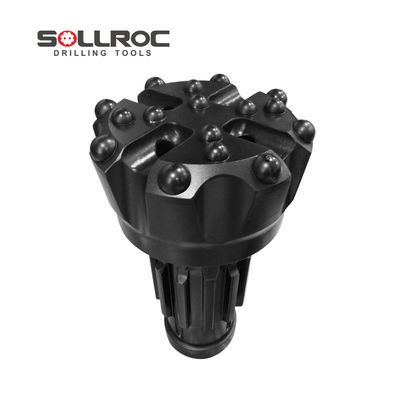

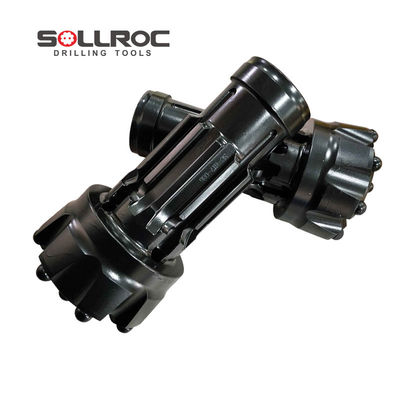

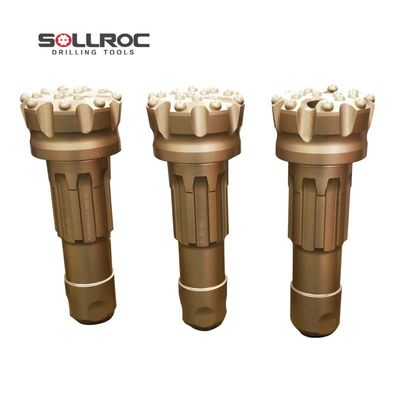

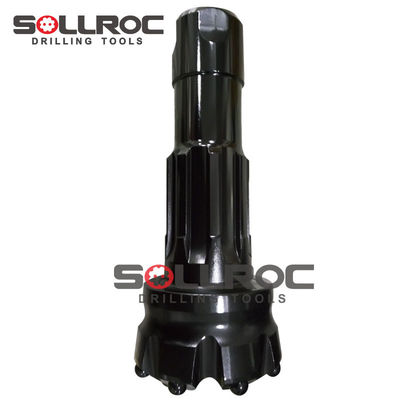

Detail photos:
Company informaiton
At sollroc, customer satisfaction is our top priority. Our sales team takes a proactive approach in meeting customers’ needs. We take the time to get to know you and learn about your operations so we can better assist you. We strive to meet customers’ needs by supplying the tools and equipment you need when you need them, providing product support, and following through with excellent customer service every step of the way.
