8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80

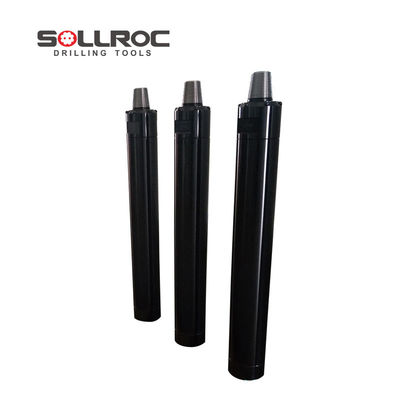

8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80

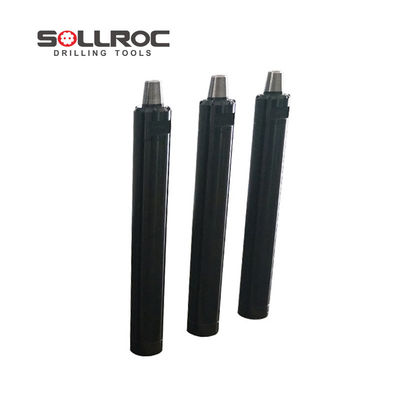

8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80
8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80 8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80 8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80 8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80 8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80 8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80

Large Image :  8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80

Product Details:
Place of Origin: China
Brand Name: SOLLROC
Certification: SGS
Model Number: 8''
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: negotiable
Packaging Details: Cartons + ply wood case (no plastic)
Delivery Time: 18 working days
Payment Terms: T/T,
Supply Ability: 10000 pieces/month

8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80

Description
Application: Quarrying, Construction Usage: Geothermal Drilling
Product Name: Dth Hammer Rock Formation: Granite, Limestone, Quartz, Etc
Advantage: Best Quality Color: Black Or As Request
Rock Hardness: Granite, Limestone, Quartz, Etc Use: Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry
Size: 8'' Hammer Air Pressure: High

8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80



Product Description:

In DTH drilling, the drill string rotates while the drilling hammer continuously strikes down into the rock. Inside the hammer, a piston powered by compressed air gives the drill bit its striking power. This combined with the rotational movement means the rock is crushed in a very efficient manner.

In very hard rock (and especially fractured hard rock), down-the-hole (DTH) drilling can be employed. In this case the hammer, applying repeated percussive pressure, is located just behind the drill bit inside the hole, unlike the open percussion drilling, where the hammer is on top of the drilling string.



Product Advantages:

1.In this design of the DTH hammer, the user can directly connect with the drill pipe without changing the diameter of the joint, thereby reducing the user's production costs.

2.The DTH hammer select the best raw materials and the most advanced processing technology, more stable performance and longer service life.

3.The internal structure of the DTH hammer is the simplest, most reliable, convenient to disassemble, less trouble, and easy to maintain. Since all components are heat treated, there are fewer failures and easier maintenance.

4.The DTH hammer with valveless air distribution is more reliable.

5.More efficient energy transfer, faster drilling, lower air consumption and lower fuel consumption.

6.Since the top connector is easy to remove, the drive chuck and external cylinder are connected by multiple threads.

7.Please note that the DTH hammer is designed to drill holes in various rock requirements. It is worth noting that when the piston of the DTH hammer is in contact with the drill, it will not lose the transmitted energy as the hammer deepens.



DTH Hammer Specification:

SD8 hammer specification

  DHD380
COP84
SD8 QL80
Length(less bit) 1492mm 1463mm 1465mm
Weight (less bit) 188.0kg 192.0kg 182.00kg
External diameter 180mm 180mm 185mm
Bits shank DHD380
COP84
SD8 QL80
Bits diameter 200-279mm
7 7/8" - 11"

200-279mm
7 7/8" - 11"
200-279mm
7 7/8" - 11"
Connection thread API 4 1/2" Reg API 4 1/2" Reg API 4 1/2" Reg
Air pressure 1.0-2.5Mpa 1.0-2.5Mpa 1.0-2.5Mpa



Other size hammer specification


Hammers
Bit Shank Connection Thread Suitable bit Working pressure Air consumption
1-3" Middle-low pressure DTH hammers
BR1
BR2
BR3
RD40 box
RD50 box
API 2 3/8" Reg

¢64-¢76mm
¢70-¢90mm
¢90-¢110mm
0.7-1.75Mpa
0.7-1.75Mpa
0.7-1.75Mpa
0.7Mpa 4.5m3/min
1.0Mpa 4m3/min
1.4Mpa 5m3/min
3" hammers DHD3.5
COP32/COP34
M30
API 2 3/8"Reg ¢90-¢110mm 1.0-1.5Mpa 1.0Mpa 4.5m3/min
1.5Mpa 9m3/min
4" hammers DHD340
COP44
QL40
SD4
M40
API 2 3/8"Reg ¢105-¢130mm 1.0-2.5Mpa 1.0Mpa 6m3/min
1.8Mpa 10m3/min
2.4Mpa 15m3/min
5" hammers DHD350
COP54
QL50
SD5
M50
API 2 3/8"Reg/API 3 1/2"Reg ¢130-¢156mm 1.0-2.5Mpa 1.0Mpa 9m3/min
1.8Mpa 15m3/min
2.4Mpa 23m3/min
6" hammers DHD360
COP64
QL60
SD6
M60
API 3 1/2"Reg ¢152-¢203mm 1.0-2.5Mpa 1.0Mpa 10m3/min
1.8Mpa 20m3/min
2.4Mpa 28.5m3/min
8" hammers DHD380
COP84
QL80
SD8
API 4 1/2"Reg ¢200-¢279mm 1.0-2.5Mpa 1.0Mpa 15m3/min
1.8Mpa 26m3/min
2.4Mpa 34m3/min
10" hammers SD10
NUMA100
API 6 5/8"Reg ¢254-¢330mm 1.0-2.5Mpa 1.0Mpa 22m3/min
1.8Mpa 40m3/min
2.4Mpa 55m3/min
12" hammers DHD1120
SD12
NUMA120
NUMA125
API 6 5/8"Reg ¢305-¢381mm 1.0-2.5Mpa 1.0Mpa 30m3/min
1.8Mpa 56m3/min
2.4Mpa 78m3/min



Detailed Photos:

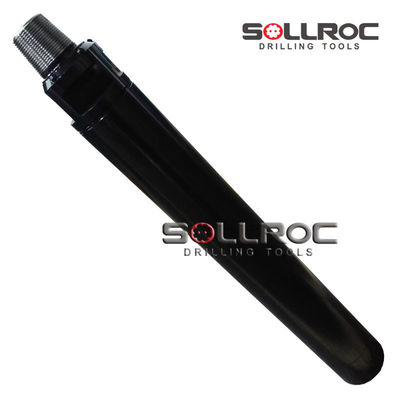

8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80 0

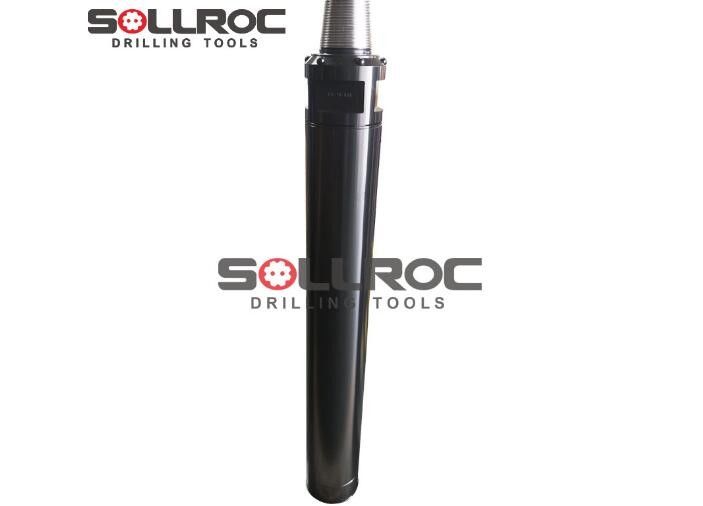

8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80 1



Application:

8inch DTH Rock Drilling Hammers for Blasting Drilling Cop84, DHD380, SD8, Ql80 2
