Product Details:
|
| Application: | Quarrying, Construction, Civil Engineering, Mining, | Usage: | Mining, Water Well Drilling, Geothermal Drilling |
|---|---|---|---|
| Product Name: | QL40 DTH Bit | Rock Formation: | Granite, Limestone, Quartz, Etc |
| Shank: | DHD,Cop,QL,Mission,SD | Advantage: | Hign Abrasion Resistance |
| Color: | Black Or As Request | Rock Hardness: | Granite, Limestone, Quartz, Etc |
| Machine Type: | Drilling Tool,Drilling Equipment,Downhole Tools,Mining Machine Parts | Use: | Well Drilling,Ore Mining,Coal Mining,Coal/Ore Mining,quarry |
| Name: | QL40 Bit | Material: | Alloy Steel |
| Surface Treatment: | Spray-Paint | ||
| High Light: | 110mm DTH Drill Bits,135mm DTH Drill Bits,DTH Drill Bits With Carbide Buttons |
||
QL40 110mm-135mm DTH Drill Bits with Carbide Buttons for Water Well Drilling
Product description
DTH hammer and dth bit are common used in the mining construction,and geothermal industries.They are particularly use for drilling deep hole quickly and efficiently. They are also used in drilling for geothermal energy and in oil and gas exploration.
DTH bit is the tool that is attached to the end of the DTH hammer.It is responsible for cutting into the rock surface and breaking up the material. DTH bit come in various sizes and shapes,depending on the type of material being drilled and the desired hole size.Some common DTH bit types include concave,flat and convex.
1. Reduced risk of getting stuck in fractured and faulted rock conditions.
2. Simplicity of operation and maintenance.
3. Reduction in the time of washing off well.
4. Straighter/cleaner holes.
5. Wide range of hole sizes available, without high expenditure.
6. Quieter than other percussive systems.
QL40 DTH drill bit specification:
| QL shank Bits | Bit Dia. | No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kgs) |
Part No. | |
| mm | inch | ||||||
| QL40 | 105 | 4 1/8" | 2 | 6×φ14 | 5×φ13 | 9.0 | QL40-105 |
| 110 | 4 1/4" | 2 | 7×φ13 | 6×φ13 | 9.2 | QL40-110 | |
| 115 | 4 1/2" | 2 | 7×φ14 | 6×φ13 | 9.5 | QL40-115 | |
| 120 | 4 3/4" | 2 | 8×φ14 | 6×φ14 | 10.3 | QL40-120 | |
| 127 | 5 | 2 | 8×φ14 | 7×φ14 | 11.5 | QL40-127 | |
QL series other size bit specification
| QL shank Bits | Bit Dia. | No. Air Holes |
Gauge Buttons |
Front Buttons |
Weight (Kgs) |
Part No. | |
| mm | inch | ||||||
| QL30 | 85 | 3 11/32" | 2 | 6×φ13 | 4×φ12 | 4.5 | QL30-85 |
| 90 | 3 1/2" | 2 | 6×φ14 | 4×φ12 | 4.7 | QL30-90 | |
| 95 | 3 3/4" | 2 | 6×φ14 | 4×φ13 | 4.9 | QL30-95 | |
| 100 | 3 7/8" | 2 | 8×φ12 | 6×φ12 | 5.0 | QL30-100 | |
| 105 | 4 1/8" | 2 | 8×φ13 | 6×φ12 | 5.5 | QL30-105 | |
| QL40 | 105 | 4 1/8" | 2 | 6×φ14 | 5×φ13 | 9.0 | QL40-105 |
| 110 | 4 1/4" | 2 | 7×φ13 | 6×φ13 | 9.2 | QL40-110 | |
| 115 | 4 1/2" | 2 | 7×φ14 | 6×φ13 | 9.5 | QL40-115 | |
| 120 | 4 3/4" | 2 | 8×φ14 | 6×φ14 | 10.3 | QL40-120 | |
| 127 | 5 | 2 | 8×φ14 | 7×φ14 | 11.5 | QL40-127 | |
| QL50 | 133 | 5 1/4" | 2 | 7×φ16 | 6×φ14 | 15.5 | QL50-130 |
| 140 | 5 1/2" | 2 | 7×φ18 | 7×φ14 | 16.0 | QL50-140 | |
| 146 | 5 3/4" | 2 | 8×φ18 | 7×φ14 | 16.5 | QL50-146 | |
| 152 | 6" | 2 | 8×φ18 | 8×φ14 | 17.0 | QL50-152 | |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 19.0 | QL50-165 | |
| QL60 | 152 | 6" | 2 | 8×φ16 | 8×φ16 | 25.0 | QL60-152 |
| 165 | 6 1/2" | 2 | 8×φ18 | 8×φ16 | 27.0 | QL60-165 | |
| 178 | 7" | 2 | 8×φ18 | 8×φ18 | 28.5 | QL60-178 | |
| 190 | 7 1/2" | 3 | 9×φ18 | 9×φ16 | 31.0 | QL60-190 | |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 33.0 | QL60-203 | |
| QL80 |
195 | 7 11/16 | 3 | 9×φ18 | 9×φ16 | 32.0 | QL80-195 |
| 203 | 8" | 3 | 9×φ18 | 9×φ18 | 41.0 | QL80-203 | |
| 216 | 8 1/2" | 2 | 10×φ18 | 12×φ16 | 49.0 | QL80-216 | |
| 254 | 10" | 3 | 11×φ18 | 17×φ16 | 71.0 | QL80-254 | |
| 305 | 12" | 4 | 12×φ18 | 29×φ16 | 95.0 | QL80-305 | |

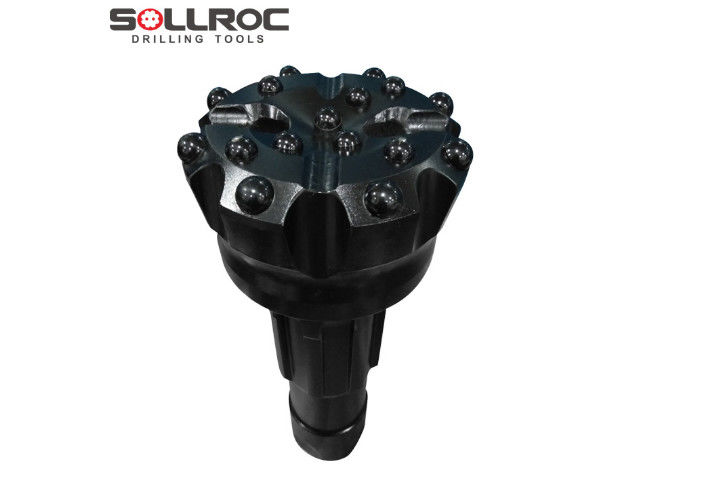

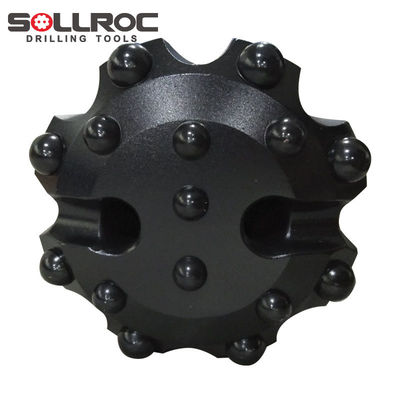

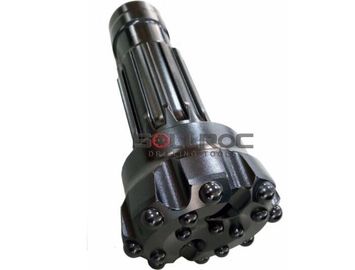

Detail photos:
