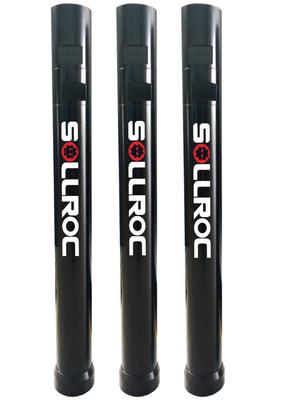

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling
3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

Large Image :  3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

Product Details:
Place of Origin: Hunan, China
Brand Name: SOLLROC
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: $1,000
Contact Now

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling

Description
Weight: 29 Kg Material: Carburized Steel
Hammer Size: 3 Inch Thread: 3'' Remet
External Diameter: 81mm Length: 1069mm
Hole Range: 84-105mm Air Pressure: High Air Pressure
Working Pressure: 1.5-3.5Mpa Impact Rate: 30HZ At 2.4Mpa
Rotation Speed: 25-40r/min Air Consumption: 7-14 M³/min
Bit Shank: SRC531 Connection Thread: 3'' Remet
Machine Type: Drilling Tool
Highlight:

3 inch Down The Hole Hammer

,

1069mm Length Down The Hole Hammer

,

81mm External Diameter Down The Hole Hammer

High Air Pressure SRC531 RC Reverse Circulation Hammer
Company Introduction
  • Our factory has specialized in manufacturing drilling tools and spare parts for over 10 years
  • We utilize advanced technology and equipment
  • Our technicians have more than 13 years of professional experience
Product Introduction

Reverse circulation drilling efficiently collects uncontaminated samples by transporting them through a hollow pipe system. This method prevents sample contamination from surface materials, ensuring accurate geological analysis.

Technical Specifications
Length (less bit) Weight (less bit) External Diameter Bit Shank Hole Range Connection Thread
1069mm 29.0kg 81mm SRC531 84-100 3''Remet
Working Pressure Impact Rate at 2.4Mpa Recommended Rotation Speed Air Consumption
1.5-3.5Mpa 30HZ 25-40r/min 1.7Mpa: 7 m³/min 2.4Mpa: 10 m³/min 3.0Mpa: 14 m³/min
Product Advantages
  • Reduces overall drilling costs by up to 40% compared to conventional methods
  • Delivers faster results with quick completion of drilling process
  • Safe operation requiring fewer man hours
  • Lower water consumption than other mining methods
  • Simple and easy operation
  • Efficient sample organization with depth and location tracking for precise mineral deposit identification
3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 0 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 1
Delivery & Packaging

Available shipping methods: By sea, by air, or by express

3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 2 3 inch Down The Hole Hammer with 1069mm Length and 81mm External Diameter for Efficient Drilling 3
Packaging Options
  • Plywood cases
  • Plywood cases with pallet

Tag:
