3.5inch Carbon Steel High Performance RC Hammer for Well Drilling and Mining

Large Image : 3.5inch Carbon Steel High Performance RC Hammer for Well Drilling and Mining

Product Details:

Place of Origin:	Hunan, China
Brand Name:	Sollroc

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	$1,500

Contact Now

3.5inch Carbon Steel High Performance RC Hammer for Well Drilling and Mining

Description

Weight:	44kg	Material:	Carbon Steel
Hammer Size:	3.5inch	Outer Diameter:	94mm
Hole Range:	95-115mm	Bit Diameter:	94mm
Bit Diameter (inch):	3"	Working Pressure:	1.5-3.5Mpa
Max Depth:	500 Metres	Button Shape:	Ballistic/semi-ballistic/spherical
Processing Type:	Forging	Formation Type:	Complicated Gravel Formation
Drilling Method:	Reverse Circulation	Sample Collection:	Compressed Air
Drilling Speed:	Fast Completion
Highlight:	3.5inch RC Hammer , Carbon Steel RC Hammer , High Performance RC Hammer

Sollroc Reverse Circulation SRC3.5Y RC Hammers for Mining Well Drilling

Product Overview

The reverse circulation drilling method can reach depths of 500 metres. This system uses a pneumatic hammer device to extract rock samples, which are then transported to the surface via compressed air. Samples are collected in marked bags within the machine, allowing for multiple samples to be analyzed with precise depth and location tracking.

Technical Specifications

Item	Bit Dia (mm)	Bit Dia (inch)	Weight (kg)	Hole Range	Working Pressure
SRC3.5-Y	94mm	3"	44.0kg	φ98-φ115	1.5-3.5Mpa

Key Features

Reduces overall drilling costs by up to 40% compared to conventional methods
Delivers faster results with rapid completion of drilling processes
Enhanced safety with reduced manpower requirements
Lower water consumption than alternative mining methods
Simple and efficient operation
Precise sample tracking with depth and location documentation

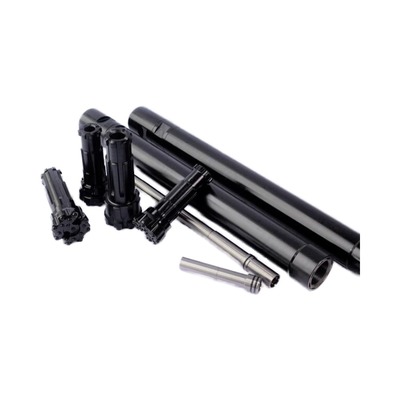

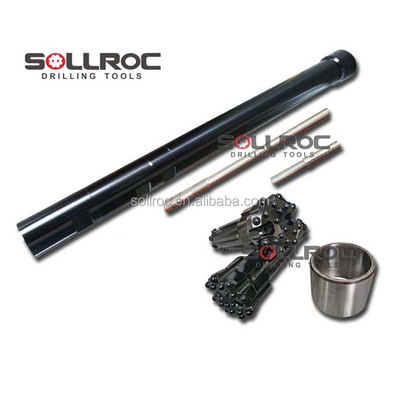

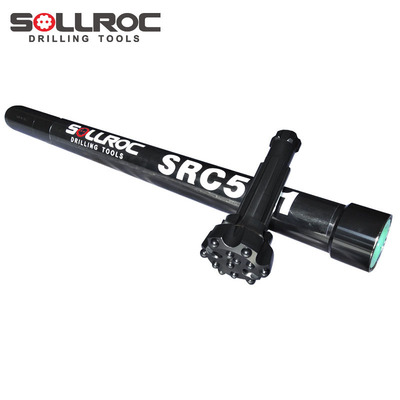

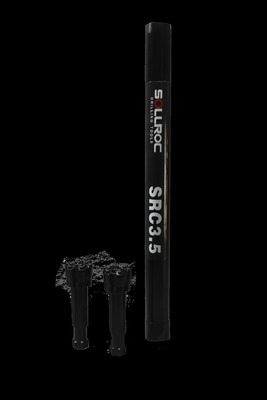

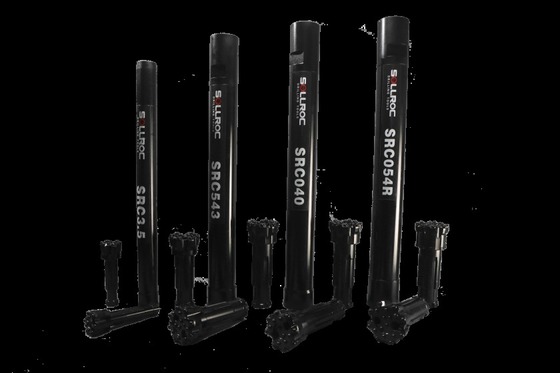

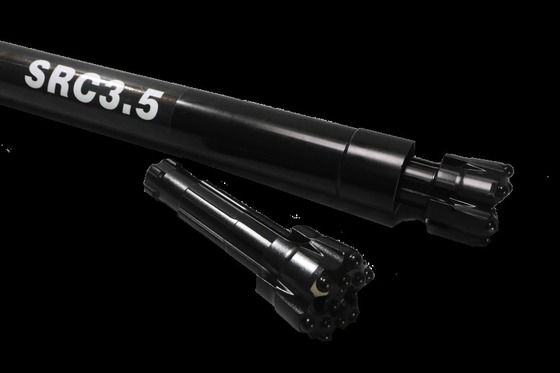

Product Images

Delivery Information

Standard Lead Time: 15-25 days
Express Delivery (when in stock): 3-5 days

Shipping & Packaging

Shipping Methods: By Air, By Sea, or By Express
Packaging: Plywood cases with pallet
